Casdoor is built on OAuth and uses tokens for user authentication and authorization.

Access token and ID token​

In Casdoor, access_token and id_token are the same. Both contain the same JWT payload (user info and claims). This design keeps token handling simple.

This approach means:

  • Both tokens contain the same user information and custom claims
  • Both tokens can be used interchangeably for authentication and authorization
  • The token format and expiration settings apply to both tokens equally
  • You cannot configure separate claims for access_token and id_token

Token fields​

Casdoor tokens include these fields:

  • Owner
  • Name
  • CreatedTime
  • Application
  • Organization
  • User
  • Code
  • AccessToken
  • ExpireIn (Токени закінчуються через години)
  • Scope (Обсяг авторизації)
  • TokenType (наприклад, тип Bearer)

Token lifecycle and invalidation​

When a user signs in, Casdoor issues an access token and a refresh token. The access token is used for API authentication; the refresh token is used to obtain new access tokens without re-authenticating.

On SSO logout, Casdoor invalidates tokens by setting ExpiresIn to 0 or a negative value. The token introspection and refresh endpoints check this field and reject tokens with ExpiresIn <= 0, so refresh tokens cannot be used after logout. This gives full session termination across all token types.

Token format options​

When issuing JWTs, choose among four formats:

  • JWT
  • JWT-Empty
  • JWT-Custom
  • JWT-Standard

The token format options behave as follows:

  • JWT: includes all User fields in the token payload
  • JWT-Empty: includes only non-empty User fields

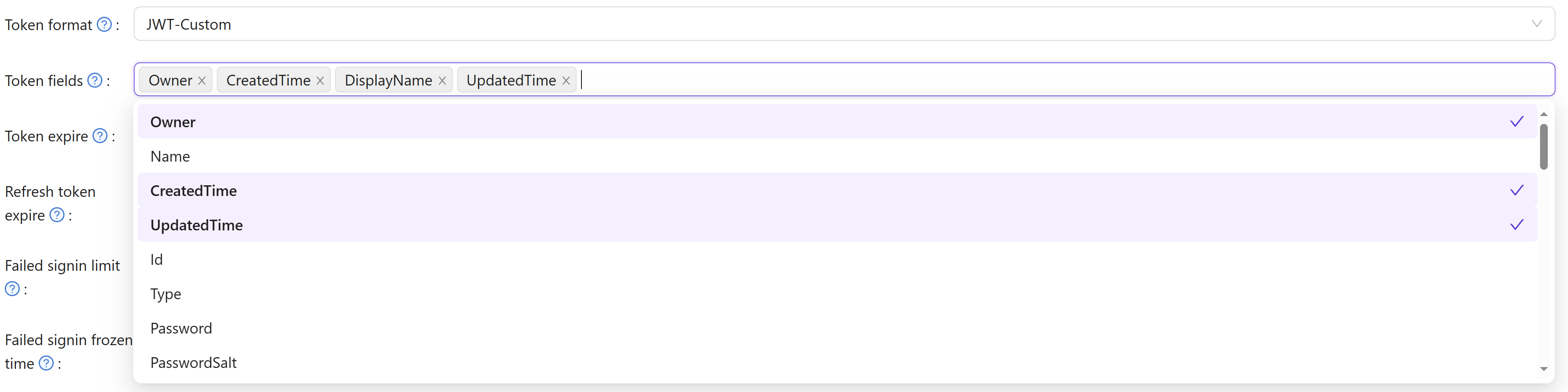

  • JWT-Custom: includes the custom User Token fields you select (choose attributes in the Token fields)
  • JWT-Standard: includes standard OIDC claims (email, phone, gender, address) in OIDC-compliant format
інформація

Only JWT-Standard produces an OIDC-compliant address claim. In JWT, JWT-Empty, and JWT-Custom formats the address field is included as a raw []string array (the user's Address property), which does not conform to the OIDC specification. If your application parses the address claim as an object, use the JWT-Standard token format.

OIDC Address Claim​

The OIDC specification defines the address claim as a JSON object with the following fields:

FieldDescription
formattedFull mailing address, formatted for display
street_addressStreet address component (may include house number, street name, P.O. box, etc.)
localityCity or locality
regionState, province, prefecture, or region
postal_codeZip code or postal code
countryCountry name

How Casdoor maps user data to the address claim​

Casdoor stores address information in two separate user fields:

  • Location (string): A general location string (e.g., "New York"). This field is used as the plain-string address value returned by the /api/userinfo endpoint when the address scope is requested.
  • Address (array of strings): An array of address-line strings (e.g., ["123 Main St", "Anytown, NY 12345", "USA"]). This field is the source for the OIDC-compliant address claim in JWT-Standard tokens.

JWT-Standard address claim​

When the address scope is requested and the JWT-Standard format is used, Casdoor returns the following object in the token:

{
  "address": {
    "street_address": "123 Main St\nAnytown, NY 12345\nUSA",
    "formatted": "",
    "locality": "",
    "region": "",
    "postal_code": "",
    "country": ""
  }
}

The street_address field contains the user's Address array entries joined with newlines. The remaining OIDC address sub-fields (formatted, locality, region, postal_code, country) are currently empty because Casdoor stores the entire address as free-form lines in the Address array rather than in per-component fields.

Non-standard formats (JWT, JWT-Empty, JWT-Custom)​

In JWT, JWT-Empty, and JWT-Custom token formats, the address field is the raw Address property of the user object — a JSON array of strings — not an OIDC address object:

{
  "address": ["123 Main St", "Anytown, NY 12345", "USA"]
}

OIDC clients that expect the address claim to be a JSON object (per the OIDC spec) will fail to parse this. Switch to JWT-Standard if you need a spec-compliant address claim in the token.

JWT-Custom

Standard OIDC Claims​

All JWT token formats include these standard OpenID Connect claims in the payload:

  • sub - Subject identifier (unique user ID)
  • email - User's email address
  • email_verified - Boolean indicating whether the email has been verified by Casdoor
  • name or preferred_username - User's display name
  • picture or avatar - User's avatar URL

The email_verified claim enables external applications using Casdoor as an identity provider to determine email verification status directly from the token without additional API calls.

Custom Token Attributes​

With JWT-Custom format, define custom attributes and their data types. Each attribute has a Type field that controls how values are included in the JWT:

  • Array: The attribute value will always be returned as an array, even if it contains a single element. This ensures compatibility with OIDC clients that expect array types for fields like roles, groups, or permissions.
  • String: The attribute value will be returned as a single string (the first element if multiple values exist).

Empty attributes are automatically omitted from the token to keep the payload clean. When configuring attributes for roles, groups, or permissions, using the Array type is recommended for better OIDC compliance and compatibility with systems like Rancher and Keycloak.
