Jenkins (OIDC)

Use Casdoor as the OIDC identity provider for Jenkins so users sign in with their Casdoor accounts.

Terms: CASDOOR_HOSTNAME — Casdoor server URL; JENKINS_HOSTNAME — Jenkins server URL.

Step 1: Deploy Casdoor and Jenkins​

Deploy Casdoor and Jenkins. Then:

  1. Set the Jenkins URL (Manage Jenkins -> Configure System -> Jenkins Location) to JENKINS_HOSTNAME. Jenkins URL

  2. Ensure that Casdoor can be logged in and used normally.

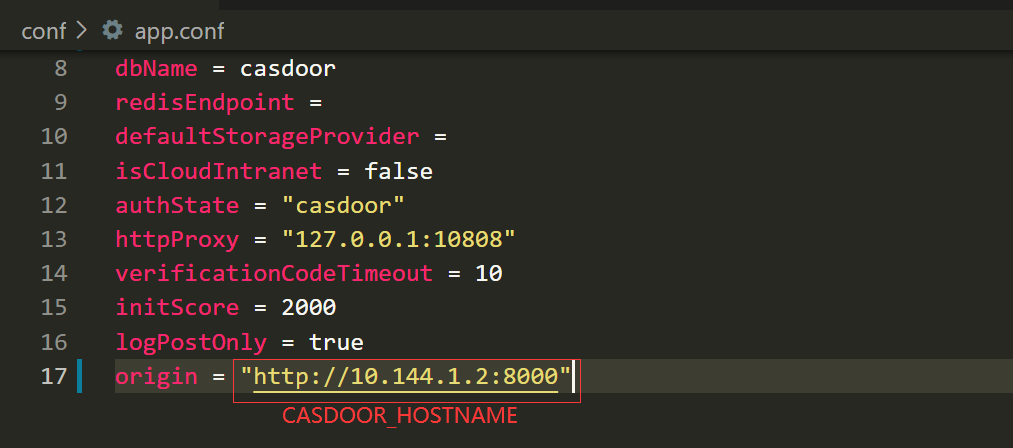

  3. Set Casdoor's origin value (conf/app.conf) to CASDOOR_HOSTNAME. Casdoor conf

Step 2: Configure the Casdoor application​

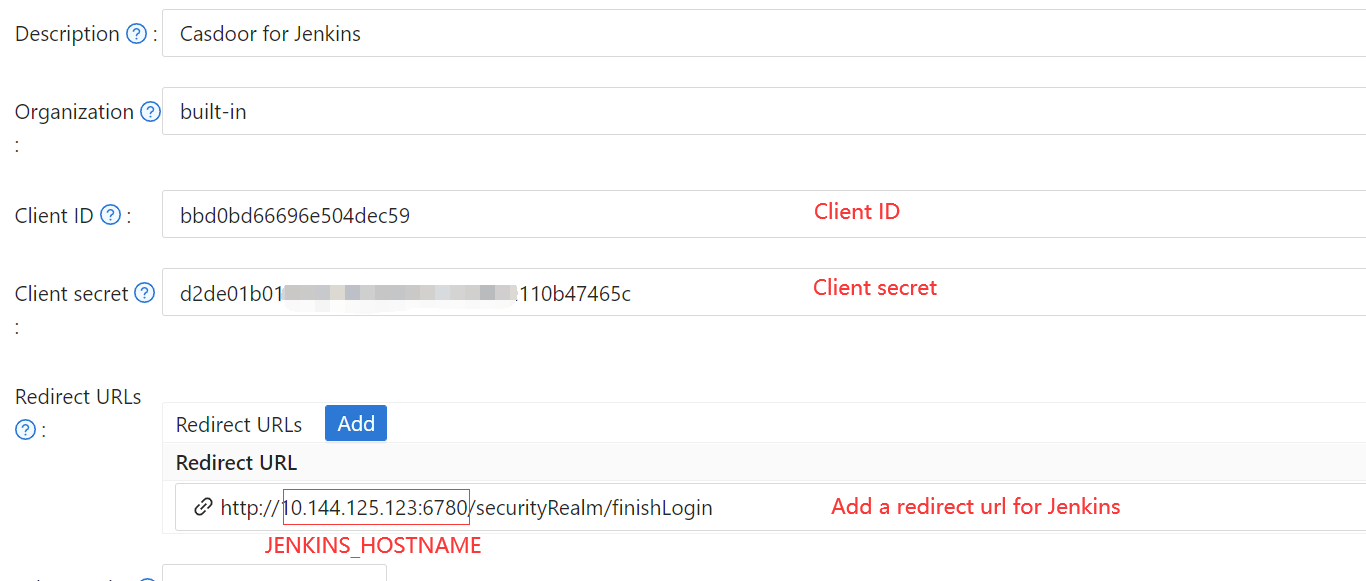

  1. Create or edit a Casdoor application.
  2. Add redirect URL: http://JENKINS_HOSTNAME/securityRealm/finishLogin.
  3. Add providers as needed. Note the Client ID and Client secret from the application page.

OIDC discovery URL: http://CASDOOR_HOSTNAME/.well-known/openid-configuration

Casdoor Application Setting

Step 3: Configure Jenkins​

Install the OpenId Connect Authentication plugin (Jenkins does not support OIDC by default).

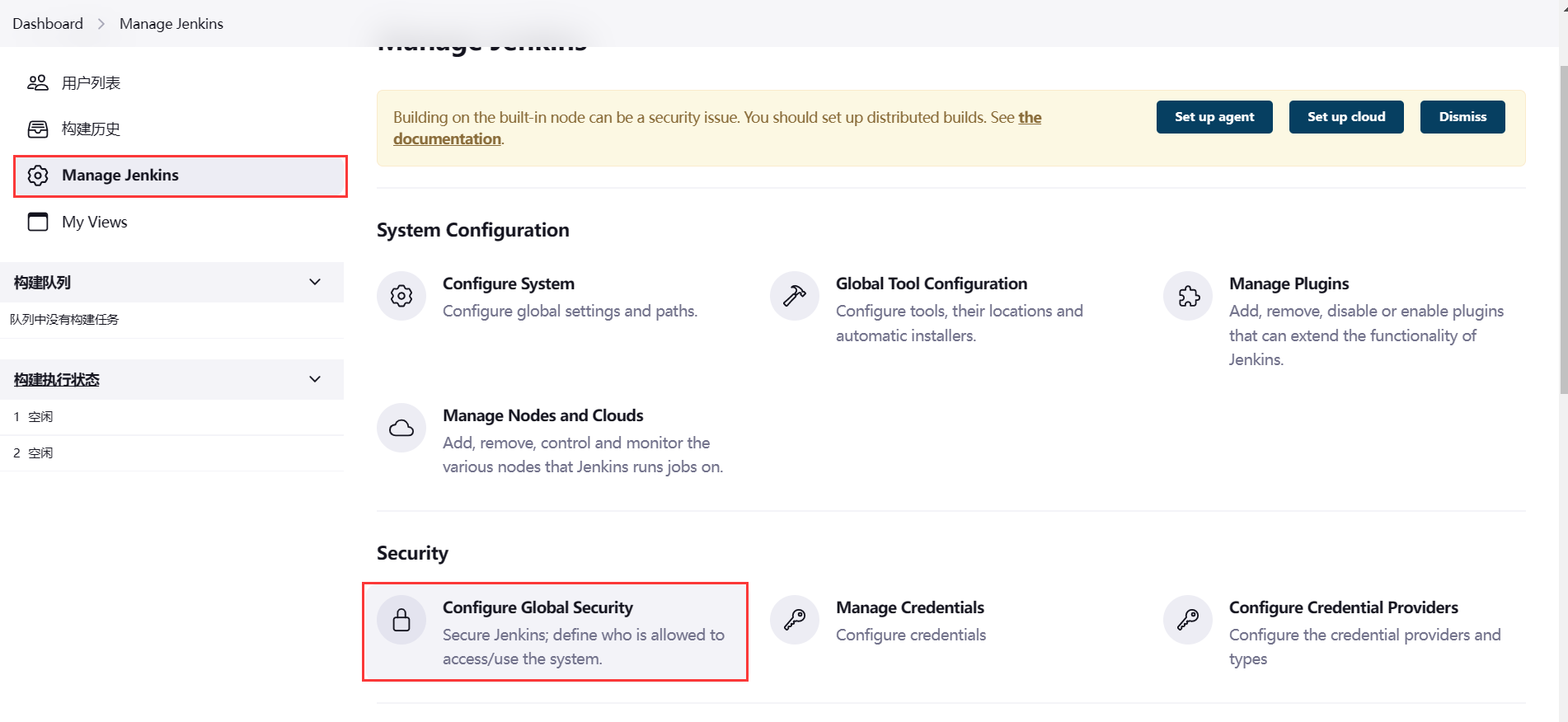

After the installation is complete, go to Manage Jenkins -> Configure Global Security. jenkins global security

ipucu

Make sure to back up the Jenkins config.xml file to recover in case of any setup errors.

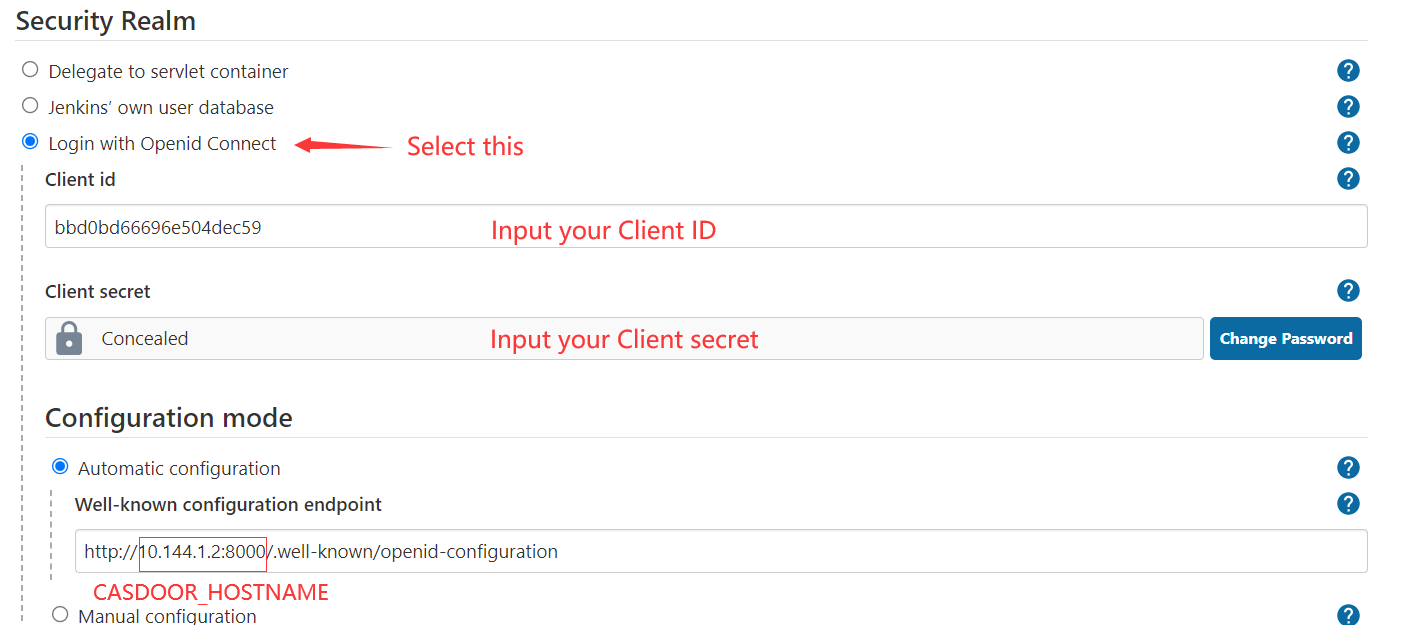

  1. In Access Control, select Login with Openid Connect as the Security Realm.

  2. Specify the Client ID noted above in the Client ID field.

  3. Specify the Client secret noted above in the Client secret field.

  4. In the Configuration mode, select Automatic configuration and enter http://CASDOOR_HOSTNAME/.well-known/openid-configuration as the Well-known configuration endpoint. Jenkins' Setting

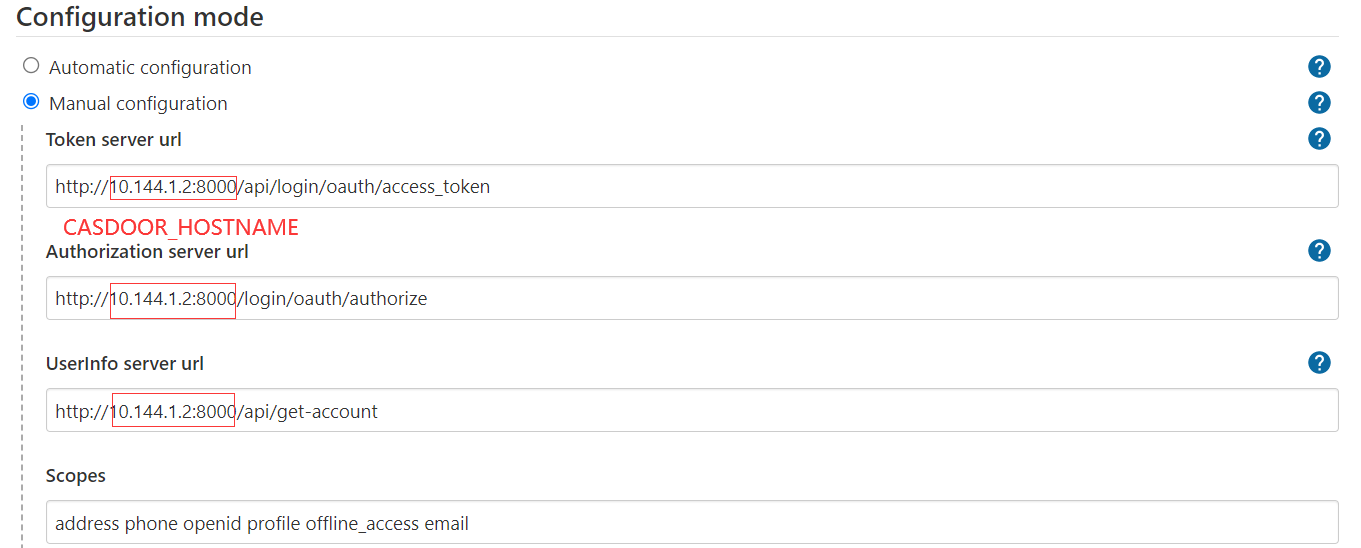

    If your Casdoor is deployed locally, you may need to select Manual configuration and provide the following information:

    • Token server URL: http://CASDOOR_HOSTNAME/api/login/oauth/access_token
    • Authorization server URL: http://CASDOOR_HOSTNAME/login/oauth/authorize
    • UserInfo server URL: http://CASDOOR_HOSTNAME/api/get-account
    • Scopes: address phone openid profile offline_access email Manual configuration

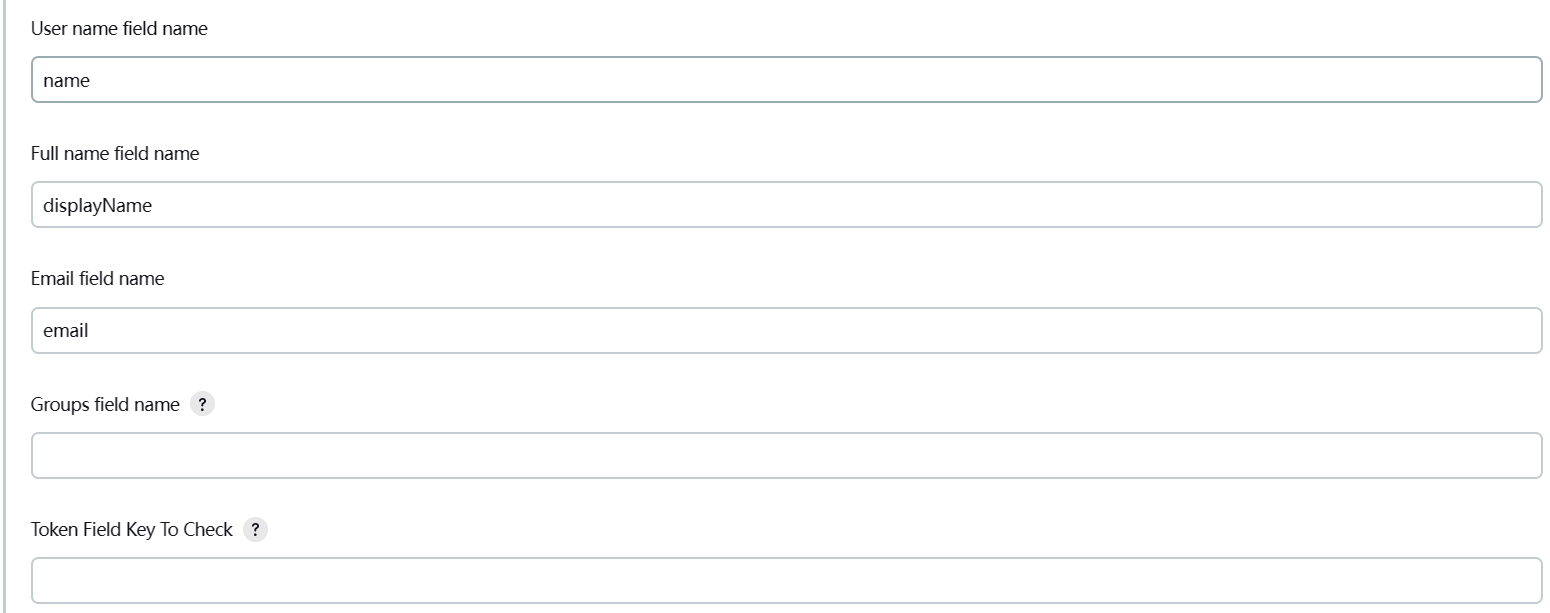

  5. Click on Advanced settings and fill in the following:

    • In the User name field, specify name.
    • In the Full name field, specify displayName.
    • In the Email field, specify email.

    Userinfo Field Setting

  6. In the Authorization section, enable “Logged-in users can do anything” and disable “Allow anonymous read access”. You can configure more complex authorization later, but for now, check if OpenID works correctly.

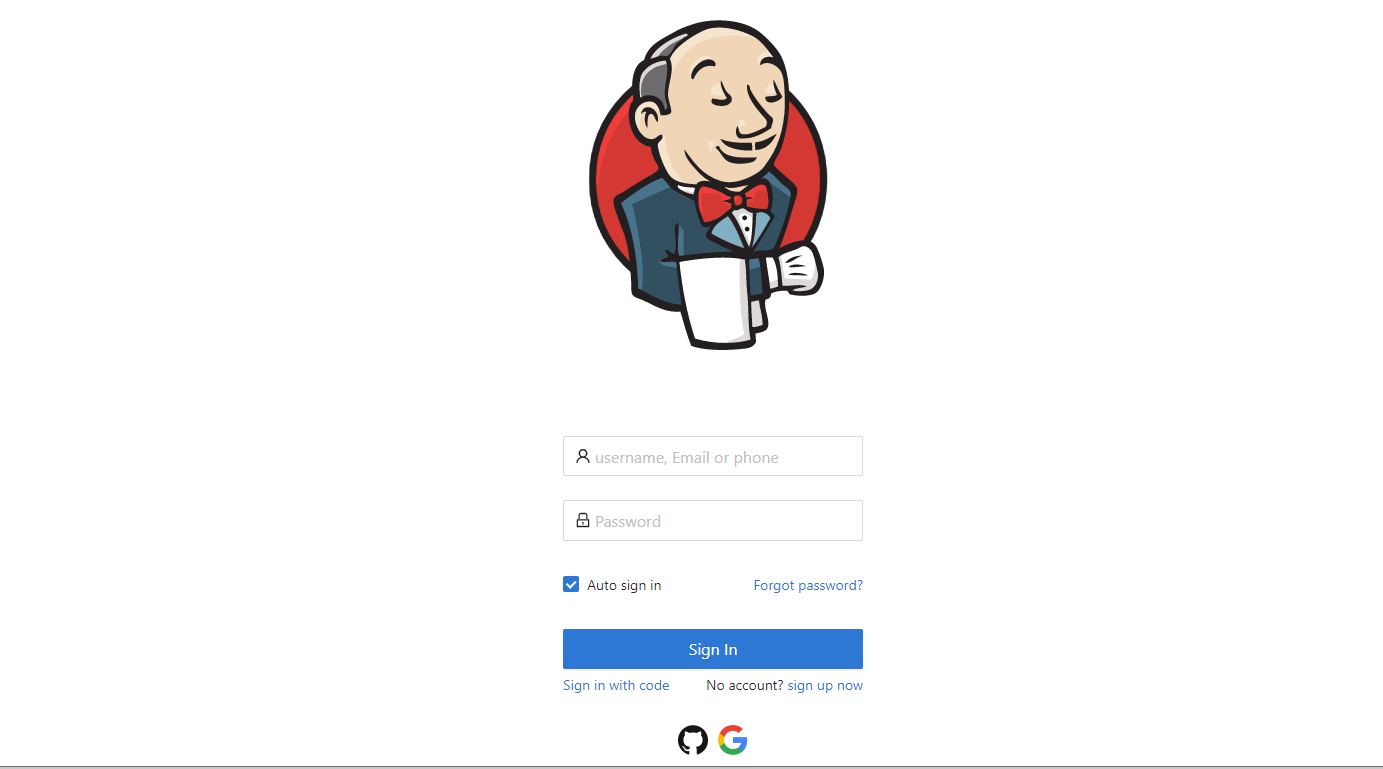

    Log out of Jenkins, and it should redirect you to Casdoor for authentication. Jenkins Login Page
