FireZone

This guide configures FireZone to use Casdoor as the OIDC IdP.

Step 1: Deploy Casdoor and FireZone​

Deploy Casdoor and FireZone.

After a successful deployment, ensure the following:

  1. Set the FireZone URL (Sigin -> Security -> Add OpenID Connect Provider) to FIREZONE_HOSTNAME.

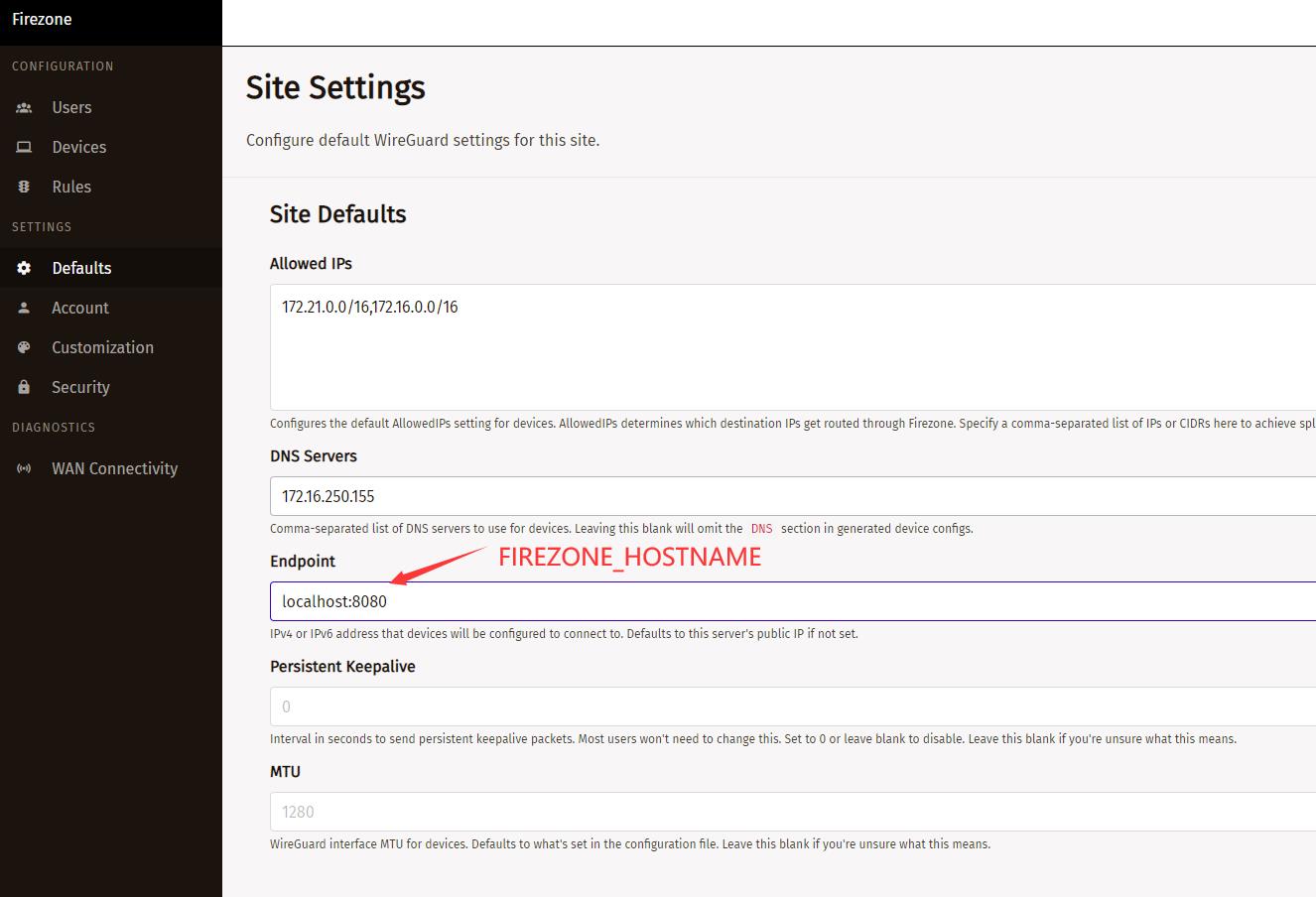

    FIREZONE_HOSTNAME

  2. Casdoor can be logged in and used normally.

  3. CASDOOR_HOSTNAME: http://localhost:8000, if you deploy Casdoor using the default app.conf.

Step 2: Configure Casdoor application​

  1. Create a new Casdoor application or use an existing one.

  2. Add a redirect URL:

    For example, if the Configid in the FireZone Provider is TEST, the redirect URL should be http://[FIREZONE_HOST]/auth/oidc/[PROVIDER_CONFIG_ID]/callback/.

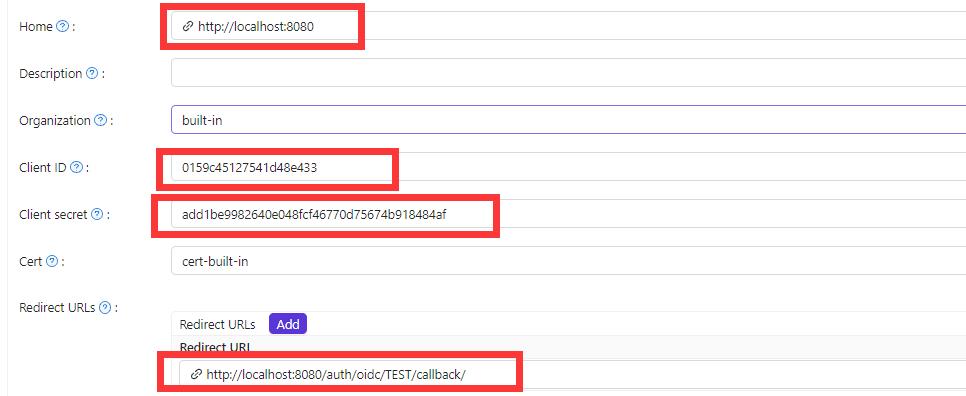

    REDIRECT_URL

    OIDC discovery: http://<CASDOOR_HOSTNAME>/.well-known/openid-configuration.

  3. Configure FireZone: Security -> Add OpenID Connect Provider

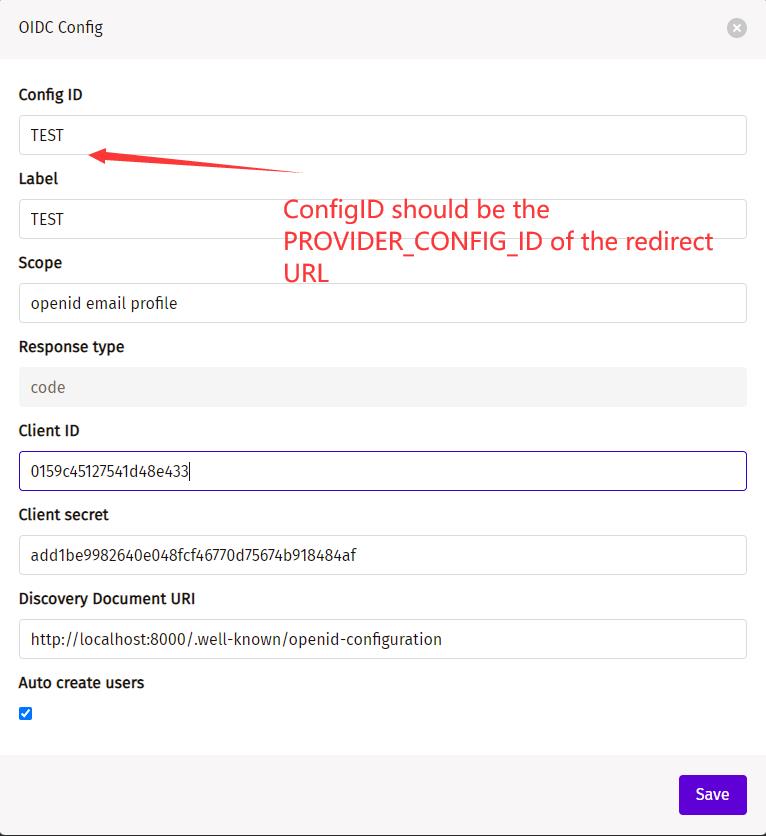

    OIDC_CONFIG

    • Discovery Document URI: The FireZone Provider Discovery Document URI should be https://[CASDOOR_HOST]/.well-known/openid-configuration.
    • Scopes: openid email profile
    • ConfigID: Must match the provider config ID used in the redirect URL (e.g. if redirect URL is .../auth/oidc/TEST/callback/, use ConfigID TEST).
    • Auto-create users: Successful login will automatically create a user.

Log out of FireZone and test SSO​

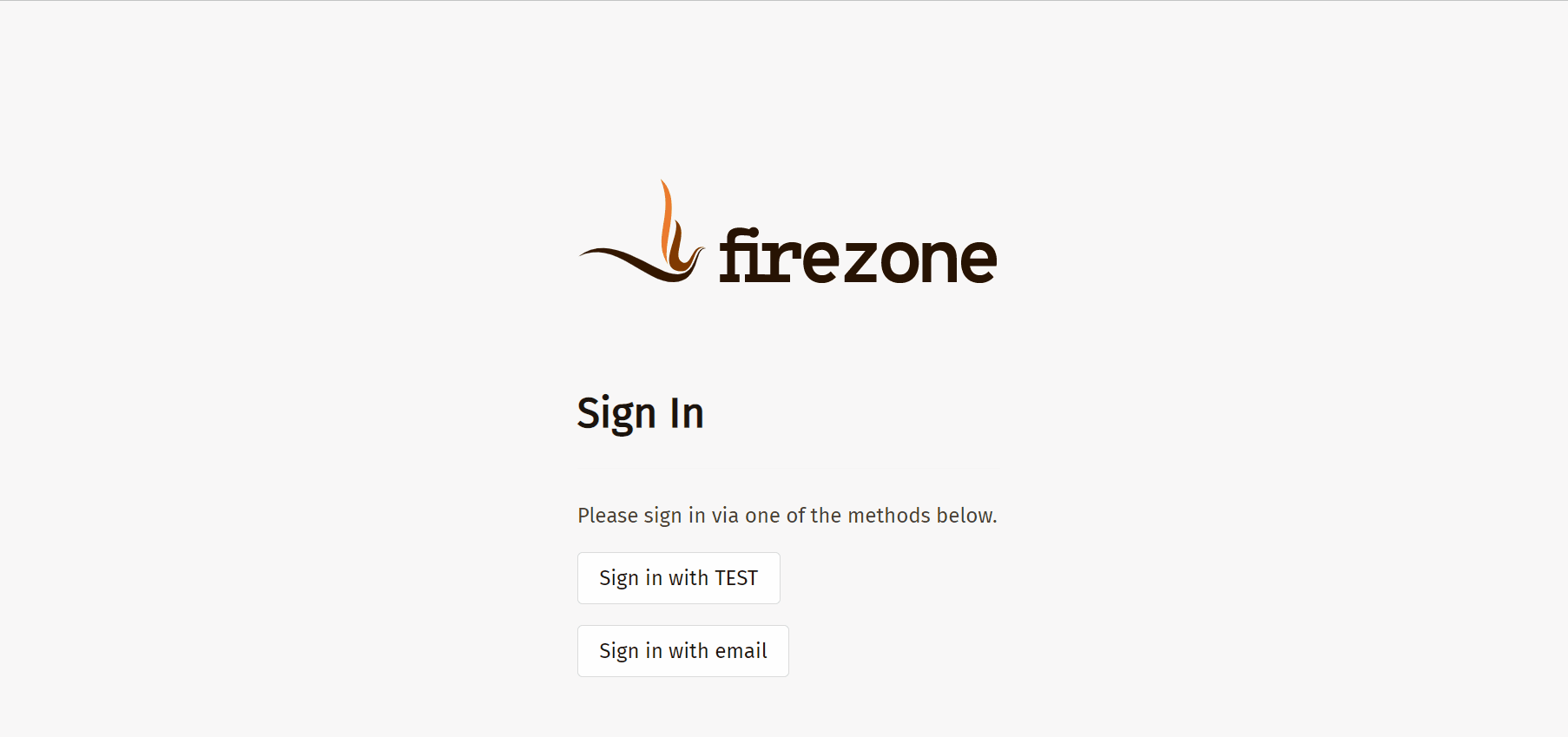

FIREZONELOGIN
