Kubernetes

According to the Kubernetes documentation, the API Server of Kubernetes can be authenticated using OpenID Connect (OIDC). This article will guide you on how to configure authentication in Kubernetes using Casdoor.

Environment Requirements​

Prerequisites:

  • A Kubernetes cluster.
  • A Casdoor application like this demo website.
  • kubectl command tool (optional).
ghi chú

Kubernetes oidc-issuer-url only accepts URLs which use the https:// prefix. So your Casdoor application should be deployed on an HTTPS website.

Step 1: Creating a Casdoor App and User Account for Authentication​

In Casdoor add an application (e.g. Kubernetes). Note Name, Organization, Client ID, and Client secret. Enable the grant types the cluster will use.

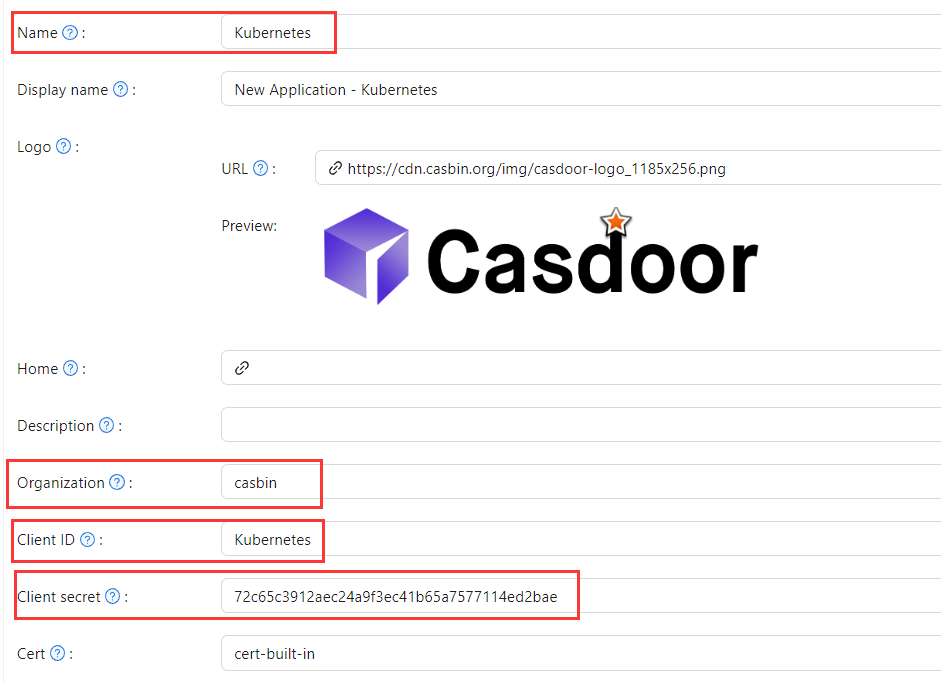

Create an application in Casdoor Grant types

Add a user; set Organization and Signup application to the application you created.

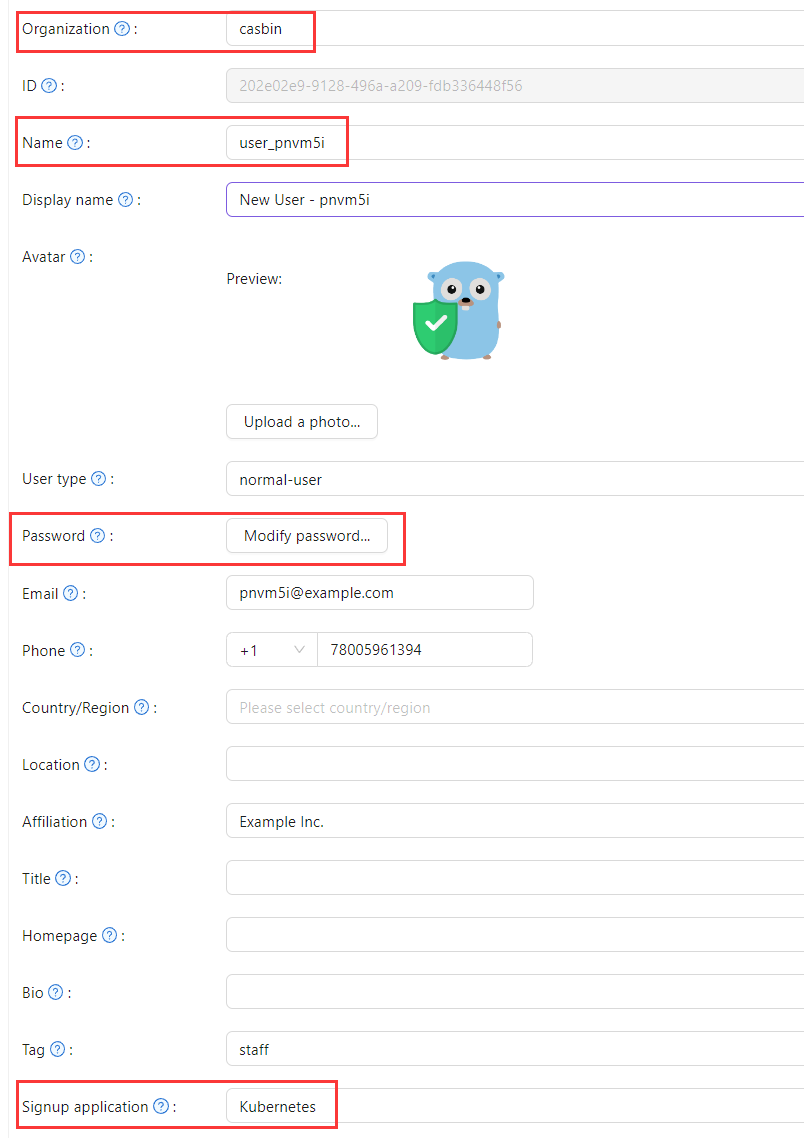

Add a user in Casdoor

Step 2: Configure Kubernetes API Server with OIDC Authentication​

To enable the OIDC plugin, set the following flags on the API server:

  • --oidc-issuer-url: URL of the provider that allows the API server to discover public signing keys.
  • --oidc-client-id: A client id that all tokens must be issued for.

This article uses minikube for demonstration. Configure the OIDC plugin for the minikube API server using the following command at startup:

minikube start --extra-config=apiserver.oidc-issuer-url=https://demo.casdoor.com --extra-config=apiserver.oidc-client-id=294b09fbc17f95daf2fe

Step 3: Test OIDC Authentication​

Obtain Authentication Information​

Due to the lack of a frontend in kubectl, authentication can be performed by sending a POST request to the Casdoor server. Here is the code in Python which sends a POST request to the Casdoor server and retrieves the id_token and refresh_token:

import requests
import json

url = "https://demo.casdoor.com/api/login/oauth/access_token"
payload = json.dumps({
   "grant_type": "password",
   "client_id": "Kubernetes",
   "client_secret": "72c65c3912aec24a9f3ec41b65a7577114ed2bae",
   "username": "user_3u94sf",
   "password": "123456"
})
response = requests.request("POST", url, data=payload)

print(response.text)

After executing this code, you should receive a response similar to the following:

{
  "access_token": "xxx",
  "id_token": "yyy",
  "refresh_token": "zzz",
  "token_type": "Bearer",
  "expires_in": 72000,
  "scope": ""
}

Use the obtained id_token to authenticate with the Kubernetes API server.

HTTP Request-Based Authentication​

Add the token to the request header.

curl https://www.xxx.com -k -H "Authorization: Bearer $(id_token)"
  • https://www.xxx.com is the Kubernetes API server deployment address.

Kubectl Client-Based Authentication​

Configuration File Method​

Write the following configuration to the ~/.kube/config file. You should replace each configuration item in the configuration file above with the values you obtained earlier.

users:
- name: minikube
  user:
    auth-provider:
      config:
        client-id: Kubernetes
        client-secret: 72c65c3912aec24a9f3ec41b65a7577114ed2bae
        id-token: $(id_token)
        idp-issuer-url: https://demo.casdoor.com
        refresh-token: $(refresh_token)
      name: oidc

Access the API server with kubectl. Try running a test command.

kubectl cluster-info

Command Line Argument Method​

Alternatively, pass the id_token in kubectl command-line parameters.

kubectl --token=$(id_token) cluster-info
