Electron app

The casdoor-electron-example shows Casdoor sign-in in an Electron app (custom protocol + browser OAuth).

Run the example

Initialization

Set these 6 string parameters:

Name	Description	Path
serverUrl	Your Casdoor server URL	src/App.js
clientId	The Client ID of your Casdoor application	src/App.js
appName	The name of your Casdoor application	src/App.js
redirectPath	The path of the redirect URL for your Casdoor application, will be /callback if not provided	src/App.js
clientSecret	The Client Secret of your Casdoor application	src/App.js
casdoorServiceDomain	Your Casdoor server URL	public/electron.js

Defaults: Casdoor demo and app-casnode if not set.

Commands

In the project directory:

npm run dev or yarn dev

Builds the electron app and runs this app.

npm run make or yarn make

Packages and distributes your application. It will create the out folder where your package will be located:

// Example for macOS out/
├── out/make/zip/darwin/x64/casdoor-electron-example-darwin-x64-1.0.0.zip
├── ...
└── out/casdoor-electron-example-darwin-x64/casdoor-electron-example.app/Contents/MacOS/casdoor-electron-example

Preview

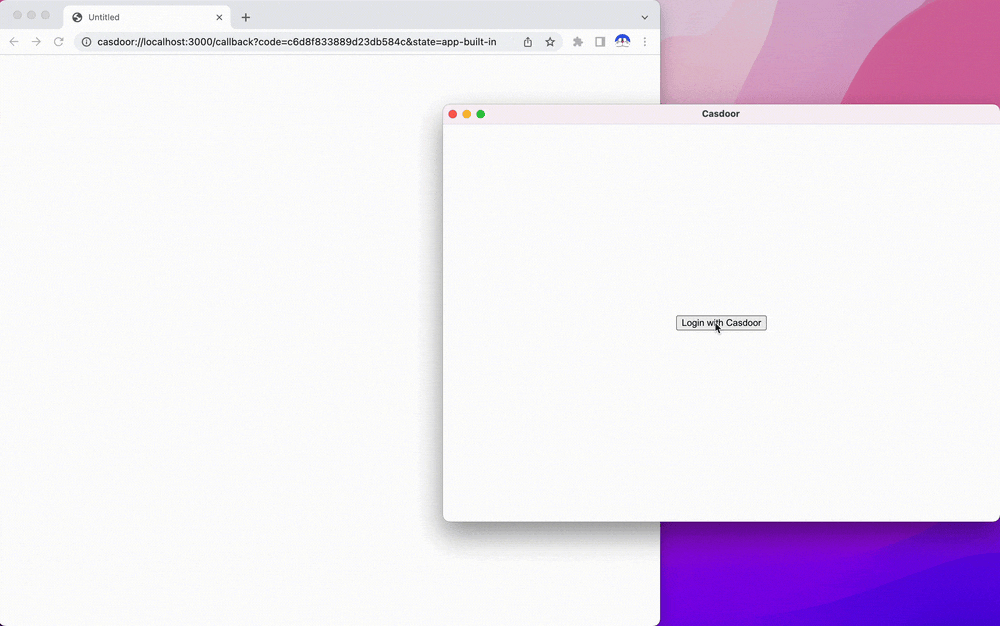

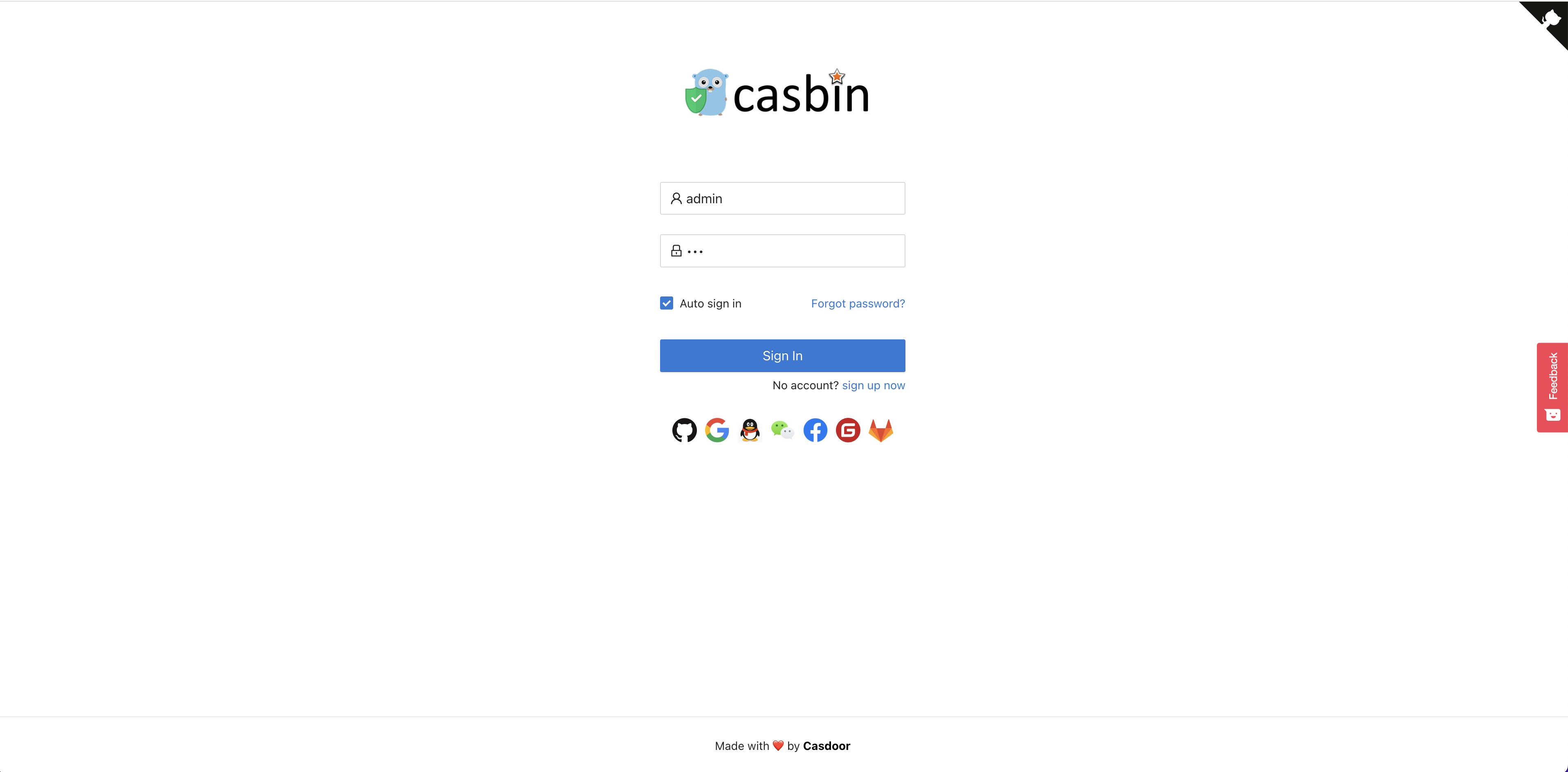

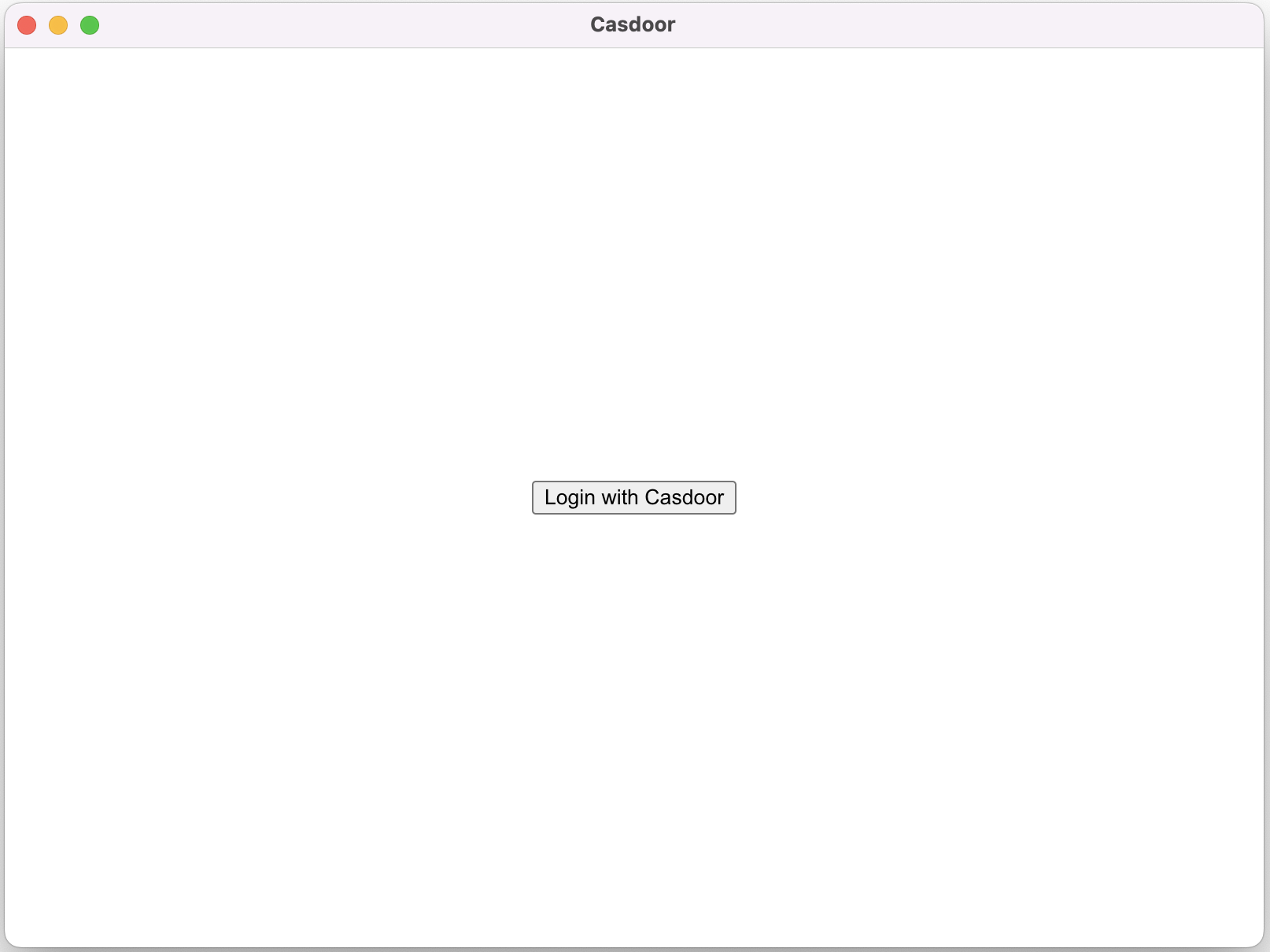

Running the app opens a window. Click Login with Casdoor to open the Casdoor login page in your browser.

After sign-in, the app opens and shows your username.

Integration steps

1. Set the custom protocol

Register the casdoor custom protocol:

const protocol = "casdoor";

if (process.defaultApp) {
  if (process.argv.length >= 2) {
    app.setAsDefaultProtocolClient(protocol, process.execPath, [
      path.resolve(process.argv[1]),
    ]);
  }
} else {
  app.setAsDefaultProtocolClient(protocol);
}

The browser can then open your app and pass the auth code via the protocol.

2. Open the login URL in the browser

const serverUrl = "https://door.casdoor.com";
const appName = "app-casnode";
const redirectPath = "/callback";
const clientId = "014ae4bd048734ca2dea";
const clientSecret = "f26a4115725867b7bb7b668c81e1f8f7fae1544d";

const redirectUrl = "casdoor://localhost:3000" + redirectPath;

const signinUrl = `${serverUrl}/login/oauth/authorize?client_id=${clientId}&response_type=code&redirect_uri=${encodeURIComponent(redirectUrl)}&scope=profile&state=${appName}&noRedirect=true`;

shell.openExternal(signinUrl); //Open the login url in the browser

Adjust the first five variables for your Casdoor instance.

3. Listen for the app being opened

After sign-in in the browser, the browser opens your app via the custom protocol. Listen for that event:

const gotTheLock = app.requestSingleInstanceLock();
const ProtocolRegExp = new RegExp(`^${protocol}://`);

if (!gotTheLock) {
  app.quit();
} else {
  app.on("second-instance", (event, commandLine, workingDirectory) => {
    if (mainWindow) {
      if (mainWindow.isMinimized()) mainWindow.restore();
      mainWindow.focus();
      commandLine.forEach((str) => {
        if (ProtocolRegExp.test(str)) {
          const params = url.parse(str, true).query;
          if (params && params.code) {
            store.set("casdoor_code", params.code);
            mainWindow.webContents.send("receiveCode", params.code);
          }
        }
      });
    }
  });
  app.whenReady().then(createWindow);

  app.on("open-url", (event, openUrl) => {
    const isProtocol = ProtocolRegExp.test(openUrl);
    if (isProtocol) {
      const params = url.parse(openUrl, true).query;
      if (params && params.code) {
        store.set("casdoor_code", params.code);
        mainWindow.webContents.send("receiveCode", params.code);
      }
    }
  });
}

The auth code is in casdoor_code or params.code.

4. Exchange the code for user info

async function getUserInfo(clientId, clientSecret, code) {
  const { data } = await axios({
    method: "post",
    url: authCodeUrl,
    headers: {
      "content-type": "application/json",
    },
    data: JSON.stringify({
      grant_type: "authorization_code",
      client_id: clientId,
      client_secret: clientSecret,
      code: code,
    }),
  });
  const resp = await axios({
    method: "get",
    url: `${getUserInfoUrl}?accessToken=${data.access_token}`,
  });
  return resp.data;
}

ipcMain.handle("getUserInfo", async (event, clientId, clientSecret) => {
  const code = store.get("casdoor_code");
  const userInfo = await getUserInfo(clientId, clientSecret, code);
  store.set("userInfo", userInfo);
  return userInfo;
});

See OAuth for the full flow.
