Personalizado

O Casdoor suporta a configuração de Provedor Personalizado SAML, e você pode usar o Casdoor como um Provedor de Serviço (SP) para conectar qualquer Provedor de Identidade (IDP) que suporte o protocolo SAML 2.0.

Passo1. Configure your Identity Provider

When setting up your Identity Provider (such as Google Workspace, Azure AD, Okta, or any other SAML 2.0 compatible IdP), you'll need to provide the following Casdoor SP information:

• ACS URL (Assertion Consumer Service URL): https://<your-casdoor-domain>/api/acs

  • Example: https://door.example.com/api/acs
  • This endpoint only accepts POST requests

• Entity ID (SP Entity ID): https://<your-casdoor-domain>/api/acs

  • Use the same URL as your ACS URL

Replace <your-casdoor-domain> with your actual Casdoor domain. For example, if your Casdoor instance is running at http://localhost:8000, use http://localhost:8000/api/acs for both values.

Passo2. Obtenha os metadados do IDP

After configuring your IdP, obtain the metadata, which is an XML document that describes the configuration information of the services provided by the IdP. Ele precisa incluir informações como EntityID, SSO Endpoint, etc.

Alguns IDPs, como o Keycloak, exigem informações do SP para fornecer metadados. You can refer to the document Keycloak.

Step3. Configure o Provedor Personalizado SAML

After obtaining the metadata from your IdP, create a SAML Custom Provider in Casdoor and fill in the necessary information.

Campo	Descrição
Category	Escolha SAML
Type	Escolha Personalizado
Favicon.URL	A URL do logo do IDP
Metadata	Os metadados do IDP

Then click Parse button, and fields Endpoint, IdP, Issuer URL, SP ACS URL and SP Entity ID will be automatically parsed.

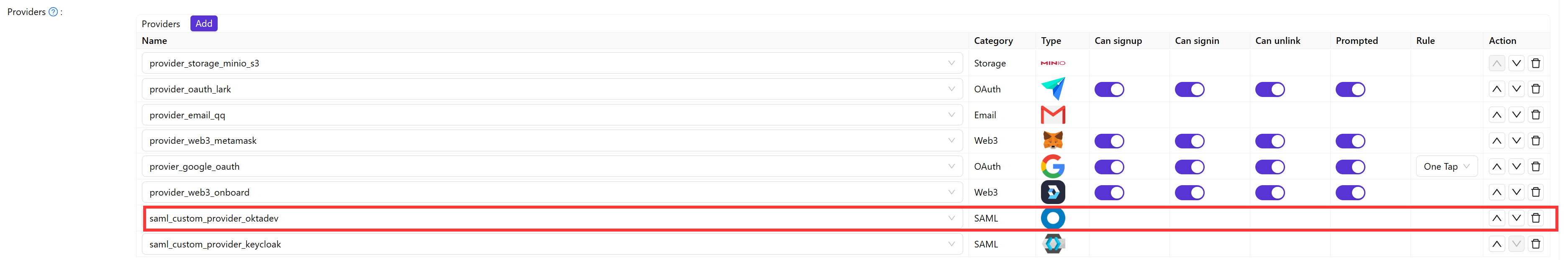

Finally, add the SAML Custom Provider to Providers of the application.
