Custom

Casdoor supports configuring SAML Custom Provider, and you can use Casdoor as a Service Provider (SP) to connect any Identity Provider (IDP) that support SAML 2.0 protocol.

Step1. Configure your Identity Provider

When setting up your Identity Provider (such as Google Workspace, Azure AD, Okta, or any other SAML 2.0 compatible IdP), you'll need to provide the following Casdoor SP information:

• ACS URL (Assertion Consumer Service URL): https://<your-casdoor-domain>/api/acs

  • Example: https://door.example.com/api/acs
  • This endpoint only accepts POST requests

• Entity ID (SP Entity ID): https://<your-casdoor-domain>/api/acs

  • Use the same URL as your ACS URL

Replace <your-casdoor-domain> with your actual Casdoor domain. For example, if your Casdoor instance is running at http://localhost:8000, use http://localhost:8000/api/acs for both values.

Step2. Get the metadata of IDP

After configuring your IdP, obtain the metadata, which is an XML document that describes the configuration information of the services provided by the IdP. It needs to include information such as EntityID, SSO Endpoint, etc.

Some IDPs, such as Keycloak, require SP information to provide metadata. You can refer to the document Keycloak.

Step3. Configure SAML Custom Provider

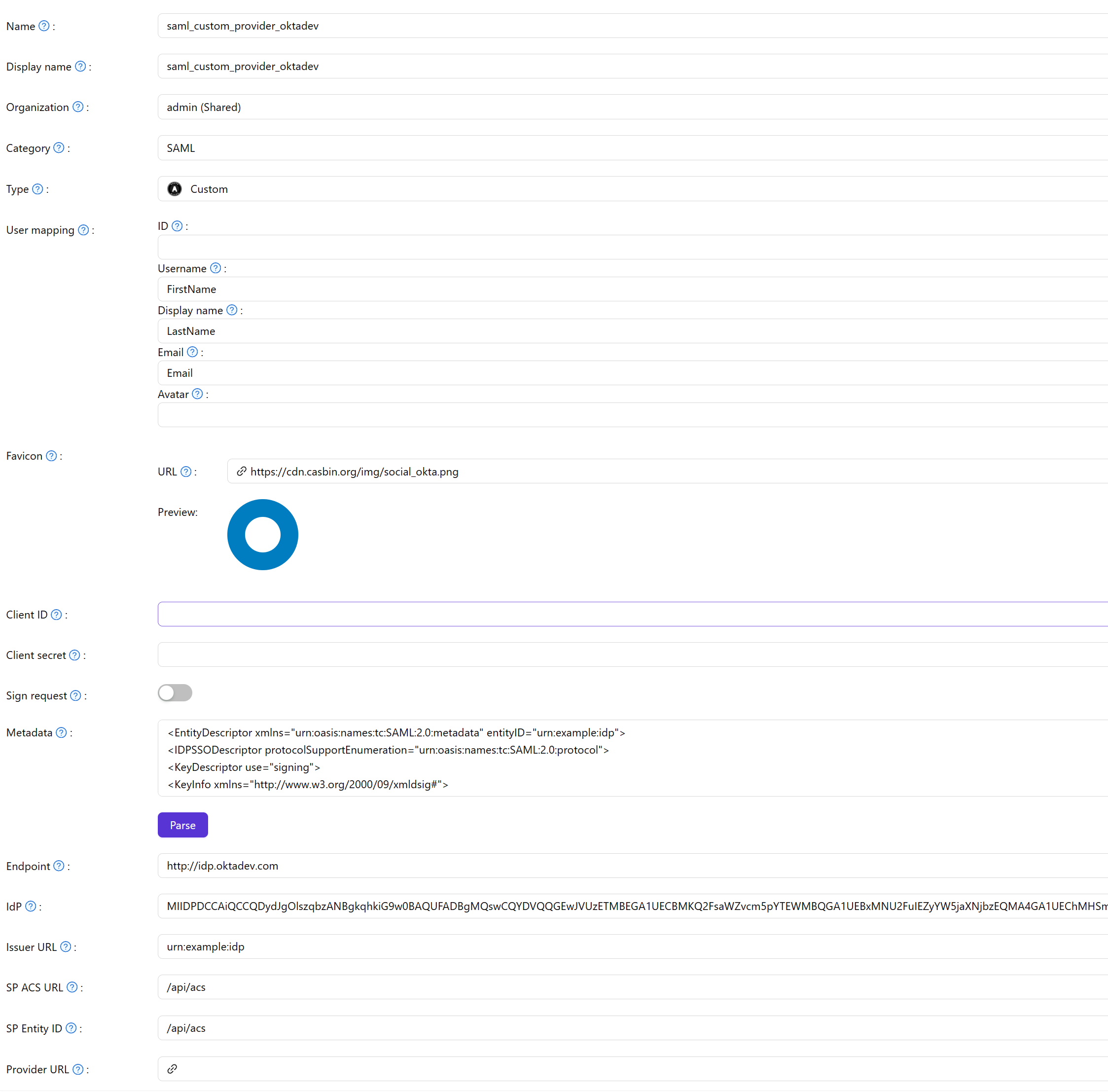

After obtaining the metadata from your IdP, create a SAML Custom Provider in Casdoor and fill in the necessary information.

Field	Description
Category	Choose SAML
Type	Choose Custom
Favicon.URL	The URL of the IDP logo
Metadata	The metadata of IDP

Then click Parse button, and fields Endpoint, IdP, Issuer URL, SP ACS URL and SP Entity ID will be automatically parsed.

Finally, add the SAML Custom Provider to Providers of the application.
