Permission configuration

This page describes the fields on the Edit Permission form, where you define permission policies for an organization.

Opening the form​

  1. Sign in to Casdoor.
  2. Go to Permissions in the sidebar.
  3. Click Add for a new policy or open an existing one to edit.

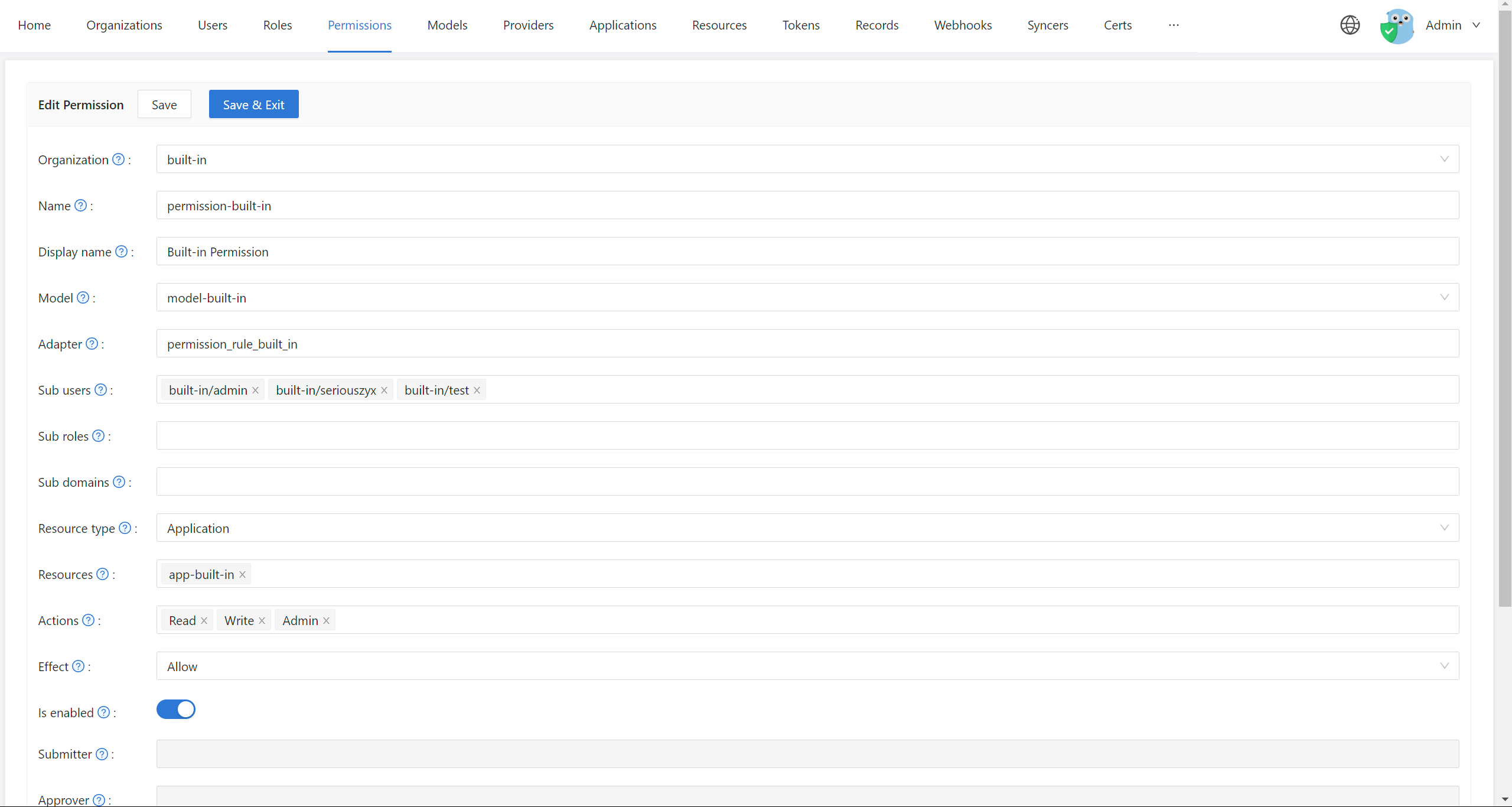

Permission Edit Page

Fields​

Basic information​

Organization — The organization that owns this policy. One org can have multiple permission policies. Choose from the dropdown.

Name — Unique identifier for the policy inside the organization. Must be unique; it is used when calling Casbin APIs.

Display name — Label shown in the UI.

Model and storage​

Model — The model that defines how this policy is evaluated (ACL, RBAC, ABAC, etc.). Create and edit models on the Models page. Examples:

tip

Design and test models in the Casbin Online Editor, then add them in Casdoor.

Adapter

This field specifies the database table name where the permission policy rules are stored.

Casdoor uses its own database to store permission policies:

  • If this field is empty, the permission policy will be stored in the permission_rule table
  • If specified, it will be stored in the specified database table
  • If the specified table name does not exist in the database, it will be created automatically
Important

Each Model should use a separate Adapter (table name). Different models with different structures should not share the same table, as this may cause conflicts when loading policies.

Learn more about adapters in the Adapter documentation.

Adapter and Model relationship​

In Casdoor, adapters are not configured per Permission.

The adapter and authorization behavior (such as RBAC or ABAC support) are defined at the Model level. A Permission only references a selected Model and provides policy data (subjects, resources, actions, effects).

If RBAC-related fields (for example, Sub-users or Sub-roles) are disabled on the Permission page, it means the selected Model does not define a role_definition or does not support RBAC.

To use an adapter with a Permission:

  1. Create or edit a Model and configure it with the appropriate Casbin definition and adapter.
  2. Save the Model.
  3. Select this Model when creating or editing a Permission.

This behavior is expected and by design.

Subject Configuration​

These fields define who the permission policy applies to.

Sub users​

Which users the permission applies to; select them on the Edit Permission page.

Examples:

  • Select specific users like alice, bob
  • Leave empty to not restrict by user

Sub roles​

For RBAC, select which roles apply to this permission on the Edit Role page.

This will add permission policies such as g, user, role for every user in this role.

Examples:

  • Select roles like admin, editor, viewer
  • All users with these roles will inherit the permissions
Role-Based Permissions

Using roles is a powerful way to manage permissions at scale. Instead of assigning permissions to individual users, you assign them to roles, and then assign roles to users.

Sub domains​

Which domains will the permission policy be applied to. This is useful for multi-tenant scenarios.

Examples:

  • domain1, domain2
  • Leave empty if not using domain-based access control

Object and Action Configuration​

These fields define what resources and what actions are controlled by the policy.

Resource type​

Casdoor does not use this field for external app authentication; you can ignore it or use it for your own categorization.

Resources​

This field describes the resources for which you wish to enforce permission control.

note

These resources are not the ones on the Resources page in the Casdoor UI. Use any string here, e.g.:

  • A URL: /api/users, /admin/dashboard
  • A file name: document.pdf, config.yaml
  • A resource identifier: project:123, database:users

Add multiple resources; Casdoor creates permission rules for each resource–action combination.

Actions​

This field describes the actions to operate on resources. Similar to resources, it can be any string you want, such as:

  • HTTP methods: GET, POST, PUT, DELETE
  • CRUD operations: read, write, update, delete
  • Custom actions: view, edit, approve, publish
caution

Casdoor converts all these strings to lowercase before storing them. Additionally, Casdoor will apply all actions to each resource. You cannot specify that an action only takes effect on certain resources in this configuration page.

If you need fine-grained control over action-resource combinations, you should define this in your Model file.

Effect Configuration​

Effect​

This option takes effect for Casdoor itself to control application access.

info

If you want an external application to enforce permission controls using the interface Casdoor exposes, this field won't do anything. You should describe the effect of pattern matching in the Model file using allow or deny rules.

Example Configuration​

This page is tailored to the (sub, obj, act) model, one of the most common permission models.

Here's an example configuration:

  • Model: rbac_model (Role-Based Access Control)
  • Sub roles: admin, editor
  • Resources: /api/users, /api/posts
  • Actions: read, write

This would allow users with the admin or editor role to perform read and write actions on the /api/users and /api/posts resources.
