GitLab

Casdoor 可以使用 OIDC 协议链接到私有部署的 GitLab，该文档将向您展示如何处理相关问题。

注意事项

As GitLab docs said, GitLab only works with OpenID providers that use HTTPS, so you need to deploy Casdoor with HTTPS, like putting Casdoor behind a NGINX reverse proxy with SSL certificate setup. Casdoor itself only listens to 8000 port by default via HTTP and has no HTTPS related functionality.

The following are some of the names in the configuration:

CASDOOR_HOSTNAME: Domain name or IP where Casdoor server is deployed. e.g., https://door.casbin.com.

GITLAB_HOSTNAME: Domain name or IP where GitLab is deployed. e.g., https://gitlab.com.

第 1 步： 部署 Casdoor 和 GitLab​

Firstly, the Casdoor and GitLab should be deployed.

After a successful deployment, you need to ensure:

  1. Casdoor 可以正常登录使用。

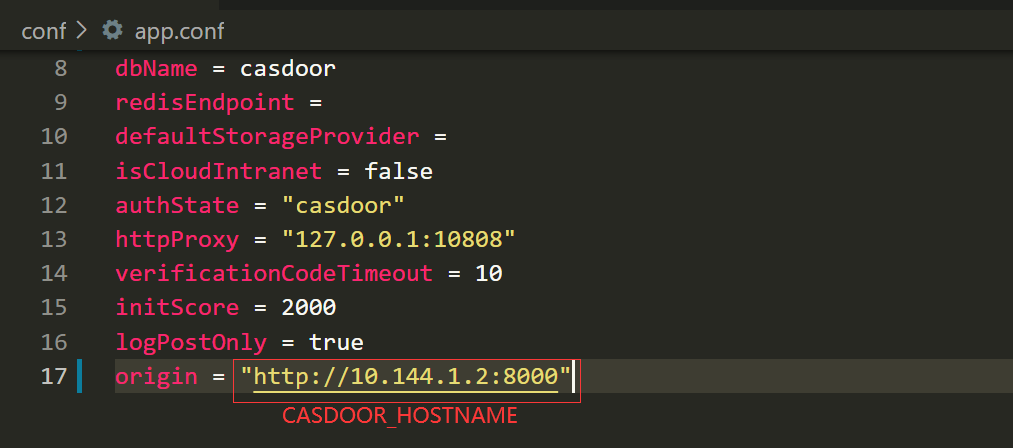

  2. 将 Casdoor 的 origin 值 (conf/app.conf) 设置为 CASDOOR_HOSTNAME。 Casdoor 配置

第 2 步： 配置 Casdoor 应用程序​

  1. 创建或使用现有的 Casdoor 应用程序。
  2. 添加重定向网址：http://GITLAB_HOSTNAME/users/auth/openid_connect/callback。
  3. 添加您想要的提供商并补充其他设置。

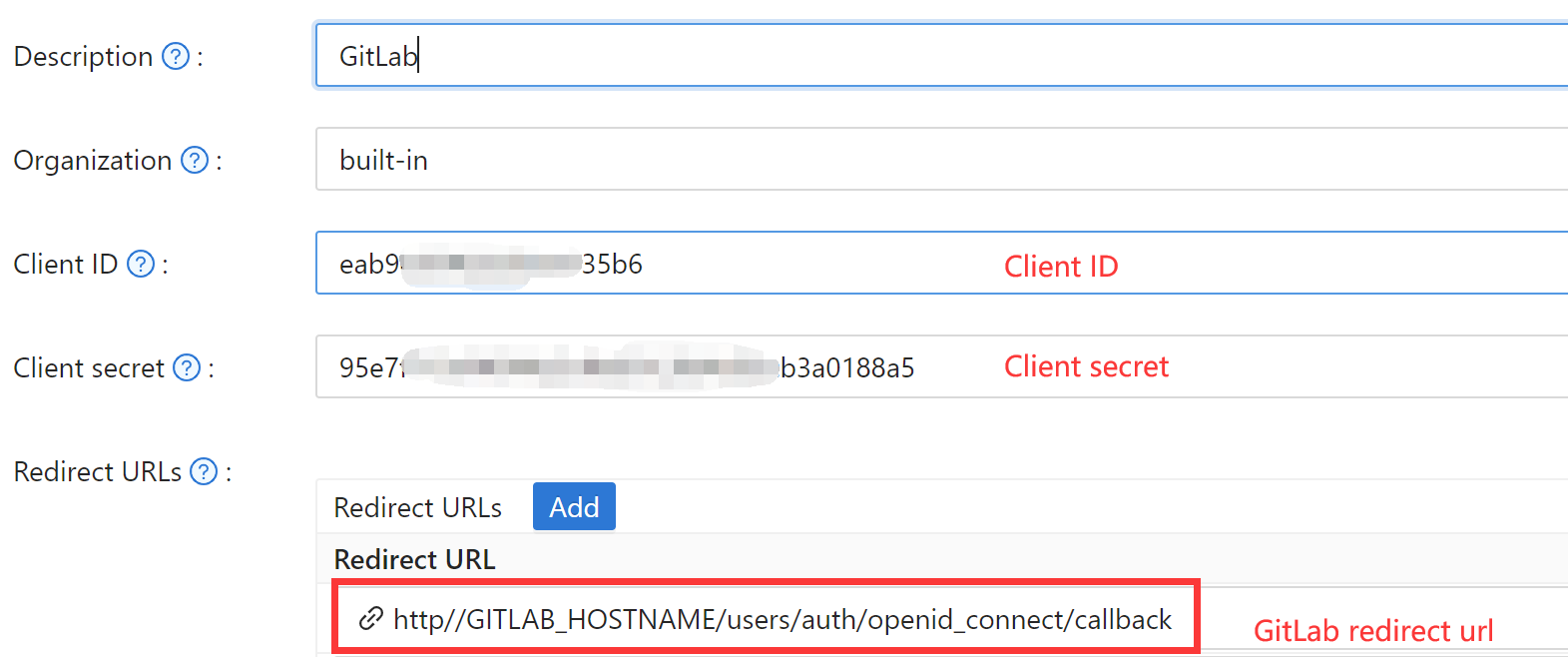

Application Setting Not surprisingly, you can get two values ​​on the application settings page: Client ID and Client secret like the picture above, and we will use them in the next step.

Open your favorite browser and visit: http://CASDOOR_HOSTNAME/.well-known/openid-configuration, you will see the OIDC configure of Casdoor.

第 3 步： 配置 GitLab​

You can follow the steps below to set this up, or make custom changes according to this document(e.g., you are installing GitLab using source code rather than Omnibus).

  1. 在 GitLab 服务器上，打开配置文件。

    sudo editor /etc/gitlab/gitlab.rb

  2. 添加提供商配置。 (HOSTNAME 链接应包括 http 或 https)

    gitlab_rails['omniauth_providers'] = [
        {
            name: "openid_connect",
            label: "Casdoor", # 登录按钮的可选标签，默认为"Openid Connect"
            args: {
                name: "openid_connect",
                scope: ["openid", "profile", "email"],
                response_type: "code",
                issuer:  "<CASDOOR_HOSTNAME>",
                client_auth_method: "query",
                discovery: true,
                uid_field: "preferred_username",
                client_options: {
                    identifier: "<你的 CLIENT ID>",
                    secret: "<你的 CLIENT SECRET>",
                    redirect_uri: "<GITLAB_HOSTNAME>/users/auth/openid_connect/callback"
                }
            }
        }
    ]

  3. 重新启动 GitLab 服务器。

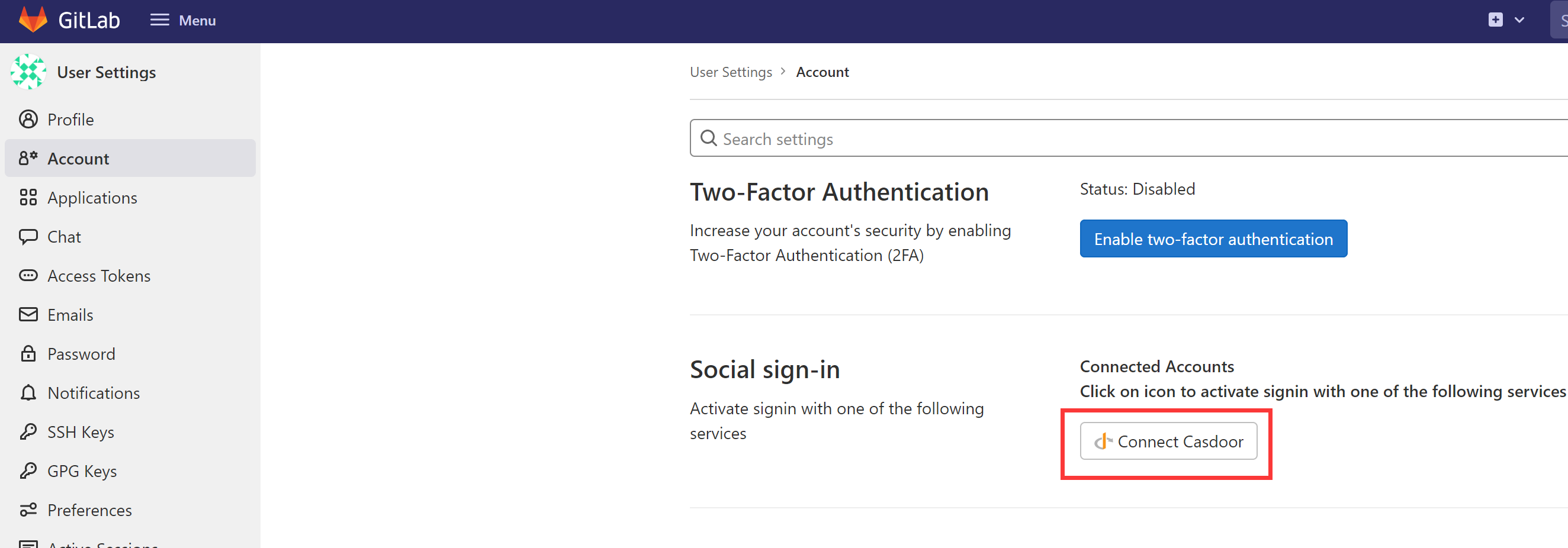

  4. 每个注册用户都可以打开GITLAB_HOSTNAME/-/profile/account，连接 Casdoor 账号。 GitLab 连接

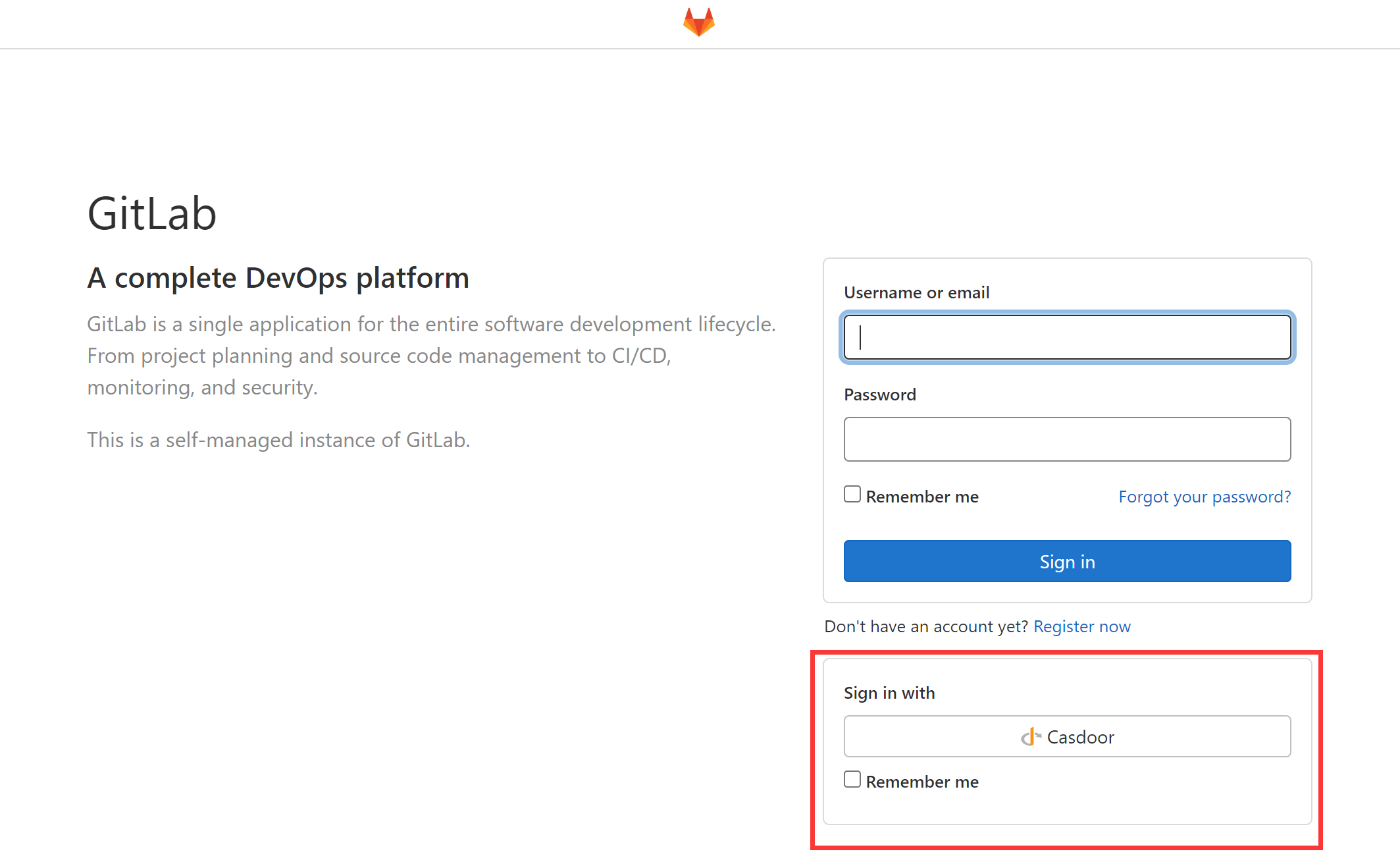

  5. 完成！ 现在，您可以通过 casdoor 登录您自己的 GitLab。 GitLab 登录
