Grafana

Grafana supports generic OAuth. Use Casdoor as the IdP so users sign in to Grafana with their Casdoor accounts. Ensure Grafana is installed and running.

Step 1: Create a Casdoor application for Grafana​

Create an application in Casdoor and add Grafana’s callback URL. Default Grafana OAuth callback path: /login/generic_oauth, so the full redirect URL is https://<grafana-host>/login/generic_oauth. Copy the Client ID and Client Secret.

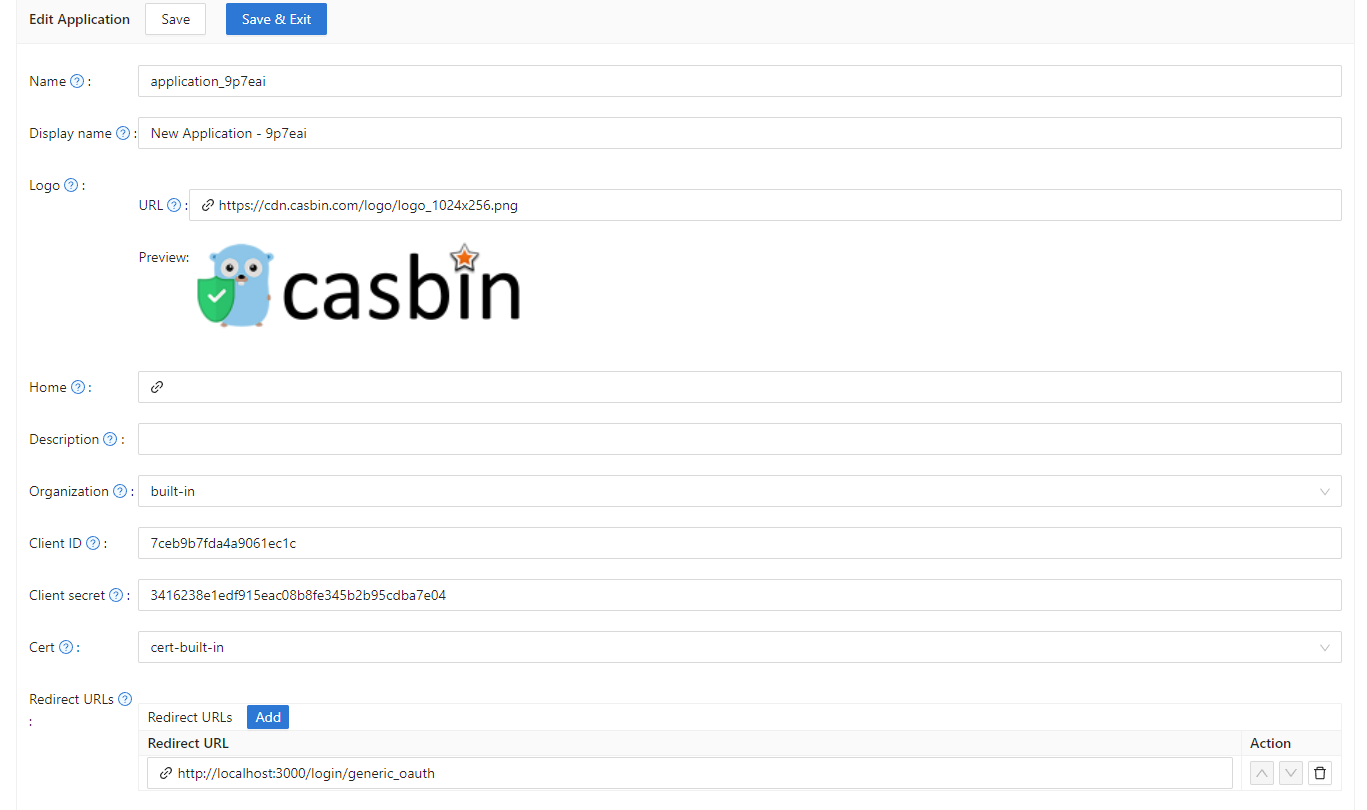

Create an application in Casdoor

Step 2: Configure Grafana​

Edit the Grafana config (e.g. conf/defaults.ini or your custom config). Find or add [auth.generic_oauth] and set:

[auth.generic_oauth]
name = Casdoor
icon = signin
enabled = true
allow_sign_up = true
client_id = <client ID from previous step>
client_secret = <client secret from previous step>
auth_url = <Casdoor endpoint>/login/oauth/authorize
token_url = <Casdoor endpoint>/api/login/oauth/access_token

HTTPS​

If Casdoor or Grafana is not using HTTPS, set tls_skip_verify_insecure = true.

Redirect after sign-in​

If the post-login redirect is wrong, set root_url in [server]:

[server]
http_port = 3000
# The public-facing domain name used to access Grafana from a browser
domain = <your IP here>
# The full public-facing URL
root_url = %(protocol)s://%(domain)s:%(http_port)s/

Enlaces relacionados:

  1. Documentación de Grafana

  2. Grafana defaults.ini

Acerca del Mapeo de Roles​

Es posible que quieras configurar role_attribute_path para mapear el rol de tu usuario a Grafana vía role_attribute_path.

[auth.generic_oauth]
role_attribute_path = contains(roles[*].name, 'admin') && 'Admin' || contains(roles[*].name, 'editor') && 'Editor' || 'Viewer'
role_attribute_strict = true
allow_assign_grafana_admin = true

The JMESPath expression after role_attribute_path is important; see the Grafana docs.

Paso 3: Ver si funciona​

Apaga Grafana y reinícialo.

Ve a la página de inicio de sesión. Deberías ver algo como esto:

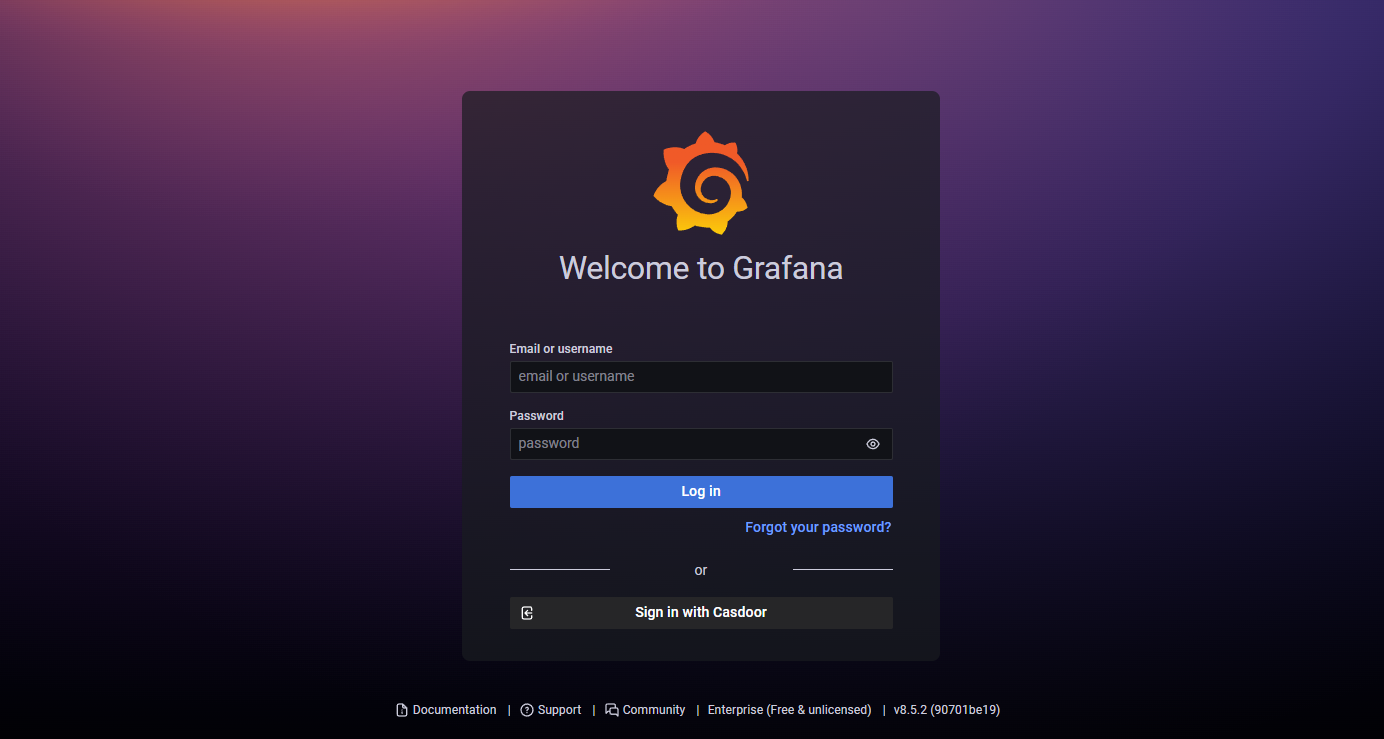

Resultado final
