Using Casdoor for authentication in Grafana​

Grafana supports authentication via OAuth. Therefore, it is extremely easy for users to use Casdoor to log in to Grafana. Only several steps and simple configurations are needed to achieve that.

Here is a tutorial on how to use Casdoor for authentication in Grafana. Before you proceed, please ensure that you have Grafana installed and running.

Step 1: Create an app for Grafana in Casdoor​

Here is an example of creating an app in Casdoor:

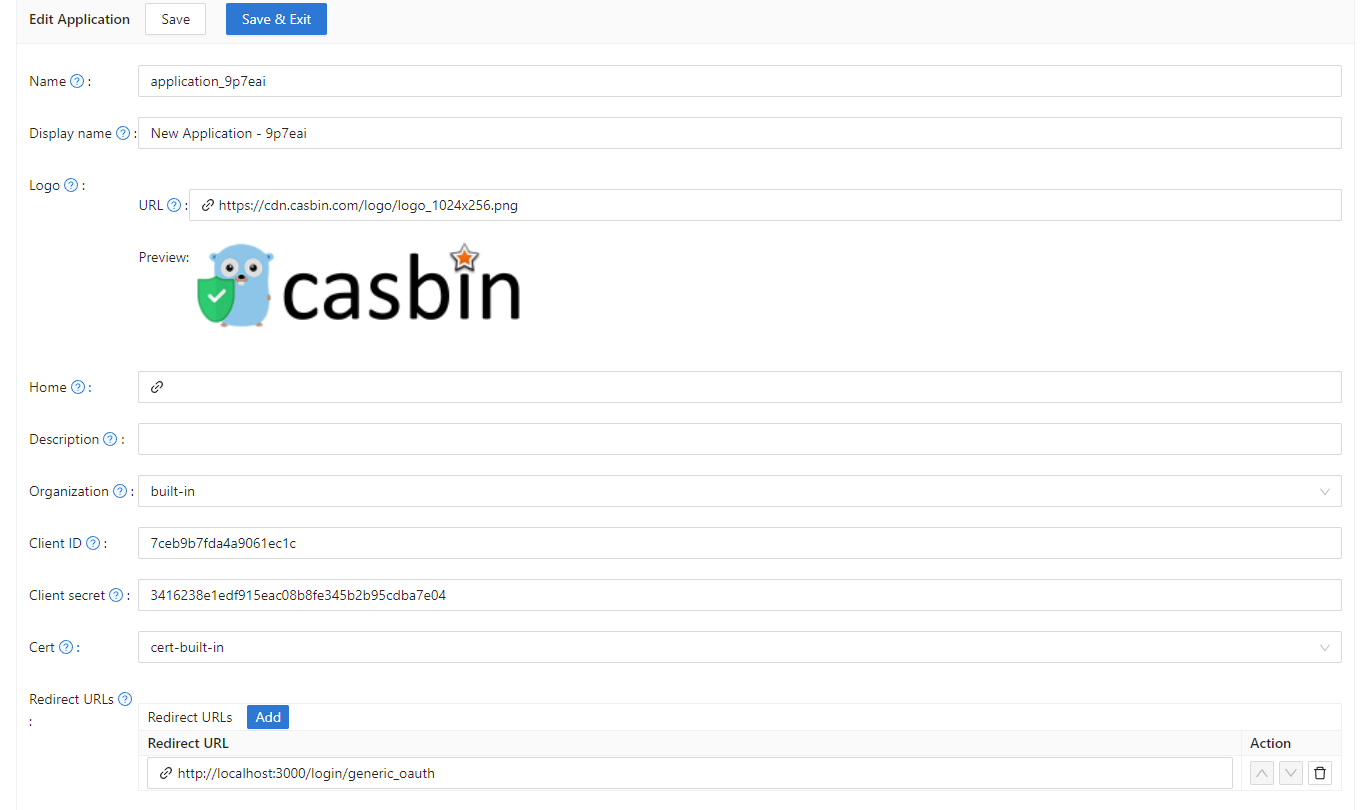

Create an application in Casdoor

Please copy the client secret and client ID for the next step.

Please add the callback URL of Grafana. By default, Grafana's OAuth callback is /login/generic_oauth. So please concatenate this URL correctly.

Step 2: Modify the configuration of Grafana​

By default, the configuration file for OAuth is located at conf/defaults.ini in the workdir of Grafana.

Please find the section [auth.generic_oauth] and modify the following fields:

[auth.generic_oauth]
name = Casdoor
icon = signin
enabled = true
allow_sign_up = true
client_id = <client ID from previous step>
client_secret = <client secret from previous step>
auth_url = <Casdoor endpoint>/login/oauth/authorize
token_url = <Casdoor endpoint>/api/login/oauth/access_token

About HTTPS​

If you don't want HTTPS enabled for Casdoor or if you deploy Grafana without HTTPS enabled, please also set tls_skip_verify_insecure = true.

About redirectURI after Sign In With Casdoor​

If the redirect URI is not correct after signing in with Casdoor in Grafana, you may want to configure root_url.

[server]
http_port = 3000
# The public-facing domain name used to access Grafana from a browser
domain = <your IP here>
# The full public-facing URL
root_url = %(protocol)s://%(domain)s:%(http_port)s/

Related links:

  1. Grafana documentation

  2. Grafana defaults.ini

About Role Mapping​

You may want to configure role_attribute_path to map your user's role to Grafana via role_attribute_path.

[auth.generic_oauth]
role_attribute_path = contains(roles[*].name, 'admin') && 'Admin' || contains(roles[*].name, 'editor') && 'Editor' || 'Viewer'
role_attribute_strict = true
allow_assign_grafana_admin = true

The JMESPath expression after role_attribute_path is very important here. Please refer to the Grafana documentation.

Step 3: See if it works​

Shutdown Grafana and restart it.

Go to the login page. You should see something like this:

Final result
