OpenShift

OpenShift supports OIDC, so we can integrate Casdoor with OpenShift. The following steps demonstrate how to integrate Casdoor with OpenShift Local using the online demo of Casdoor.

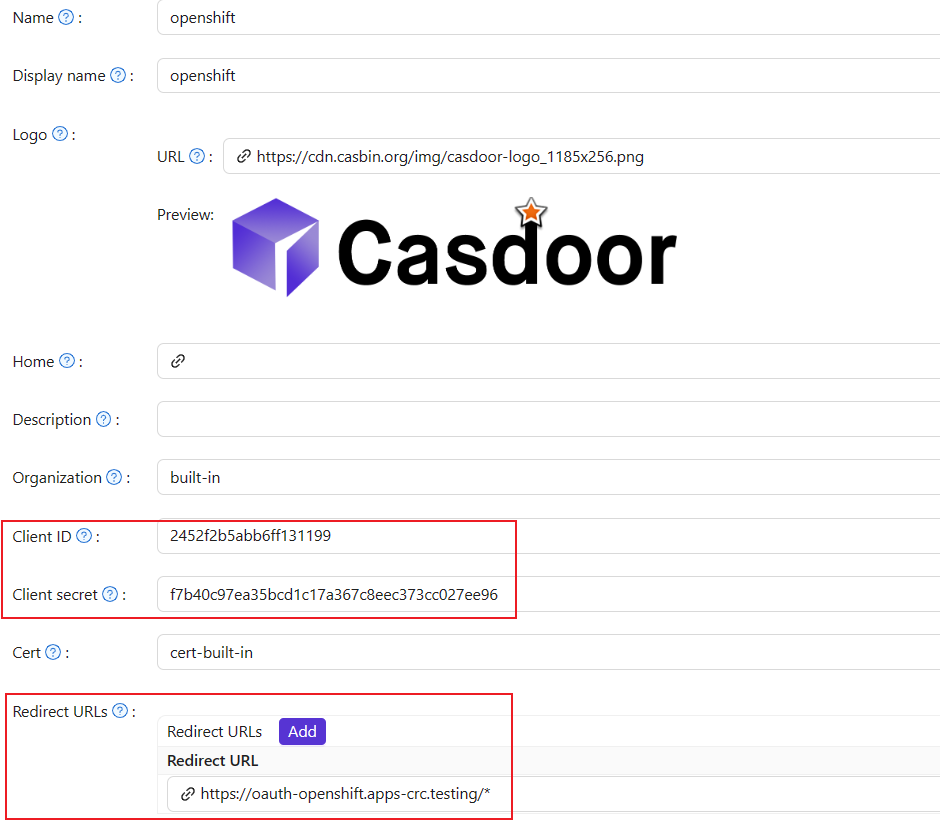

Step1. Create an Casdoor application​

Add a new application in Casdoor, note following points.

  • Remember the Client ID and Client secret for the next step.
  • The format of the Redirect URL is https://oauth-openshift.apps.<cluster_name>.<cluster_domain/*, Fill it in depending your situation

Step2. Openshift Oauth Configuration​

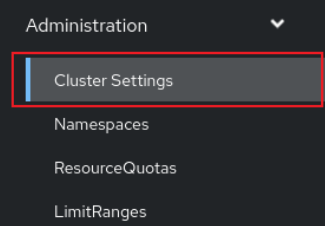

Now, login into the Openshift Console as Kubeadmin. Once you are logged In. Browse to the side menu, locate the Cluster settings

Under Global Configuration You will see Oauth

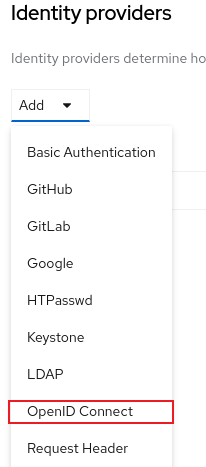

You will see the Identity Provider section. In ADD section, select the OpenID Connect from options.

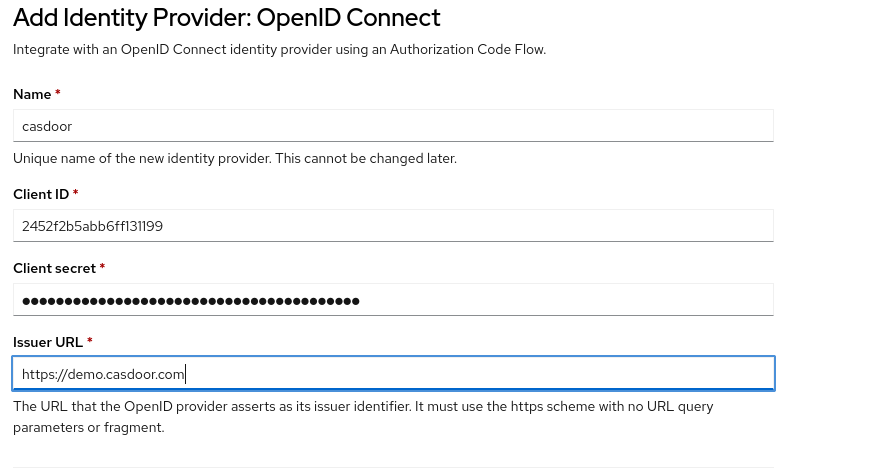

Configure OIDC, note following points.

  • Fill in the Client ID and Client Secret remembered in the previous step.
  • The Issuer URL must use https, with the form https://<casdoor-host>, again depending on your situation

Step3. Test OIDC Authentication​

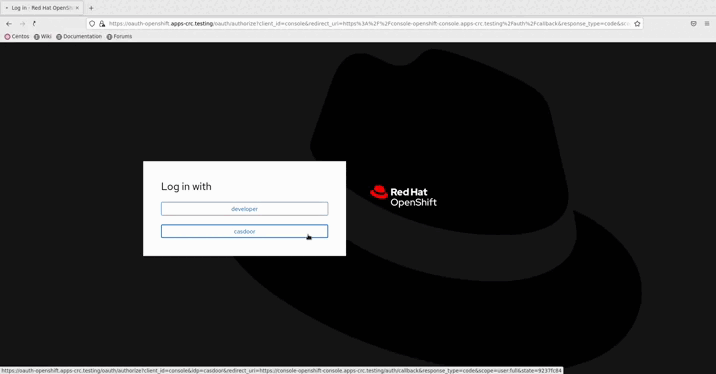

Access the Openshift console in the browser. You will see casdoor (The Name you configured in the previous step). Click on the casdoor login option. You will get redirected to the Casdoor login page.
