Before the integration, we need to deploy Casdoor locally.

Then, we can quickly implement a Casdoor-based login page in our own app by following these steps.

Step 1: Configure Casdoor application

  1. Create a new Casdoor application or use an existing one.
  2. Add a redirect URL: http://CASDOOR_HOSTNAME/login Casdoor Application Setting
  3. Copy the client ID and client secret. We will need them in the following steps.

Step 2: Add a user in Casdoor

Now that you have the application, you need to create a user and assign a role.

Go to the "Users" page and click on "Add user" in the top right corner. This will open a new page where you can add the new user.

Save the user after adding a username and selecting the organization "Thingsboard" (other details are optional).

Next, you need to set up a password for the user. You can do this by clicking on "Manage your password".

Choose a password for the user and confirm it.

Step 3: Prerequisites and Build Thingsboard App

First of all, Thingsboard only supports Java 11 (OpenJDK).

You can download it from the following link:

JDK Download Page

To start Thingsboard, follow these steps (for Windows system):

  • Download and extract the package. Download the package
  • Configure Thingsboard in \thingsboard\conf\thingsboard.yml according to your preferences, including the configuration of Kafka, PostgreSQL, and others.
  • Run install.bat –loadDemo in the command line in the Thingsboard folder to install and add demo data. Casdoor Application Setting
  • Run net start thingsboard in the command line to start Thingsboard. You should see the following output: Casdoor Application Setting

Step 4: Integrate Casdoor

Now open http://localhost:8080/ and log in to the admin account:

Account: sysadmin@thingsboard.org / Password: sysadmin

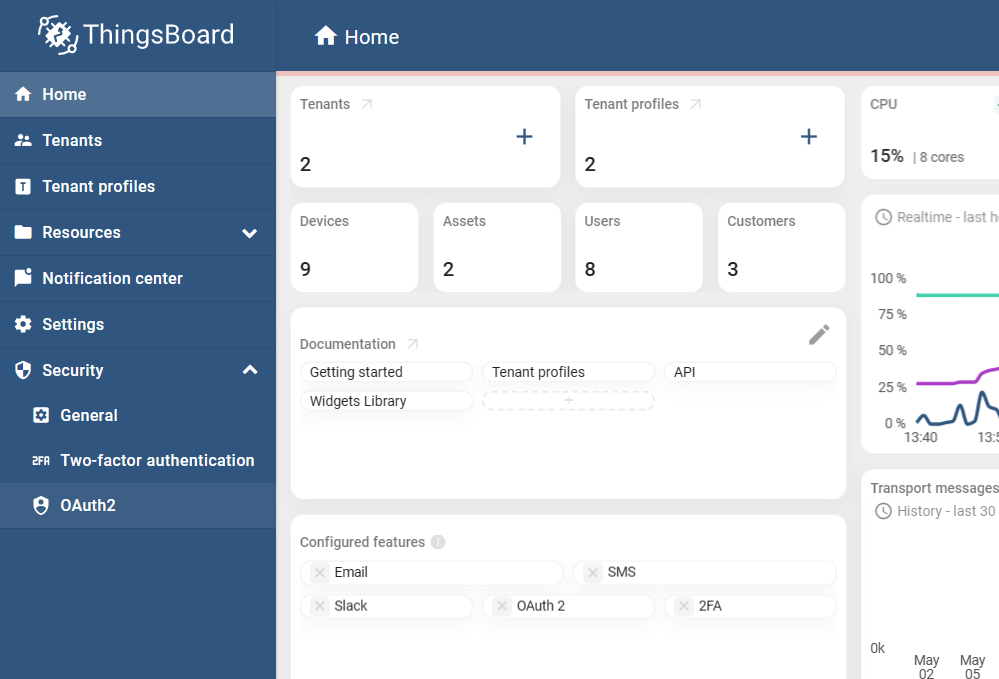

After successfully logging in, click the OAuth2 button at the bottom left of the page.

Casdoor Application Setting

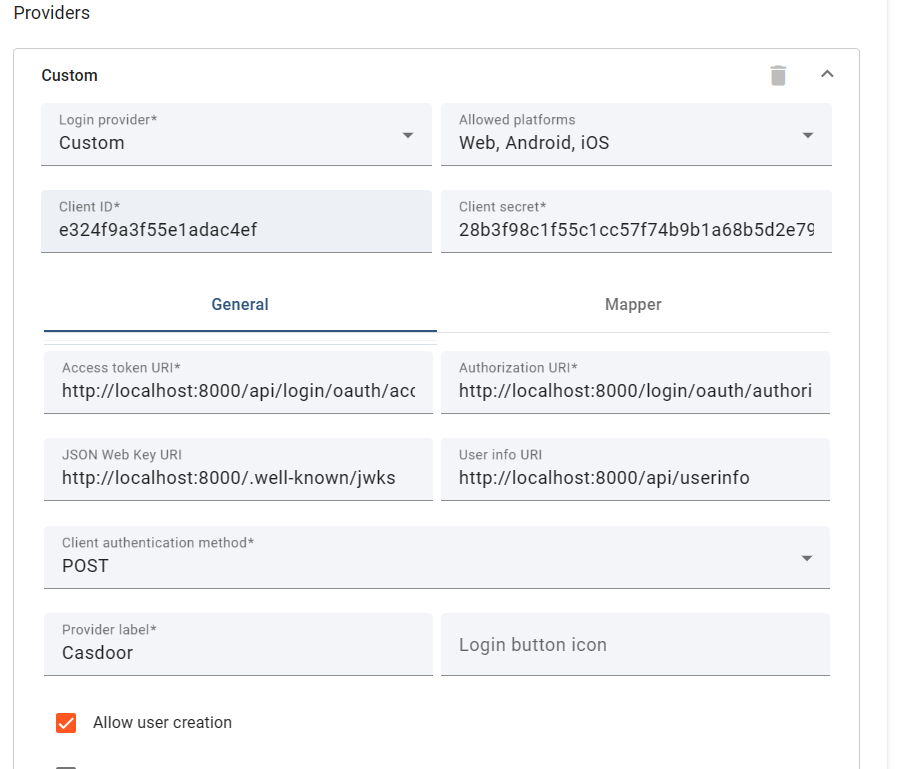

Fill in the blanks as follows:

Casdoor Application Setting

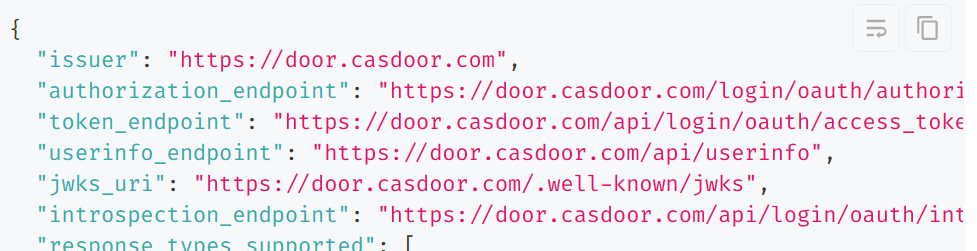

You can get these values from the following link: OIDC discovery URL Casdoor Application Setting

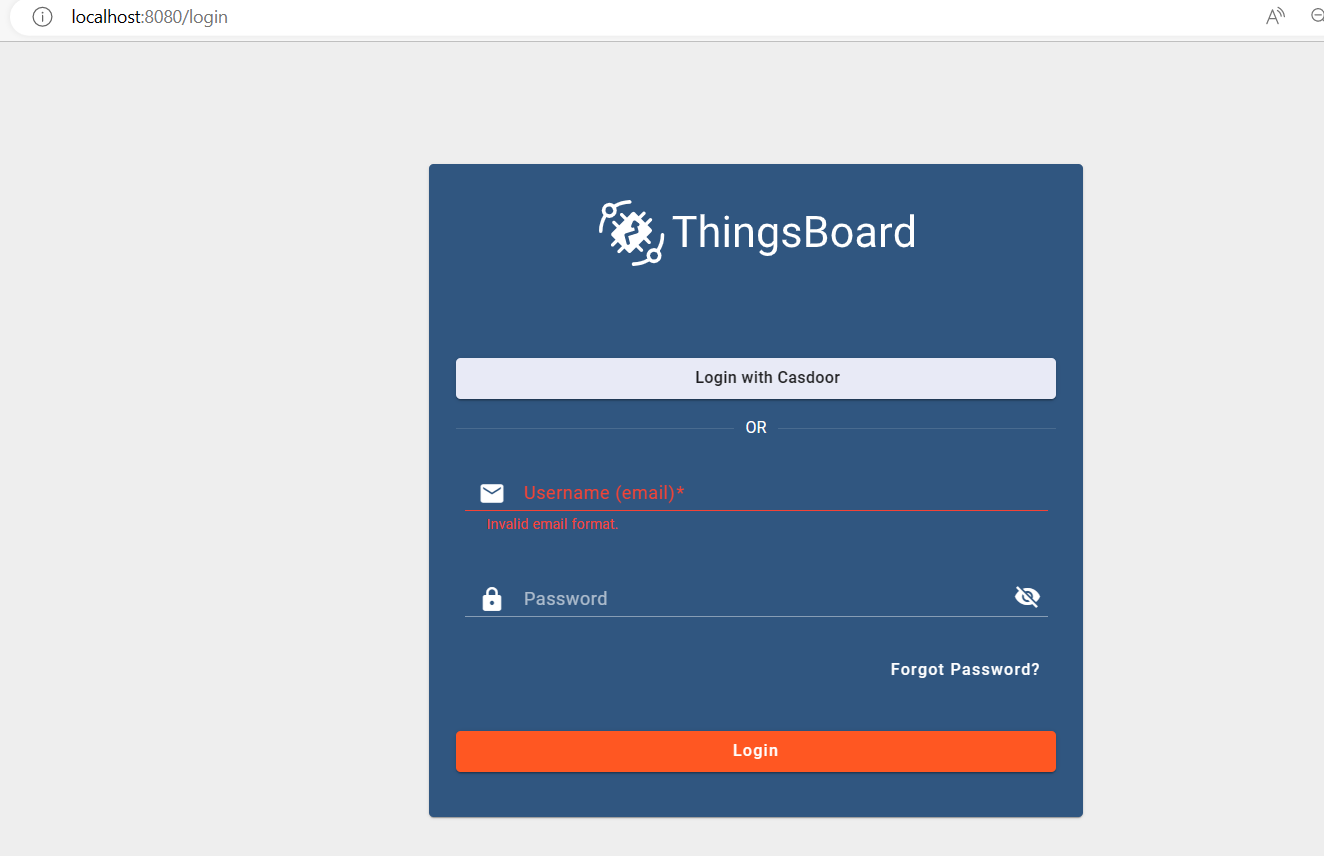

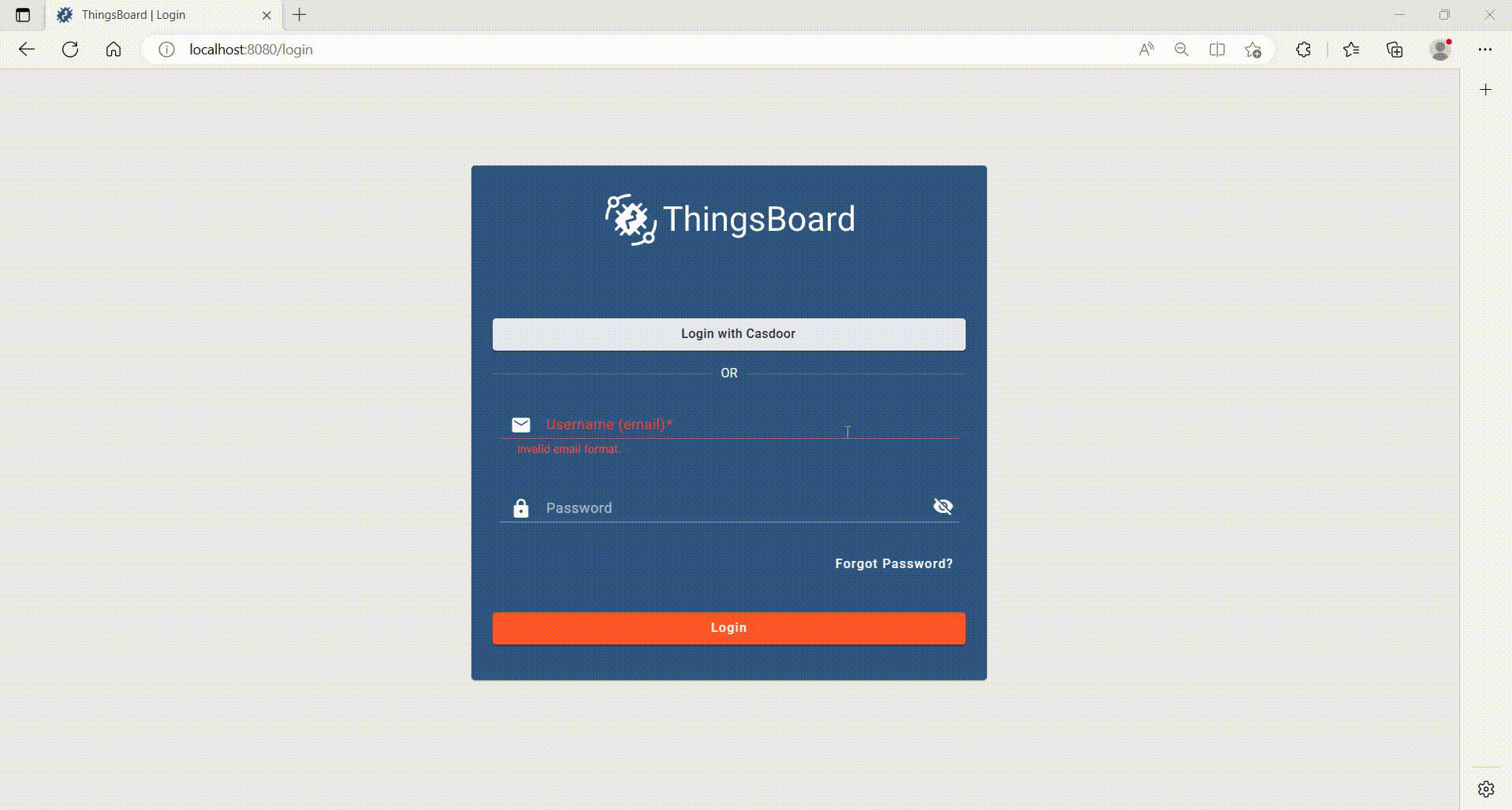

After filling in these blanks, you have successfully integrated Casdoor with Thingsboard. When you log in to http://localhost:8080/, you should see the following:

Casdoor Application Setting
