SAML IdP overview
Casdoor can act as a SAML 2.0 IdP. This page covers SP configuration, Casdoor IdP settings, and SAML attributes.
Configuration in the SP (service provider)
The SP typically needs Single Sign-On URL, Issuer, and Public Certificate. Most SPs can fill these from the Casdoor XML Metadata URL or by uploading the metadata file.
Casdoor metadata URL format: <casdoor-endpoint>/api/saml/metadata?application=admin/<application-name>
Example: if Casdoor is at https://door.casdoor.com and the application is app-built-in:
https://door.casdoor.com/api/saml/metadata?application=admin/app-built-in

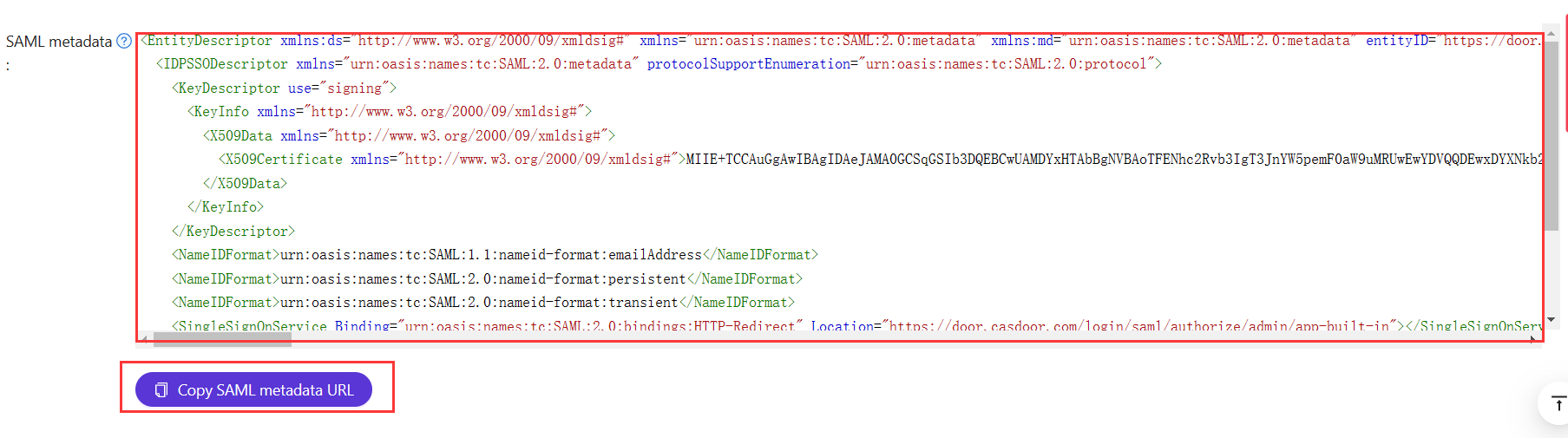

The metadata URL is also on the application edit page; copy it and open in a browser to download the XML.
在Casdoor IdP中的配置
Casdoor支持GET和POST SAMLResponse。 Configure the application in Casdoor to match the SAMLResponse binding (GET or POST) that your SP supports.
When integrating Casdoor as a SAML IdP with external identity providers (like Azure AD), the /api/acs endpoint receives SAML responses. This endpoint is configured to accept cross-origin POST requests, allowing IdPs from different domains to send authentication data.
如果您填写了Reply URL，Casdoor将通过POST请求发送SAMLResponse。 如果回复URL为空，Casdoor将使用GET请求。 您可能会想知道，如果Reply URL为空，Casdoor如何知道SP的Reply URL。 实际上，Casdoor可以通过解析SAMLRequest获取名为AssertionConsumerServiceURL的URL，并将带有SAMLResponse的请求发送到AssertionConsumerServiceURL。 Reply URL将覆盖SAMLRequest中的AssertionConsumerServiceURL。
-
回复URL：输入验证SAML响应的ACS的URL。
-
重定向URL：输入一个唯一的名称。 在您的SP中，这可能被称为
Audience或Entity ID。 确保您在此处填写的Redirect URL与您的SP中的一致。
SAML attributes
If the SP requires extra attributes in the SAML response, add them in the SAML attributes table and map user fields as needed.
If the service provider only needs NameID and not extra user attributes (Email, Name, DisplayName, Roles), enable Disable SAML attributes in the application settings. When enabled, Casdoor will omit these attributes from the SAML response, which can help avoid XML namespace issues with certain SPs that have strict validation requirements.
Assertion signature control
SAML responses from Casdoor are always signed to ensure authenticity. However, some service providers may not support or require signed assertions within the response itself. Starting from version 2.81.0, Casdoor added assertion signatures following SAML 2.0 best practices, but this caused compatibility issues with certain SPs like Sentry.
If a service provider does not handle signed assertions correctly, disable assertion signing while keeping the response envelope signed. Toggle the Enable SAML assertion signature option in your application settings to control this behavior. When disabled, Casdoor will sign only the SAML response envelope, which maintains security while ensuring compatibility with a wider range of service providers.
For example
| 名称 | Name format | Value |
|---|---|---|
https://www.aliyun.com/SAML-Role/Attributes/RoleSessionName | Unspecified | $user.name |
https://www.aliyun.com/SAML-Role/Attributes/Role | Unspecified | acs:ram::1879818006829152:role/$user.roles,acs:ram::1879818006829152:saml-provider/testa |
will generate response with external saml:Attribute
<saml:Attribute Name="https://www.aliyun.com/SAML-Role/Attributes/RoleSessionName" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
<saml:AttributeValue xsi:type="xs:string">admi122n@outlook.com</saml:AttributeValue>
</saml:Attribute>
<saml:Attribute Name="https://www.aliyun.com/SAML-Role/Attributes/Role" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
<saml:AttributeValue xsi:type="xs:string"> acs:ram::1879818006829152:role/role1,acs:ram::1879818006829152:saml-provider/testa</saml:AttributeValue>
<saml:AttributeValue xsi:type="xs:string"> acs:ram::1879818006829152:role/role2,acs:ram::1879818006829152:saml-provider/testa</saml:AttributeValue>
</saml:Attribute>
We only support insert $user.owner,$user.name,$user.email,$user.id,$user.phone,$user.roles,$user.permissions,$user.groups
用户资料
成功登录后，Casdoor返回的SAMLResponse中的用户资料有三个字段。 XML中的属性和Casdoor中的用户属性的映射如下：
| XML属性名称 | 用户字段 |
|---|---|
| 电子邮件 | 电子邮件 |
| 显示名称 | 显示名称 |
| Name | 名称 |
See https://en.wikipedia.org/wiki/SAML_2.0 for more information about SAML and its different versions.
一个例子
gosaml2是基于etree和goxmldsig的服务提供商的SAML 2.0实现，这是XML数字签名的纯Go实现。 我们使用这个库来测试Casdoor中的SAML 2.0，如下所示。
Example: Casdoor at http://localhost:7001/, application app-built-in in org built-in. Add http://localhost:6900/acs/example and http://localhost:6900/saml/acs/example to Redirect URLs in app-built-in.
import (
"crypto/x509"
"fmt"
"net/http"
"io/ioutil"
"encoding/base64"
"encoding/xml"
saml2 "github.com/russellhaering/gosaml2"
"github.com/russellhaering/gosaml2/types"
dsig "github.com/russellhaering/goxmldsig"
)
func main() {
res, err := http.Get("http://localhost:7001/api/saml/metadata?application=admin/app-built-in")
if err != nil {
panic(err)
}
rawMetadata, err := ioutil.ReadAll(res.Body)
if err != nil {
panic(err)
}
metadata := &types.EntityDescriptor{}
err = xml.Unmarshal(rawMetadata, metadata)
if err != nil {
panic(err)
}
certStore := dsig.MemoryX509CertificateStore{
Roots: []*x509.Certificate{},
}
for _, kd := range metadata.IDPSSODescriptor.KeyDescriptors {
for idx, xcert := range kd.KeyInfo.X509Data.X509Certificates {
if xcert.Data == "" {
panic(fmt.Errorf("metadata certificate(%d) must not be empty", idx))
}
certData, err := base64.StdEncoding.DecodeString(xcert.Data)
if err != nil {
panic(err)
}
idpCert, err := x509.ParseCertificate(certData)
if err != nil {
panic(err)
}
certStore.Roots = append(certStore.Roots, idpCert)
}
}
randomKeyStore := dsig.RandomKeyStoreForTest()
sp := &saml2.SAMLServiceProvider{
IdentityProviderSSOURL: metadata.IDPSSODescriptor.SingleSignOnServices[0].Location,
IdentityProviderIssuer: metadata.EntityID,
ServiceProviderIssuer: "http://localhost:6900/acs/example",
AssertionConsumerServiceURL: "http://localhost:6900/v1/_saml_callback",
SignAuthnRequests: true,
AudienceURI: "http://localhost:6900/saml/acs/example",
IDPCertificateStore: &certStore,
SPKeyStore: randomKeyStore,
}
http.HandleFunc("/v1/_saml_callback", func(rw http.ResponseWriter, req *http.Request) {
err := req.ParseForm()
if err != nil {
rw.WriteHeader(http.StatusBadRequest)
return
}
samlReponse := req.URL.Query().Get("SAMLResponse")
assertionInfo, err := sp.RetrieveAssertionInfo(samlReponse)
if err != nil {
fmt.Println(err)
rw.WriteHeader(http.StatusForbidden)
return
}
fmt.Println(assertionInfo)
if assertionInfo.WarningInfo.InvalidTime {
fmt.Println("here12:", assertionInfo.WarningInfo.InvalidTime)
rw.WriteHeader(http.StatusForbidden)
return
}
if assertionInfo.WarningInfo.NotInAudience {
fmt.Println(assertionInfo)
fmt.Println("here13:", assertionInfo.WarningInfo.NotInAudience)
rw.WriteHeader(http.StatusForbidden)
return
}
fmt.Fprintf(rw, "NameID: %s\n", assertionInfo.NameID)
fmt.Fprintf(rw, "Assertions:\n")
for key, val := range assertionInfo.Values {
fmt.Fprintf(rw, " %s: %+v\n", key, val)
}
fmt.Println(assertionInfo.Values.Get("FirstName"))
fmt.Fprintf(rw, "\n")
fmt.Fprintf(rw, "Warnings:\n")
fmt.Fprintf(rw, "%+v\n", assertionInfo.WarningInfo)
})
println("Visit this URL To Authenticate:")
authURL, err := sp.BuildAuthURL("")
if err != nil {
panic(err)
}
println(authURL)
println("Supply:")
fmt.Printf(" SP ACS URL : %s\n", sp.AssertionConsumerServiceURL)
err = http.ListenAndServe(":6900", nil)
if err != nil {
panic(err)
}
}
运行上述代码，控制台将显示以下消息。
Visit this URL To Authenticate:
http://localhost:7001/login/saml/authorize/admin/app-built-in?SAMLRequest=lFVbk6K8Fv0rFvNo2QR...
Supply:
SP ACS URL : http://localhost:6900/v1/_saml_callback

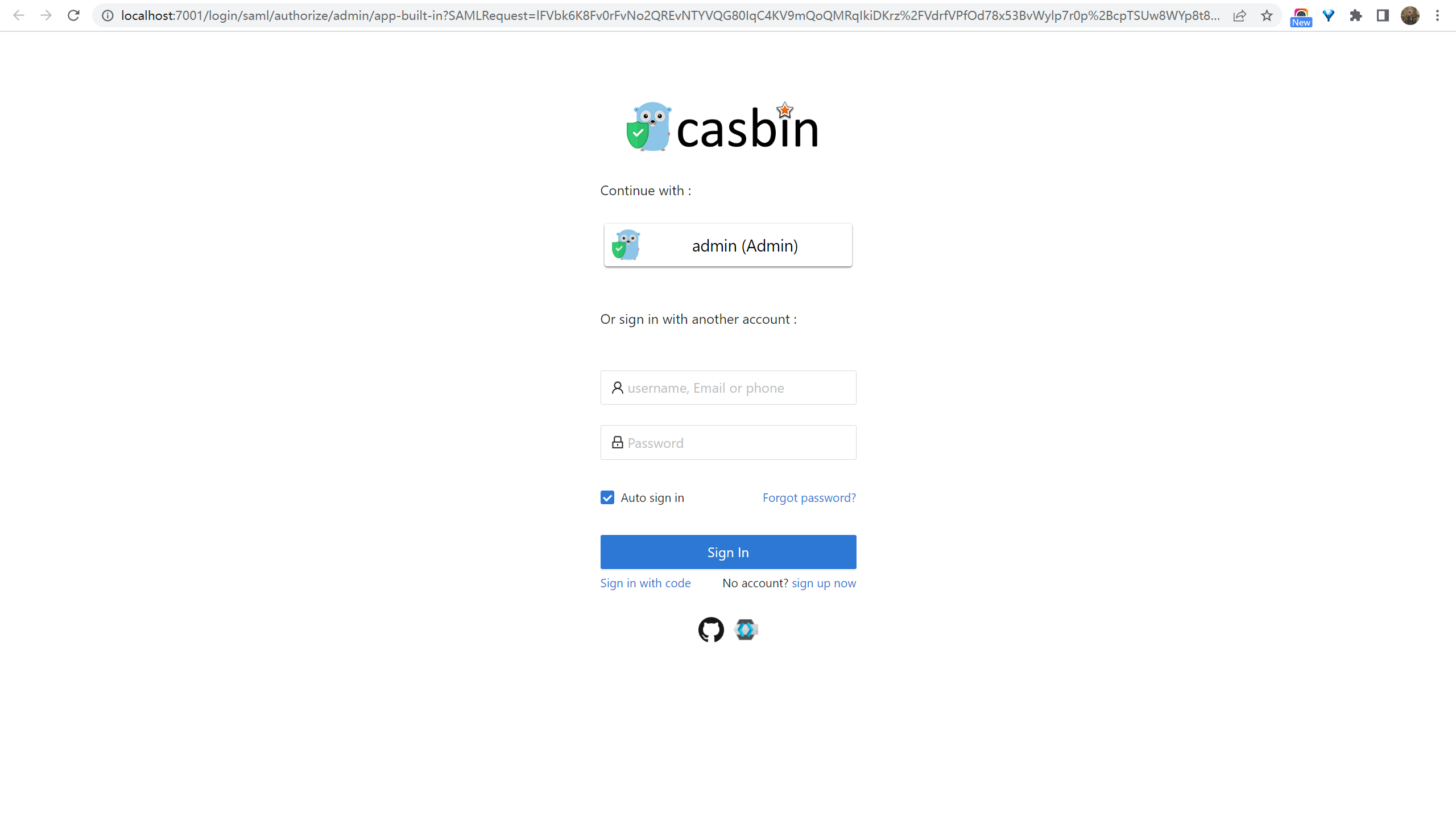

点击URL进行身份验证，Casdoor的登录页面将被显示。

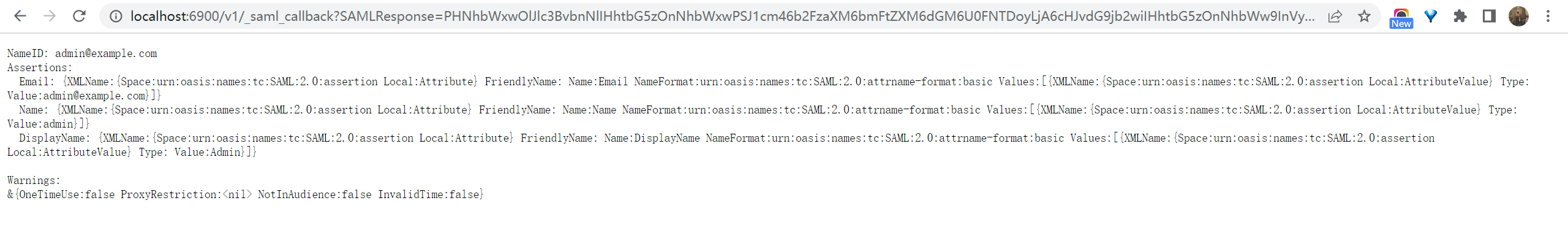

After authentication, the response looks like the examples below.
