SAML IdP overview

Casdoor can act as a SAML 2.0 IdP. This page covers SP configuration, Casdoor IdP settings, and SAML attributes.

Configuration in the SP (service provider)

The SP typically needs Single Sign-On URL, Issuer, and Public Certificate. Most SPs can fill these from the Casdoor XML Metadata URL or by uploading the metadata file.

Casdoor metadata URL format: <casdoor-endpoint>/api/saml/metadata?application=admin/<application-name>

Example: if Casdoor is at https://door.casdoor.com and the application is app-built-in:

https://door.casdoor.com/api/saml/metadata?application=admin/app-built-in

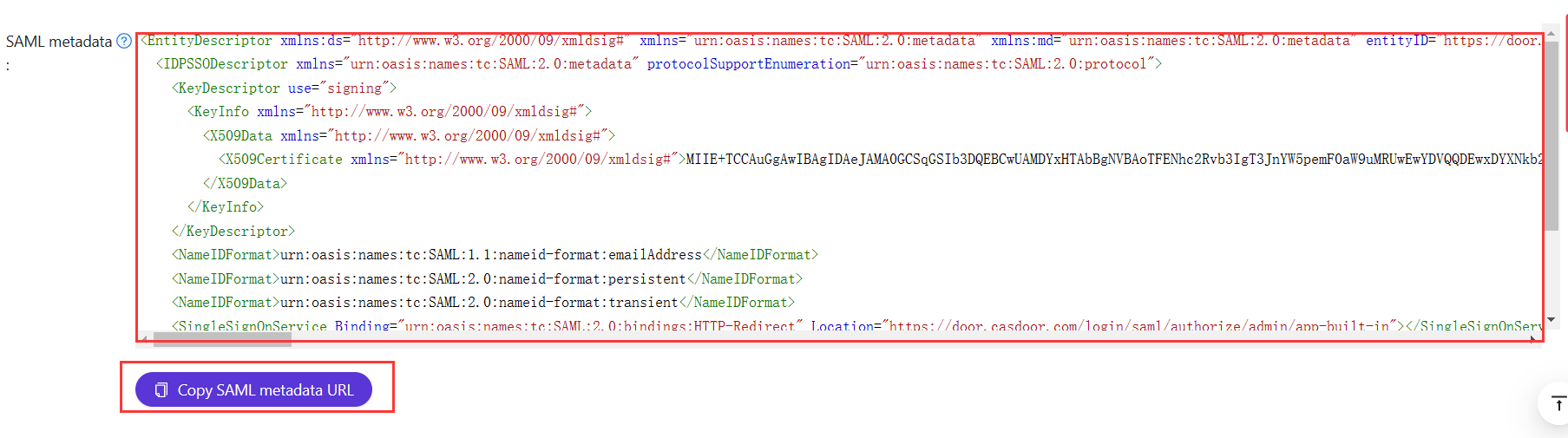

The metadata URL is also on the application edit page; copy it and open in a browser to download the XML.

métadonnées

Configuration dans Casdoor IdP

Casdoor prend en charge les requêtes GET et POST SAMLResponse. Configure the application in Casdoor to match the SAMLResponse binding (GET or POST) that your SP supports.

When integrating Casdoor as a SAML IdP with external identity providers (like Azure AD), the /api/acs endpoint receives SAML responses. This endpoint is configured to accept cross-origin POST requests, allowing IdPs from different domains to send authentication data.

info

Si vous remplissez l'URL de réponse, Casdoor enverra la SAMLResponse par requête POST. Si l'URL de réponse est vide, Casdoor utilisera la requête GET. Vous vous demandez peut-être comment Casdoor connaît l'URL de réponse du SP si l'URL de réponse est vide. En fait, Casdoor peut obtenir l'URL appelée AssertionConsumerServiceURL en analysant la SAMLRequest et envoyer la requête avec SAMLResponse à AssertionConsumerServiceURL. L'URL de réponse écrasera l'AssertionConsumerServiceURL dans la SAMLRequest.

URL de réponse : Tapez l'URL de l'ACS vérifiant la réponse SAML.
URL de redirection : Tapez un nom unique. Cela peut être appelé Audience ou Entity ID dans votre SP. Assurez-vous de remplir la même URL de redirection ici que dans votre SP.

SAML attributes

If the SP requires extra attributes in the SAML response, add them in the SAML attributes table and map user fields as needed.

If the service provider only needs NameID and not extra user attributes (Email, Name, DisplayName, Roles), enable Disable SAML attributes in the application settings. When enabled, Casdoor will omit these attributes from the SAML response, which can help avoid XML namespace issues with certain SPs that have strict validation requirements.

Assertion signature control

SAML responses from Casdoor are always signed to ensure authenticity. However, some service providers may not support or require signed assertions within the response itself. Starting from version 2.81.0, Casdoor added assertion signatures following SAML 2.0 best practices, but this caused compatibility issues with certain SPs like Sentry.

If a service provider does not handle signed assertions correctly, disable assertion signing while keeping the response envelope signed. Toggle the Enable SAML assertion signature option in your application settings to control this behavior. When disabled, Casdoor will sign only the SAML response envelope, which maintains security while ensuring compatibility with a wider range of service providers.

For example

Nom	Name format	Value
`https://www.aliyun.com/SAML-Role/Attributes/RoleSessionName`	Unspecified	`$user.name`
`https://www.aliyun.com/SAML-Role/Attributes/Role`	Unspecified	`acs:ram::1879818006829152:role/$user.roles,acs:ram::1879818006829152:saml-provider/testa`

will generate response with external saml:Attribute

<saml:Attribute Name="https://www.aliyun.com/SAML-Role/Attributes/RoleSessionName" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
    <saml:AttributeValue xsi:type="xs:string">admi122n@outlook.com</saml:AttributeValue>
</saml:Attribute>
<saml:Attribute Name="https://www.aliyun.com/SAML-Role/Attributes/Role" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
    <saml:AttributeValue xsi:type="xs:string"> acs:ram::1879818006829152:role/role1,acs:ram::1879818006829152:saml-provider/testa</saml:AttributeValue>
    <saml:AttributeValue xsi:type="xs:string"> acs:ram::1879818006829152:role/role2,acs:ram::1879818006829152:saml-provider/testa</saml:AttributeValue>
</saml:Attribute>

info

We only support insert $user.owner,$user.name,$user.email,$user.id,$user.phone,$user.roles,$user.permissions,$user.groups

Profil utilisateur

Après une connexion réussie, le profil utilisateur dans la SAMLResponse retournée de Casdoor a trois champs. Les attributs dans le XML et les attributs de l'utilisateur dans Casdoor sont mappés comme suit :

Nom d'attribut XML	Champ utilisateur
Email	email
DisplayName	displayName
Name	name

See https://en.wikipedia.org/wiki/SAML_2.0 for more information about SAML and its different versions.

Un exemple

gosaml2 est une implémentation de SAML 2.0 pour les fournisseurs de services basée sur etree et goxmldsig, une implémentation pure Go des signatures numériques XML. Nous utilisons cette bibliothèque pour tester SAML 2.0 dans Casdoor comme indiqué ci-dessous.

Example: Casdoor at http://localhost:7001/, application app-built-in in org built-in. Add http://localhost:6900/acs/example and http://localhost:6900/saml/acs/example to Redirect URLs in app-built-in.

import (
    "crypto/x509"
    "fmt"
    "net/http"

    "io/ioutil"

    "encoding/base64"
    "encoding/xml"

    saml2 "github.com/russellhaering/gosaml2"
    "github.com/russellhaering/gosaml2/types"
    dsig "github.com/russellhaering/goxmldsig"
)

func main() {
    res, err := http.Get("http://localhost:7001/api/saml/metadata?application=admin/app-built-in")
    if err != nil {
        panic(err)
    }

    rawMetadata, err := ioutil.ReadAll(res.Body)
    if err != nil {
        panic(err)
    }

    metadata := &types.EntityDescriptor{}
    err = xml.Unmarshal(rawMetadata, metadata)
    if err != nil {
        panic(err)
    }

    certStore := dsig.MemoryX509CertificateStore{
        Roots: []*x509.Certificate{},
    }

    for _, kd := range metadata.IDPSSODescriptor.KeyDescriptors {
        for idx, xcert := range kd.KeyInfo.X509Data.X509Certificates {
            if xcert.Data == "" {
                panic(fmt.Errorf("metadata certificate(%d) must not be empty", idx))
            }
            certData, err := base64.StdEncoding.DecodeString(xcert.Data)
            if err != nil {
                panic(err)
            }

            idpCert, err := x509.ParseCertificate(certData)
            if err != nil {
                panic(err)
            }

            certStore.Roots = append(certStore.Roots, idpCert)
        }
    }

    randomKeyStore := dsig.RandomKeyStoreForTest()

    sp := &saml2.SAMLServiceProvider{
        IdentityProviderSSOURL:      metadata.IDPSSODescriptor.SingleSignOnServices[0].Location,
        IdentityProviderIssuer:      metadata.EntityID,
        ServiceProviderIssuer:       "http://localhost:6900/acs/example",
        AssertionConsumerServiceURL: "http://localhost:6900/v1/_saml_callback",
        SignAuthnRequests:           true,
        AudienceURI:                 "http://localhost:6900/saml/acs/example",
        IDPCertificateStore:         &certStore,
        SPKeyStore:                  randomKeyStore,
    }

    http.HandleFunc("/v1/_saml_callback", func(rw http.ResponseWriter, req *http.Request) {
        err := req.ParseForm()
        if err != nil {
            rw.WriteHeader(http.StatusBadRequest)
            return
        }
        samlReponse := req.URL.Query().Get("SAMLResponse")
        assertionInfo, err := sp.RetrieveAssertionInfo(samlReponse)
        if err != nil {
            fmt.Println(err)
            rw.WriteHeader(http.StatusForbidden)
            return
        }
        fmt.Println(assertionInfo)
        if assertionInfo.WarningInfo.InvalidTime {
            fmt.Println("here12:", assertionInfo.WarningInfo.InvalidTime)
            rw.WriteHeader(http.StatusForbidden)
            return
        }

        if assertionInfo.WarningInfo.NotInAudience {
            fmt.Println(assertionInfo)
            fmt.Println("here13:", assertionInfo.WarningInfo.NotInAudience)
            rw.WriteHeader(http.StatusForbidden)
            return
        }

        fmt.Fprintf(rw, "NameID: %s\n", assertionInfo.NameID)

        fmt.Fprintf(rw, "Assertions:\n")

        for key, val := range assertionInfo.Values {
            fmt.Fprintf(rw, "  %s: %+v\n", key, val)
        }
        fmt.Println(assertionInfo.Values.Get("FirstName"))
        fmt.Fprintf(rw, "\n")

        fmt.Fprintf(rw, "Warnings:\n")
        fmt.Fprintf(rw, "%+v\n", assertionInfo.WarningInfo)
    })

    println("Visit this URL To Authenticate:")
    authURL, err := sp.BuildAuthURL("")
    if err != nil {
        panic(err)
    }

    println(authURL)

    println("Supply:")
    fmt.Printf("  SP ACS URL      : %s\n", sp.AssertionConsumerServiceURL)

    err = http.ListenAndServe(":6900", nil)
    if err != nil {
        panic(err)
    }
}

Exécutez le code ci-dessus, et la console affichera le message suivant.

Visit this URL To Authenticate:
http://localhost:7001/login/saml/authorize/admin/app-built-in?SAMLRequest=lFVbk6K8Fv0rFvNo2QR...
Supply:
  SP ACS URL      : http://localhost:6900/v1/_saml_callback

Cliquez sur l'URL pour vous authentifier, et la page de connexion de Casdoor s'affichera.

connexion

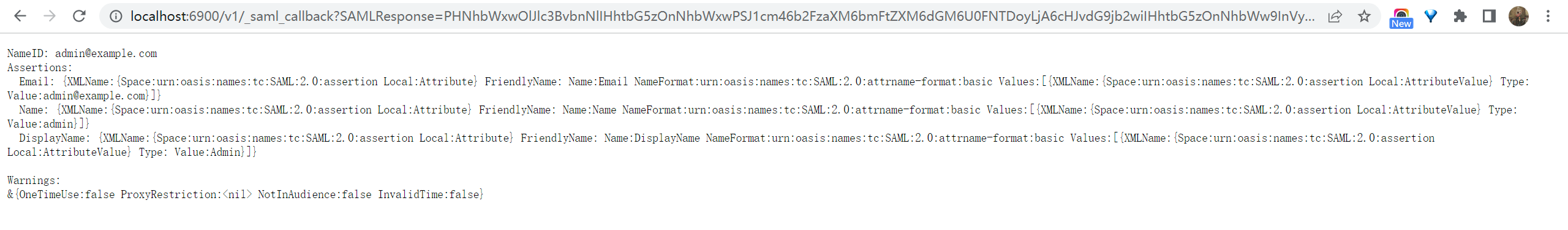

After authentication, the response looks like the examples below.

réponse
