Google Workspace (SAML)

This guide configures Casdoor as a SAML identity provider for Google Workspace single sign-on.

Add a certificate in Casdoor​

Create an X.509 certificate with RSA in Casdoor and download it.

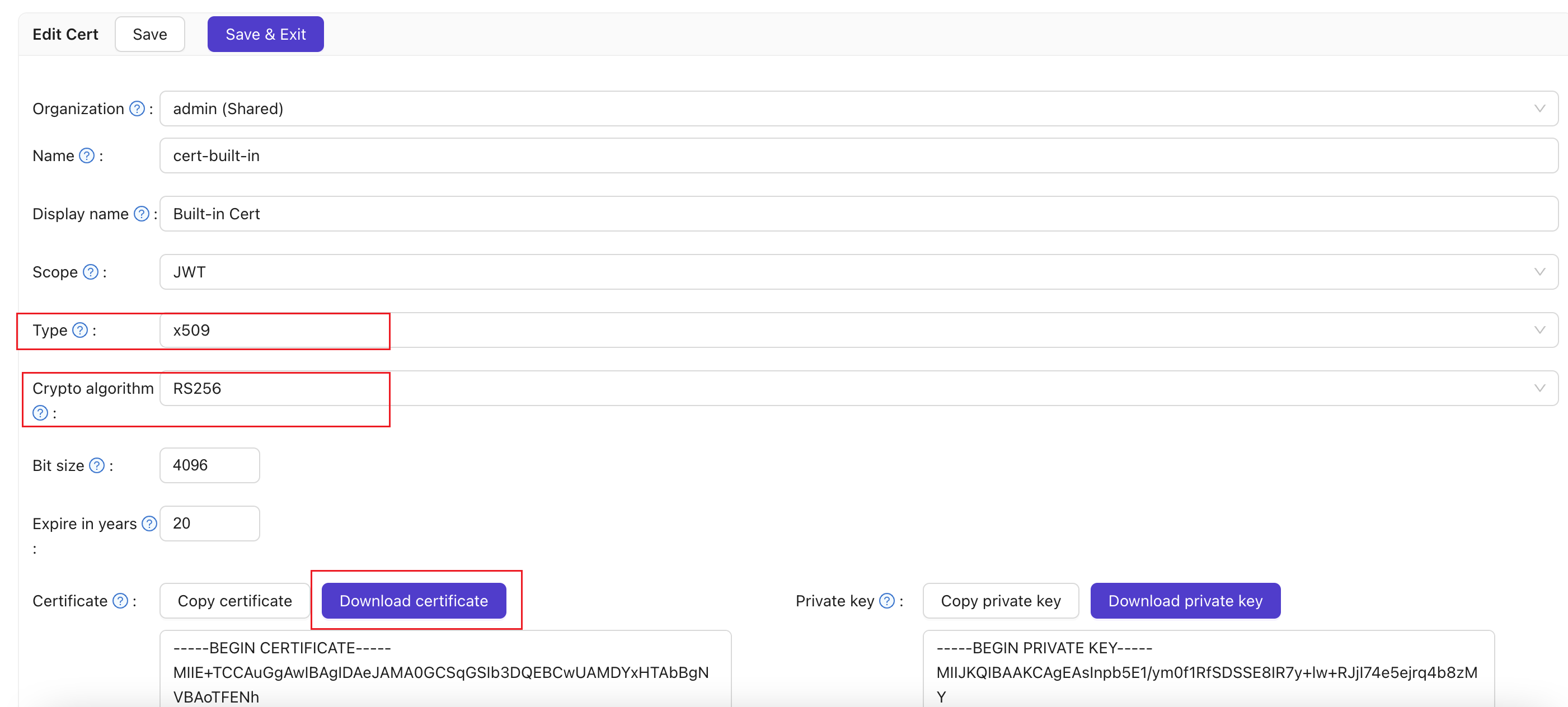

Adicionar cert

Configure the SAML application in Casdoor​

  1. On the application edit page, select the certificate and add your Google domain (e.g. google.com) to Redirect URLs.
  2. Set SAML reply URL to https://www.google.com/a/<your-domain>/acs. See SSO assertion requirements for the ACS URL.
  3. Copy the Sign-in page URL for the next step.

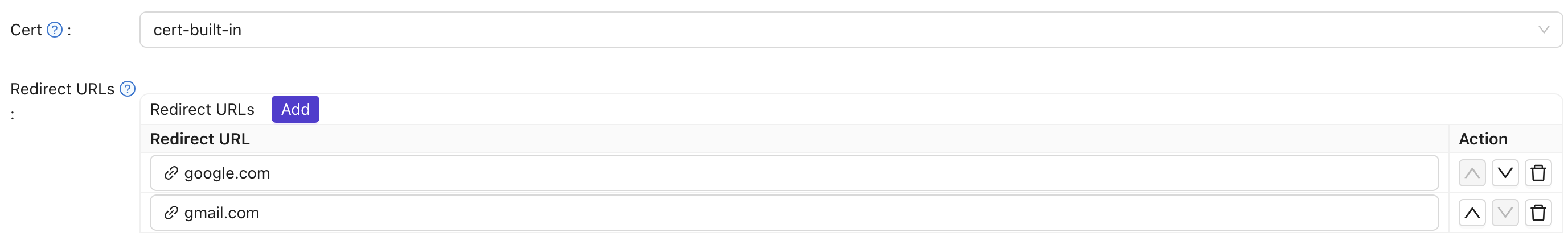

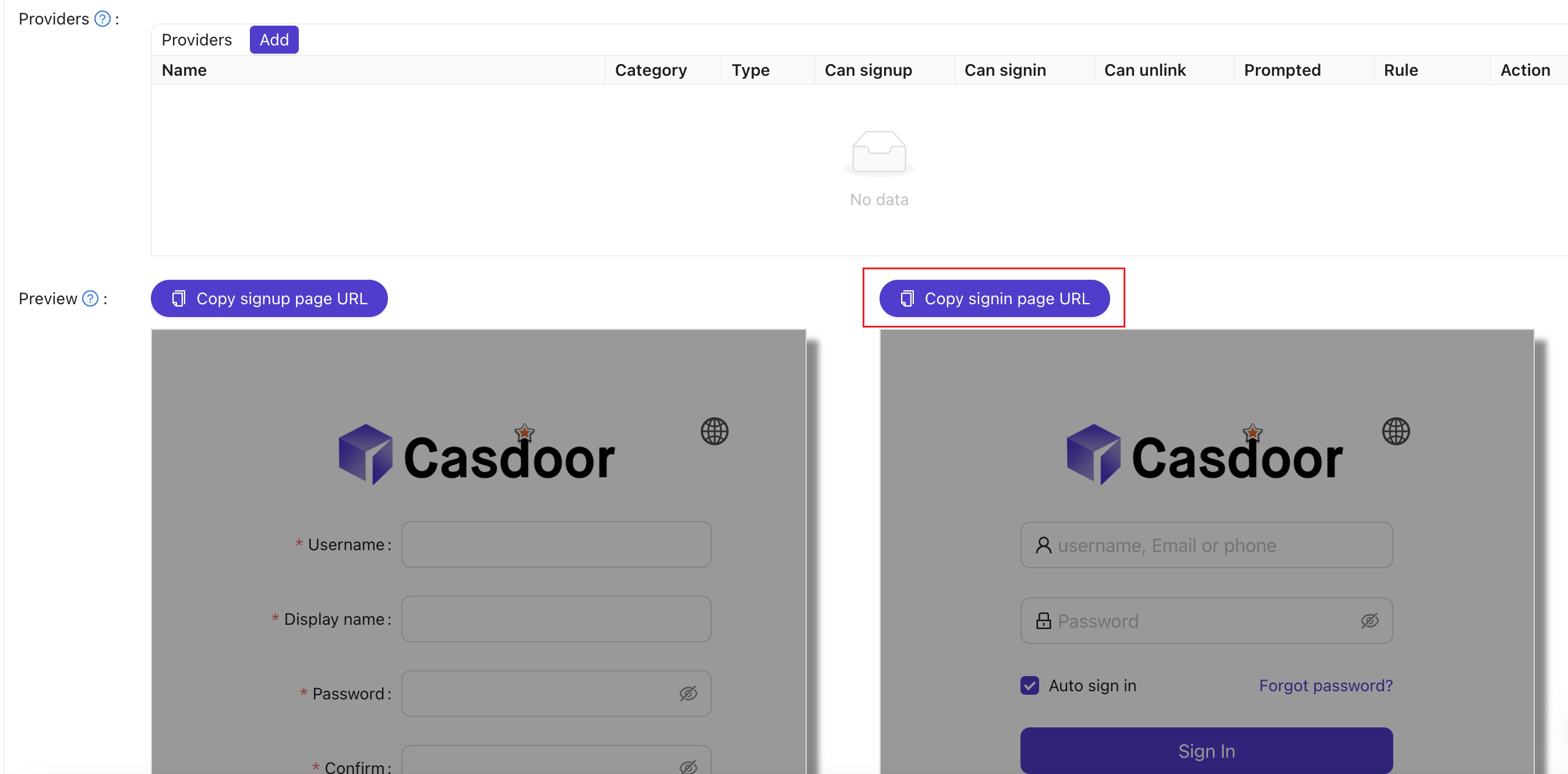

Selecionar cert e adicionar URLs de redirecionamento Enter the SAML reply URL field Copie o URL da página de login

Add third-party SAML IdP in Google Workspace​

  1. In Google Workspace Admin → Security → Overview, find SSO with third-party IdP.
  2. Click Add SSO profile and enable Set up SSO with third-party identity provider.
  3. Paste the Casdoor sign-in page URL into Sign-in page URL and Sign-out page URL.
  4. Upload the certificate you downloaded from Casdoor and save.

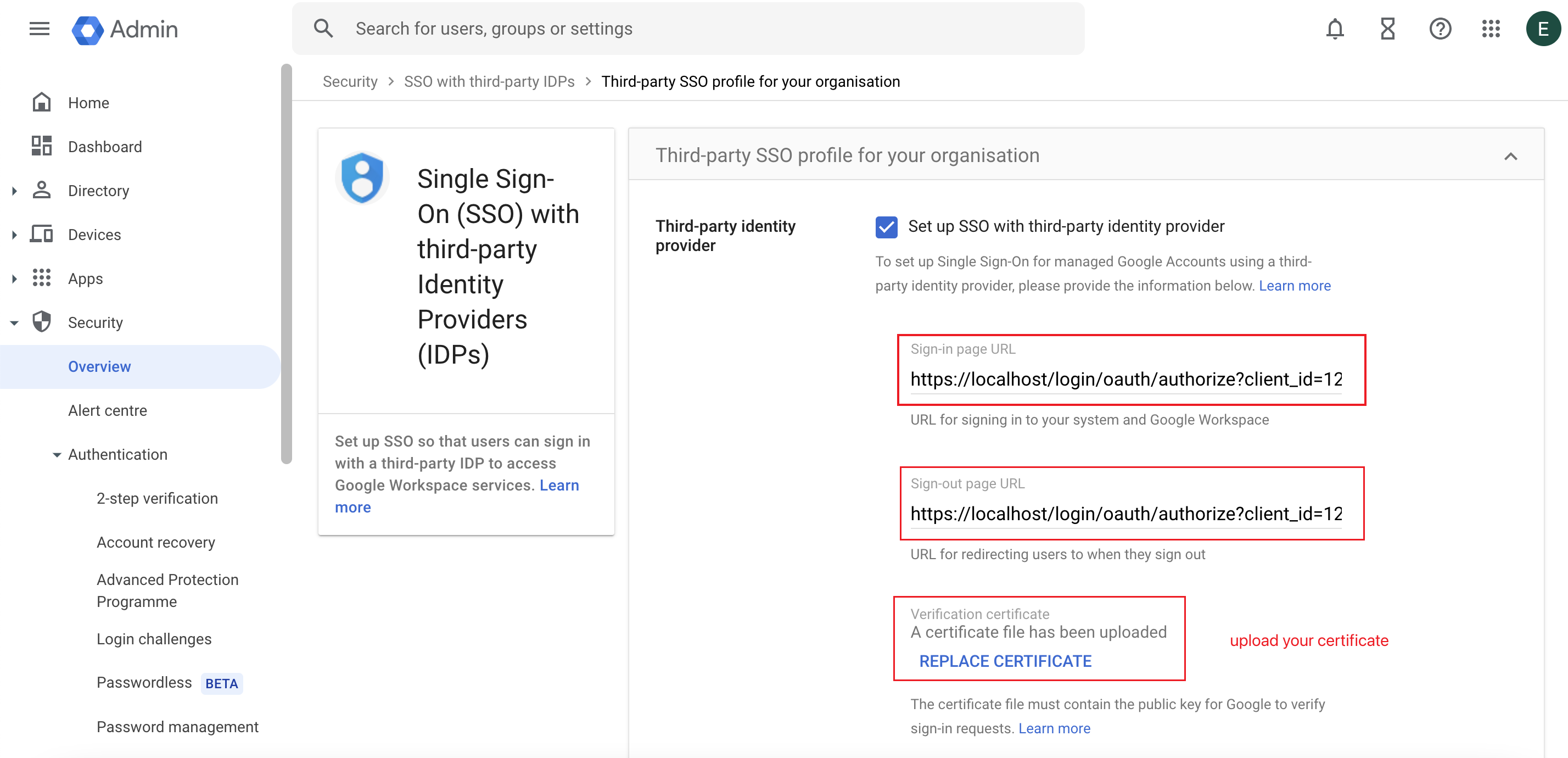

Configurar Google Workspace

Test with a user​

  1. In Google Workspace, create a user (e.g. username test).
  2. In Casdoor, create a user with the same username in the correct organization and set their email.

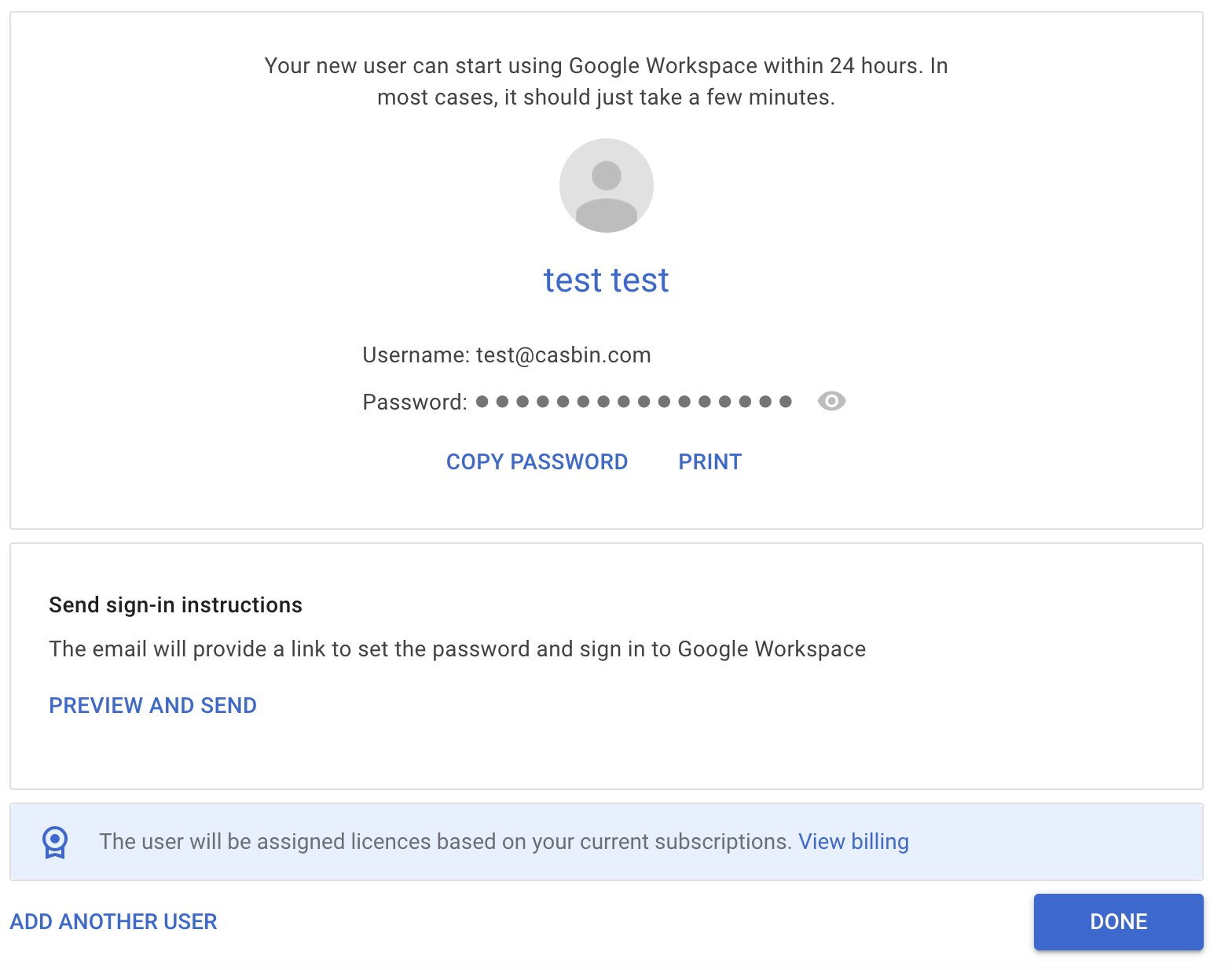

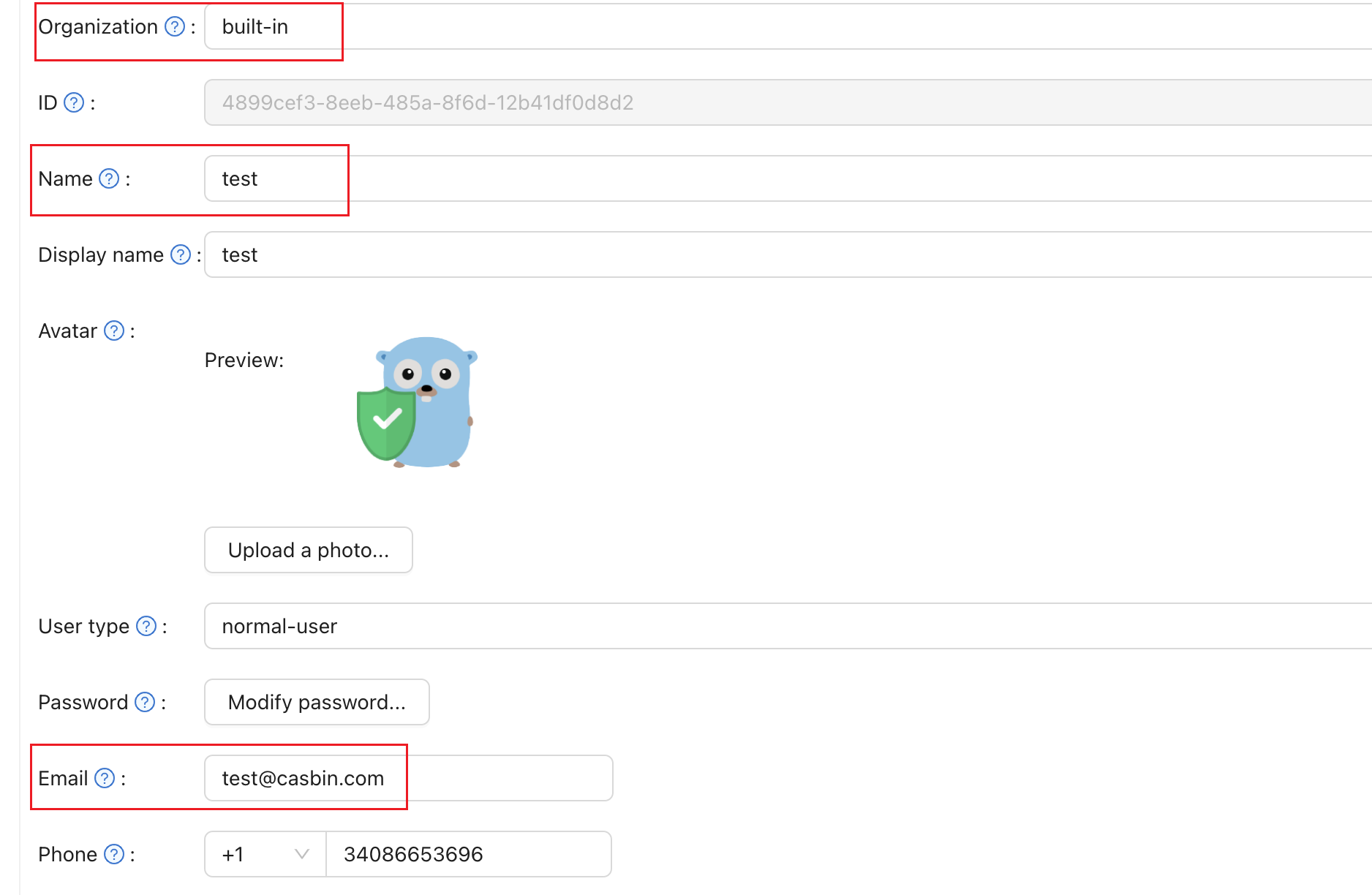

Adicionar um usuário no Google Workspace Adicionar um usuário no Casdoor

Sign-in flow: open the Google app (e.g. google.com) → sign in with the user’s email → redirect to Casdoor → enter Casdoor credentials → redirect back to Google when successful.

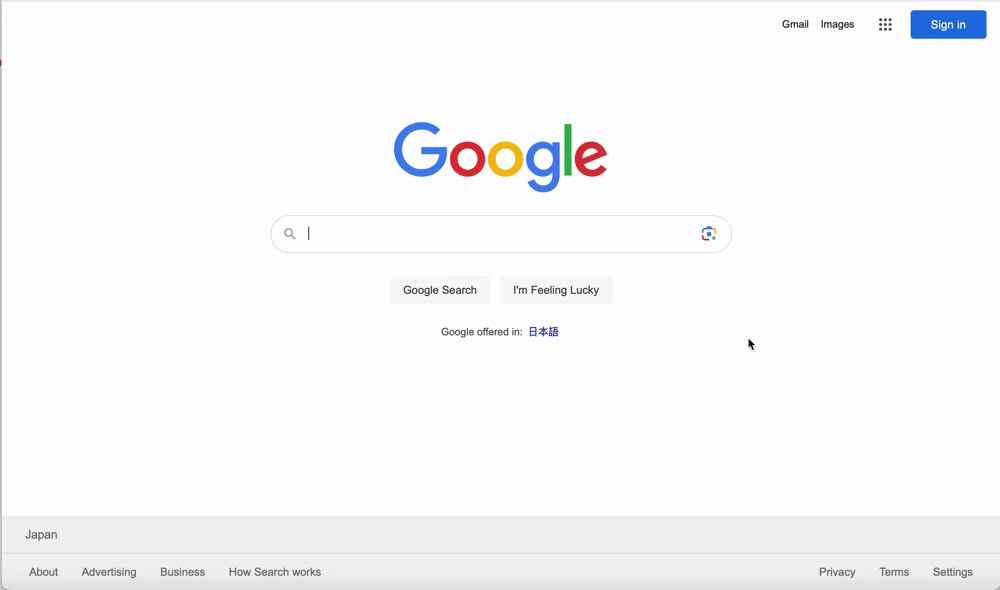

Resultado final
