WeCom syncer

The WeCom syncer imports users from your WeCom organization into Casdoor. It uses the WeCom API to fetch users from all departments and keeps data in sync.

Configuration

Required fields:

• Organization: The Casdoor organization where users will be imported
• Name: A unique name for this syncer
• Type: Select "WeCom"
• Corp ID: Your WeCom organization's Corp ID
• Corp Secret: The secret for your WeCom application

Setup Steps

Step 1: Obtain WeCom Credentials

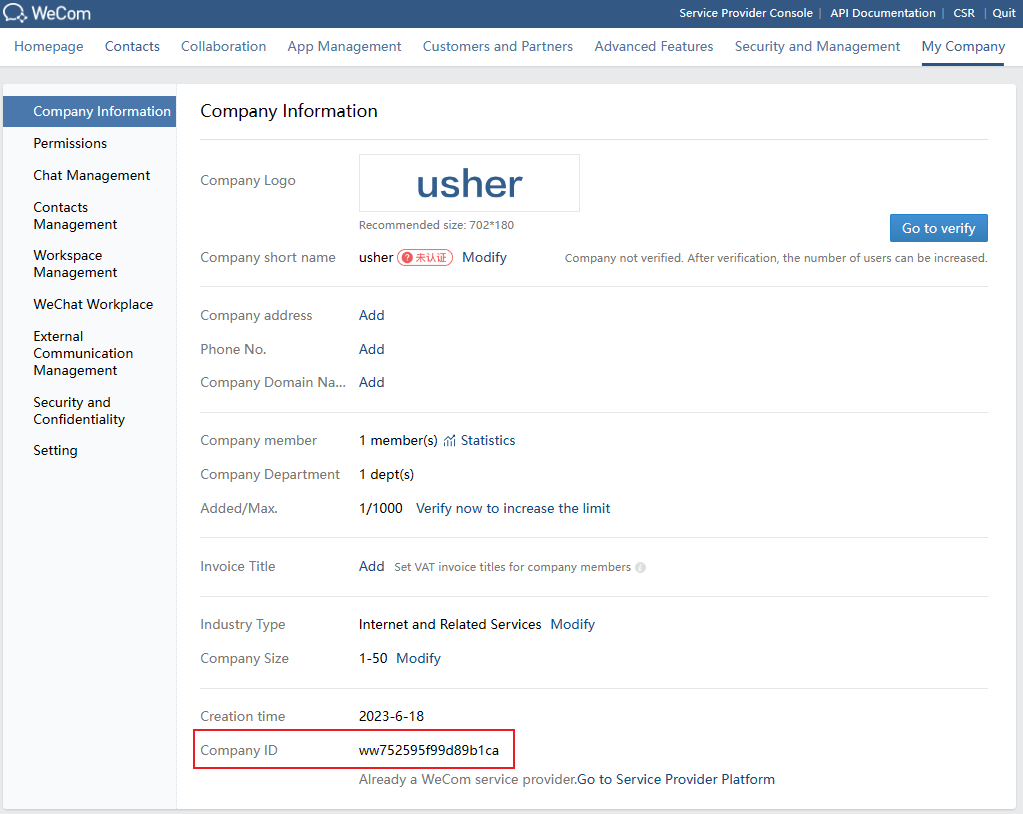

In your WeCom management platform, navigate to My Company, get Corp ID in Company Information.

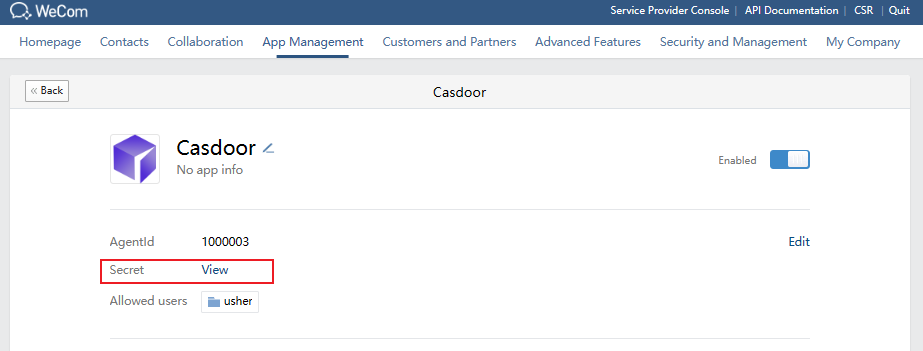

In your Self-build App, get App secret (Corp Secret).

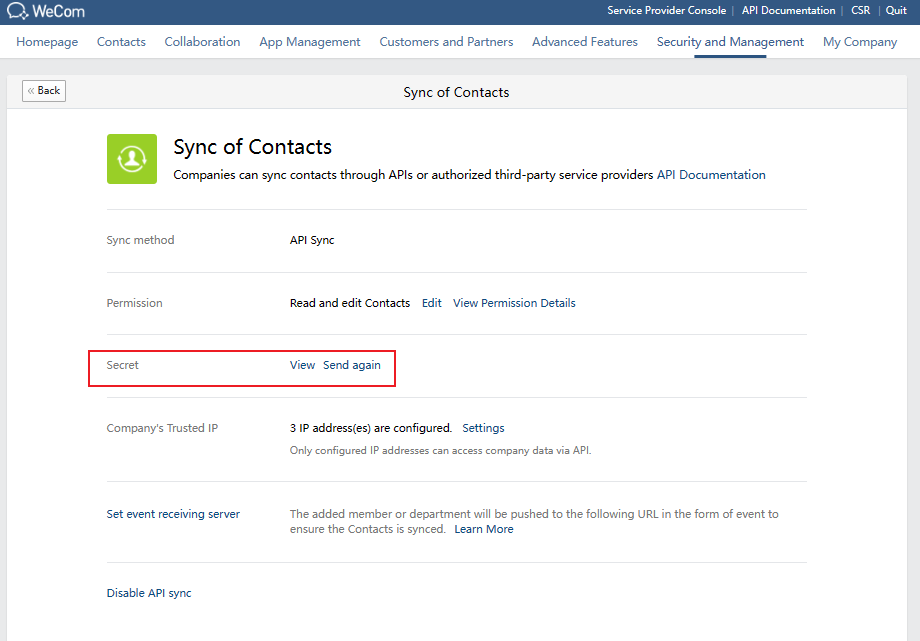

Optionally, in Sync of Contacts Management Tool, you can get Sync of Contacts secret for advanced configurations.

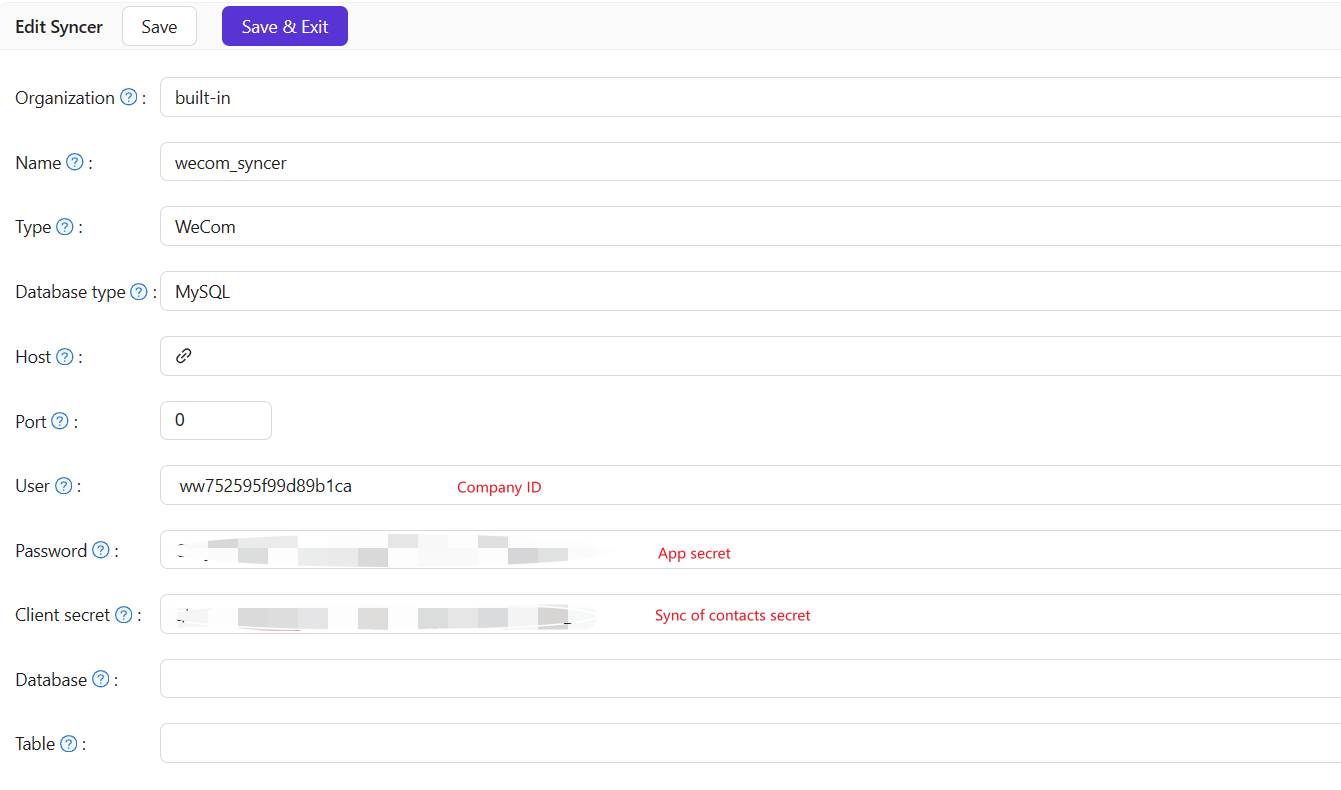

Step 2: Configure the Syncer in Casdoor

Go to Syncers tab, select WeCom type and fill in the required information:

• Enter your WeCom Corp ID in the Corp ID field
• Enter your application Secret (App secret) in the Corp Secret field

Then save the changes.

Click Test Connection to verify your credentials before enabling the syncer.

Field Mappings

The syncer automatically maps WeCom user fields to Casdoor user fields:

WeCom Field	Casdoor Field	Description
userid	Id	User's unique identifier
name	DisplayName	User's display name
email	Email	Email address
mobile	Phone	Phone number
avatar	Avatar	Profile picture URL
position	Title	Job title
gender	Gender	Gender (1=Male, 2=Female)
status/enable	IsForbidden	Account status

The syncer automatically handles user account status based on WeCom's status and enable fields:

• Activated users (status=1, enable=1): Normal Casdoor users
• Disabled, not activated, or quit users (status=2/4/5 or enable=0): Marked as forbidden in Casdoor

Running the Syncer

After configuration, you can:

• Enable Is enabled to allow automatic synchronization on schedule
• Use the Sync button to manually trigger a synchronization
• The syncer will fetch users from all departments and deduplicate them automatically
