Using Casdoor for authentication in ShowDoc

ShowDoc is an online API documentation, technical documentation tool perfect for IT teams. Showdoc makes it easy to use Markdown syntax to write beautiful API documents, data dictionary documents, technical documents, online Excel documents, and more.

Showdoc supports 3rd-party authentication including Oauth. Here is the tutorial for achieving this.

step1. Create an Casdoor application

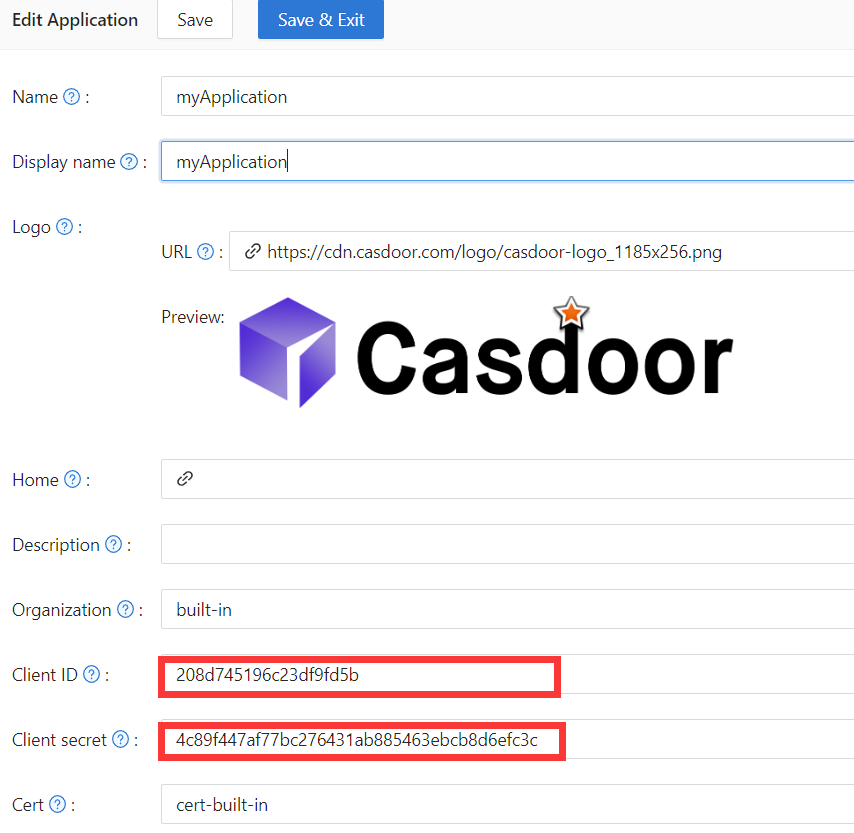

Go to your Casdoor and add your new application Showdoc. Here is an example of creating the Showdoc application in Casdoor.


Please remember the client ID and client Secret for next step.


Please don't fill in the callback url in this step. The url depends on the configurations on showdoc in next step. Later we will come back to set a correct callback url.

step2. Configure Showdoc

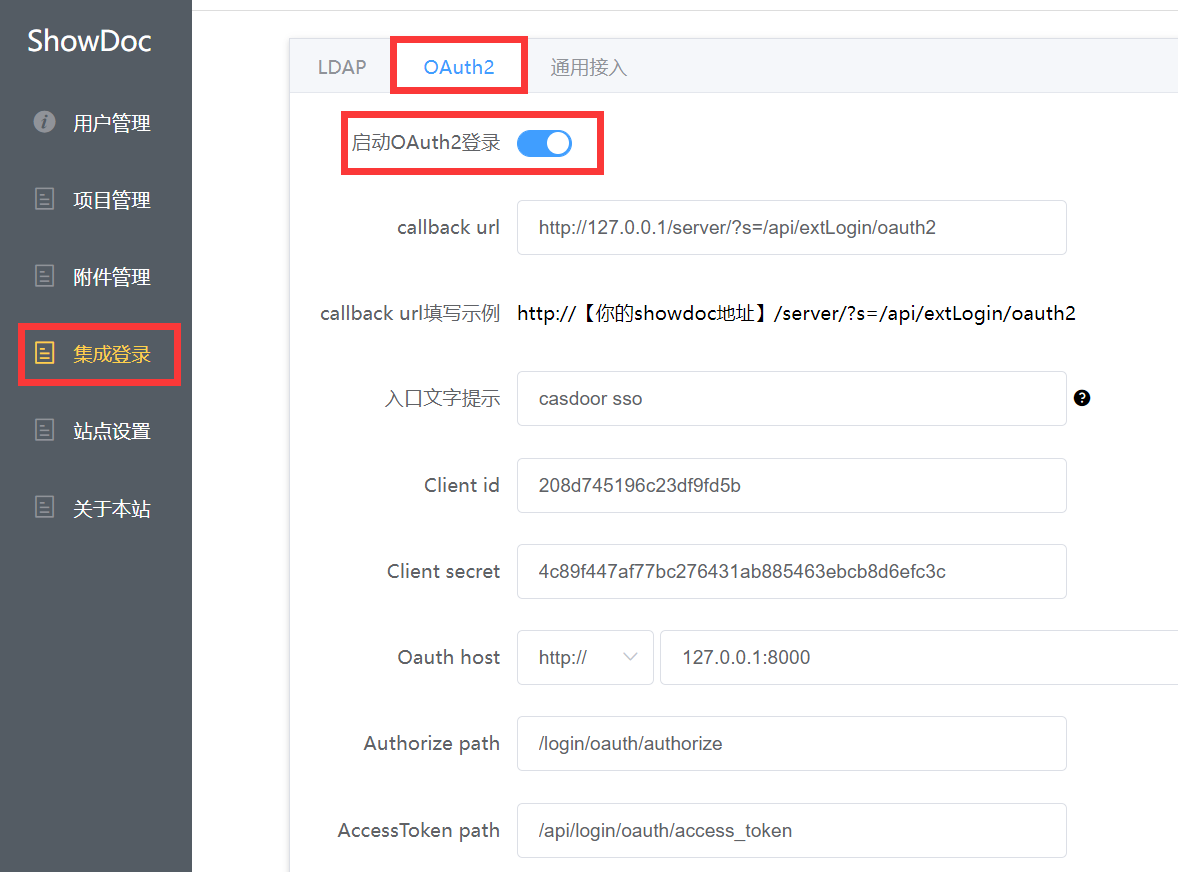

First, start the oAuth2 login button. Then fill in the callback url as shown in the example. Fill in the client ID and client secret remembered in previous step. showdoc_oauth2.png

Authorize path, AccessToken path, User info path are required. You can fill as shown below.

Authorize path:   /login/oauth/authorize
AccessToken path: /api/login/oauth/access_token
User info path: /api/get-account

step3. Configure the callback url in casdoor

Go back to the application edit page in step 1, and add the callback url you filled in showdoc. showdoc_callbackurl.png

step4. Have a try on showdoc

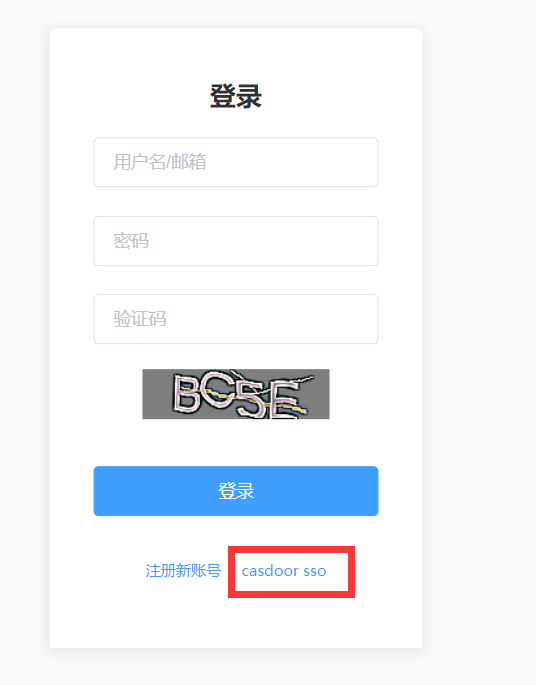

You are supposed to see this in login page:


Congratulations! You have completed all the steps. Press the 'casdoor sso' button and you will be redirected to casdoor login page.
