Azure Blob

note

This is an example of Azure Blob.

Step 1: Select Azure Blob

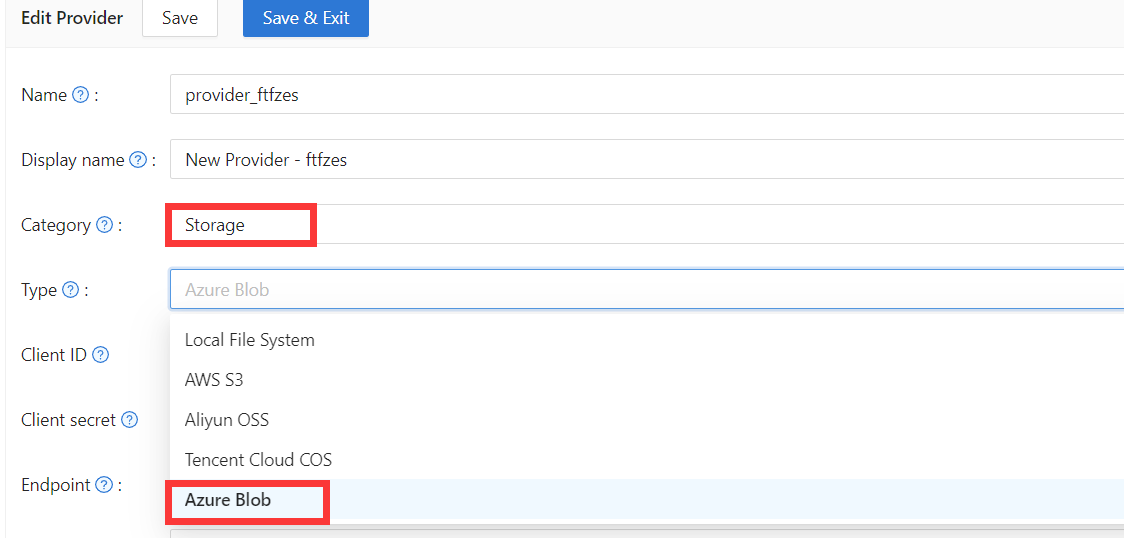

Select Azure Blob as the storage type. azureSelect.png

Step 2: Fill in the necessary information in Casdoor

There are four required fields: Client ID, Client secret, Endpoint, and Bucket. The corresponding relationship to the Azure Blob account is as follows:

Field NameAzure NameRequired
Client IDAccountNameRequired
Client secretAccountKeyRequired
EndpointContainerUrlRequired
Endpoint (intranet)PrivateEndpoint
BucketContainerNameRequired
Path prefix
DomainDomainName
  • AccountName

The AccountName is your AccountName.

  • AccountKey

The AccountKey is your key to access the Azure API.

note

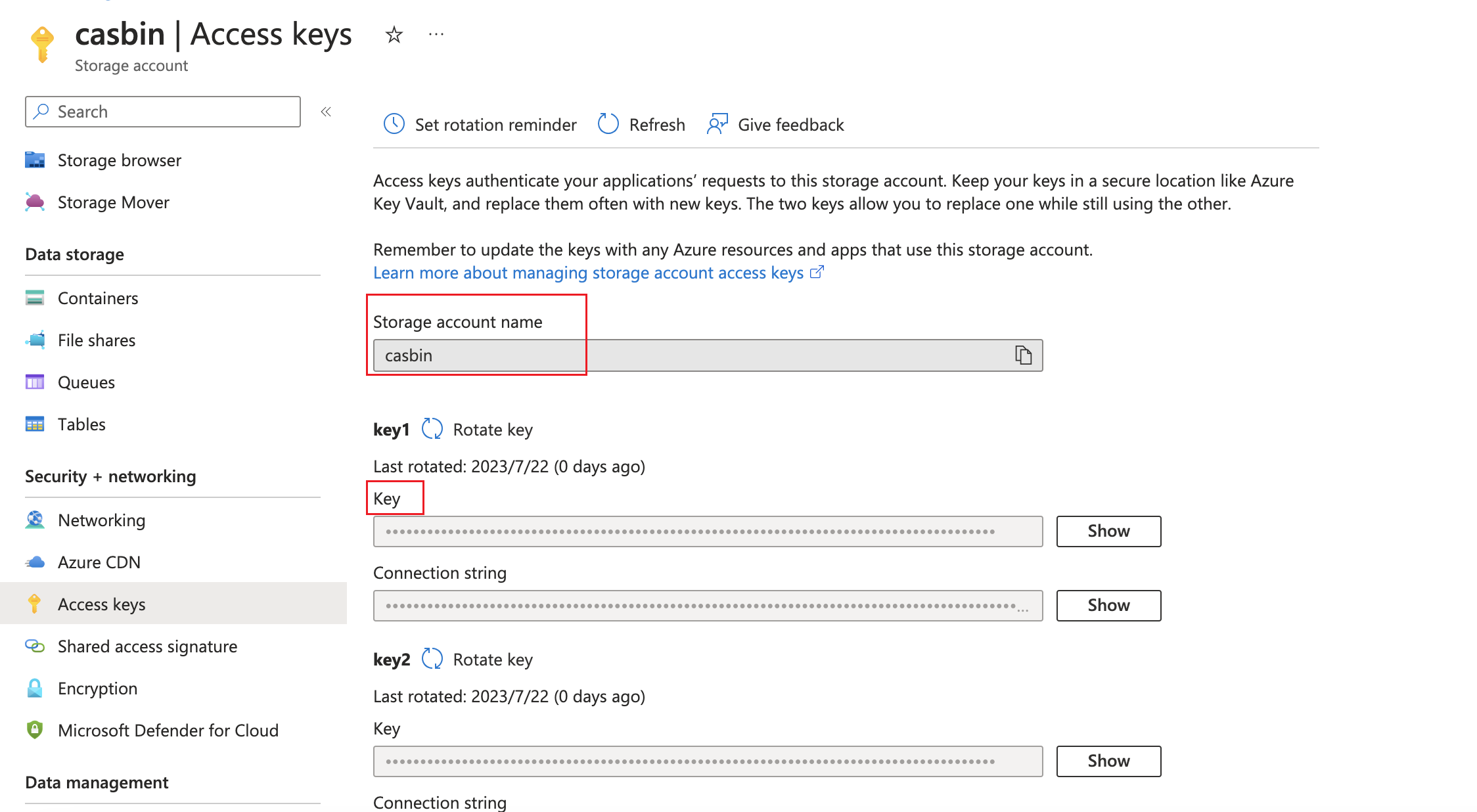

You can obtain your account key from the Azure Portal under the "Access Keys" section on the left-hand pane of your storage account.


  • ContainerUrl

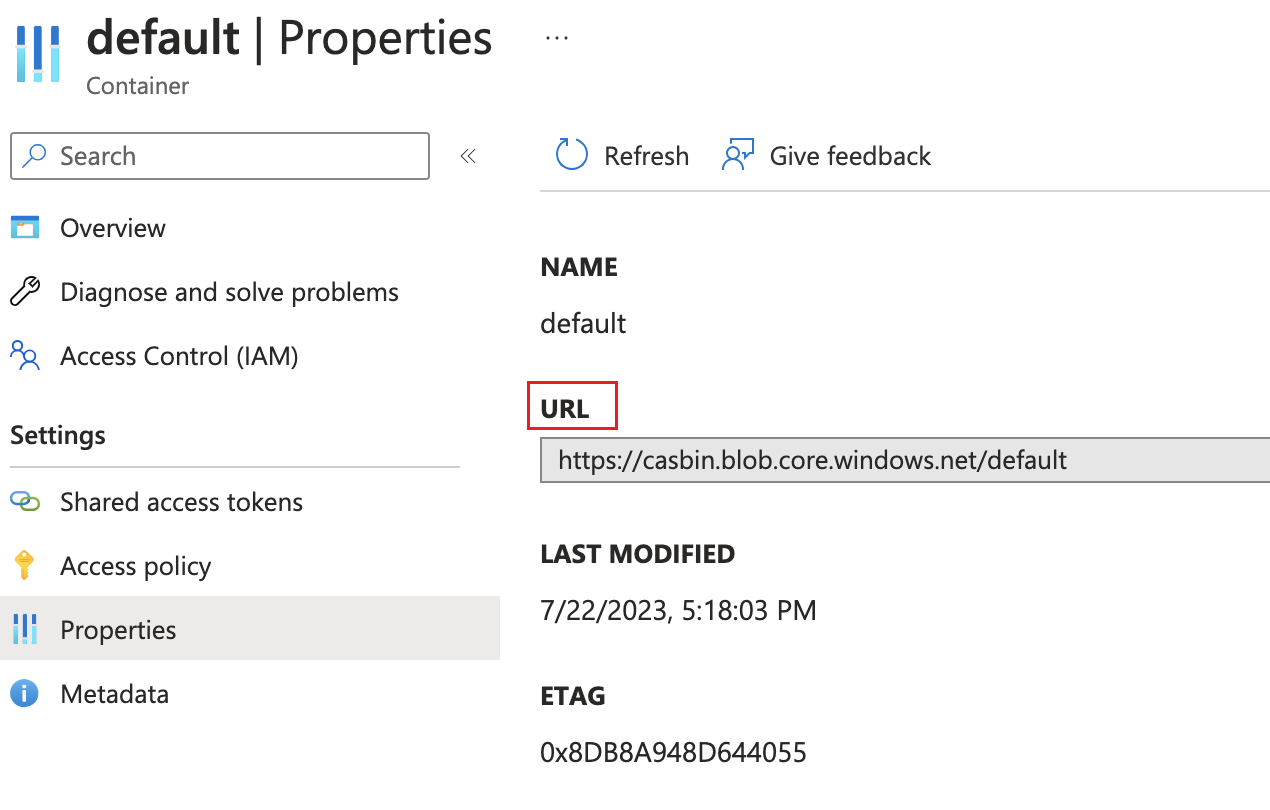

You can obtain the ContainerUrl from your container properties.


  • (Optional) PrivateEndpoint

Azure Private Endpoint is a feature that allows connecting Azure services to Azure Virtual Network (VNet) private subnets. You can refer to the official Azure documentation for configuration: private endpoint config

  • ContainerName

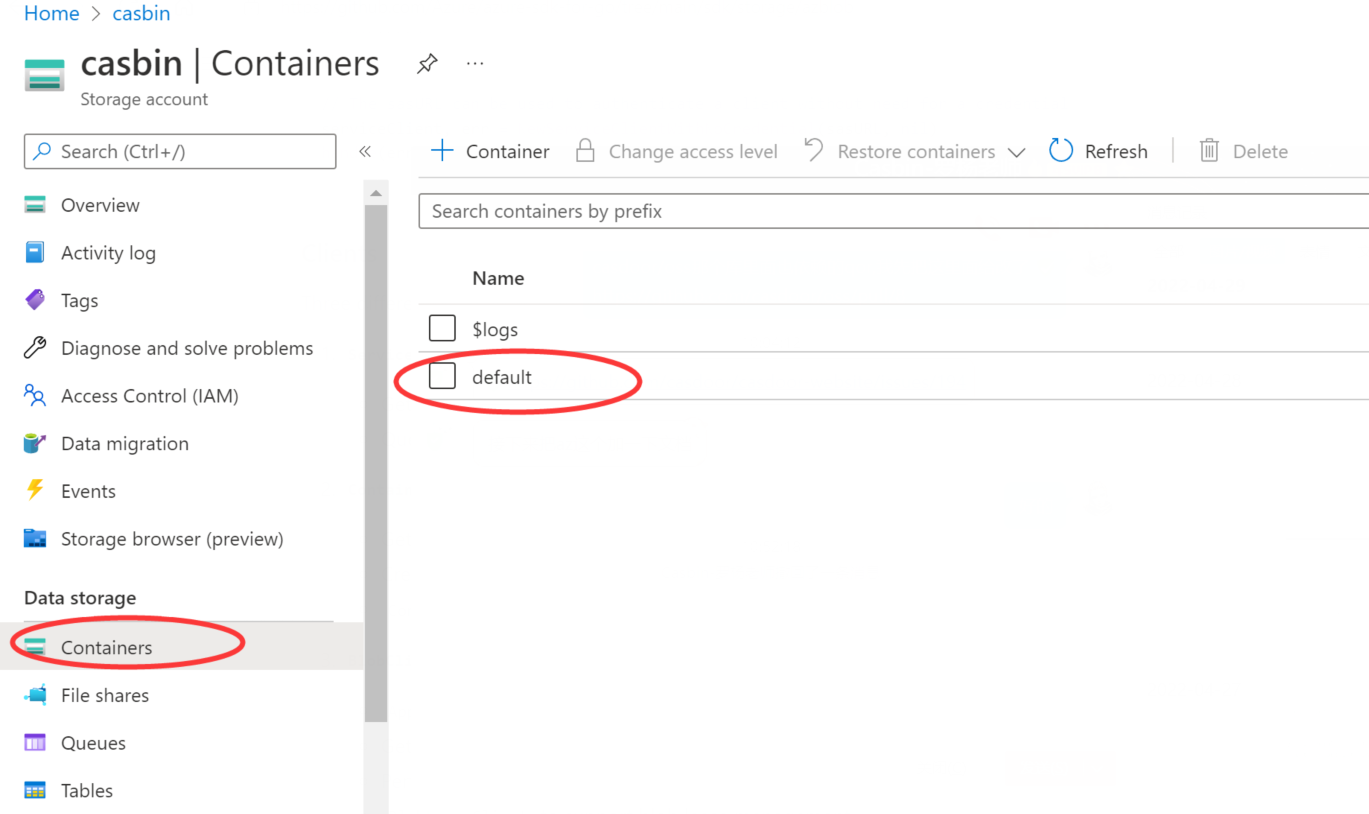

In this example, a default container called 'default' is created.


  • (Optional) DomainName

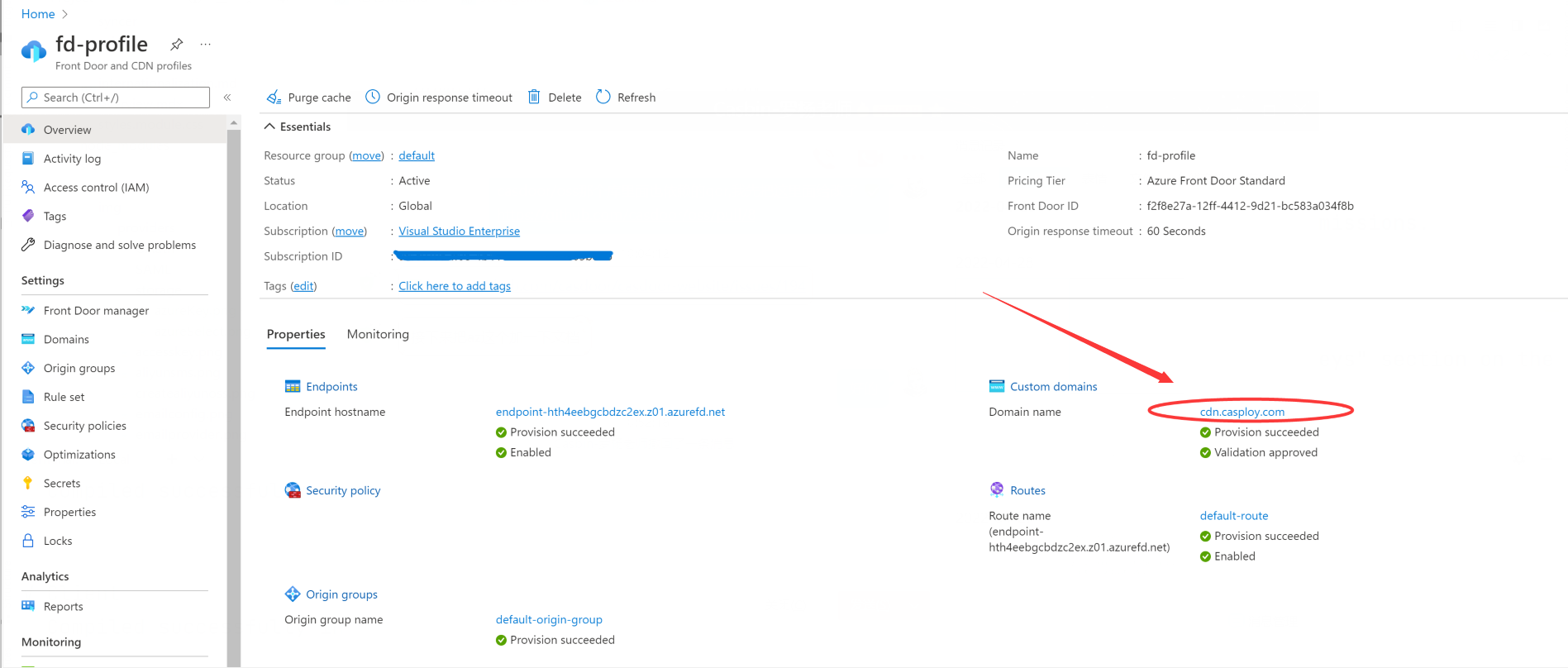

The custom domain name in your Azure CDN.


Step 3: Save your configuration

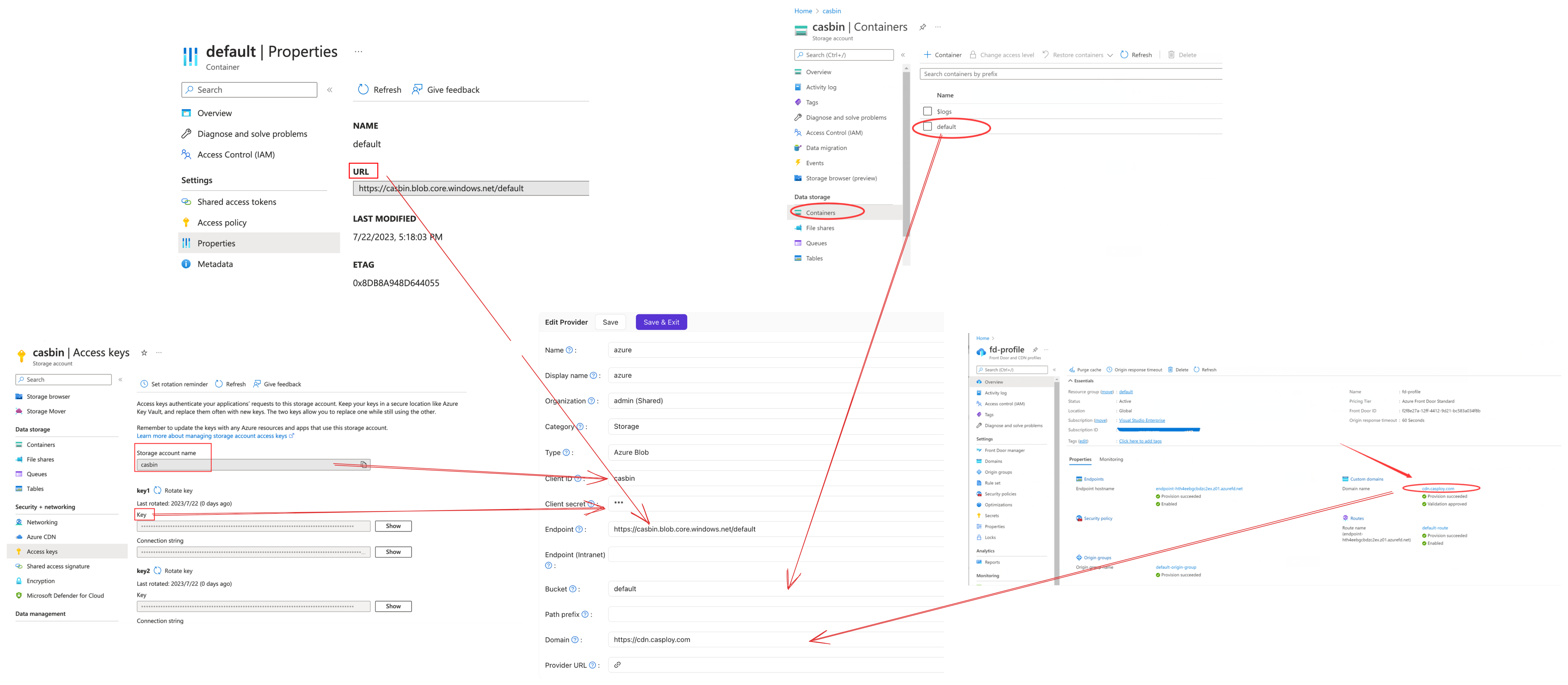

The final result is as follows:


Now you can use Azure Blob Storage services in your application.
