RuoYi

Casdoor can connect to RuoYi-cloud simplely

Step1. Deploy Casdoor

Firstly, the Casdoor should be deployed.

You can refer to the Casdoor official documentation for the Server Installation.

After a successful deployment, you need to ensure:

  • The Casdoor server is successfully running on http://localhost:8000.
  • Open your favorite browser and visit http://localhost:7001, you will see the login page of Casdoor.
  • Input admin and 123 to test login functionality is working fine.

Then you can quickly implement a casdoor based login page in your own app with the following steps.

Step2. Configure Casdoor

Configure casdoor can refer to casdoor(Configure casdoor's browser better not use one browser with your develop browser).

You also should configure organization, application, Synchronizer, you also can refer to casdoor.

Some points needing attention:

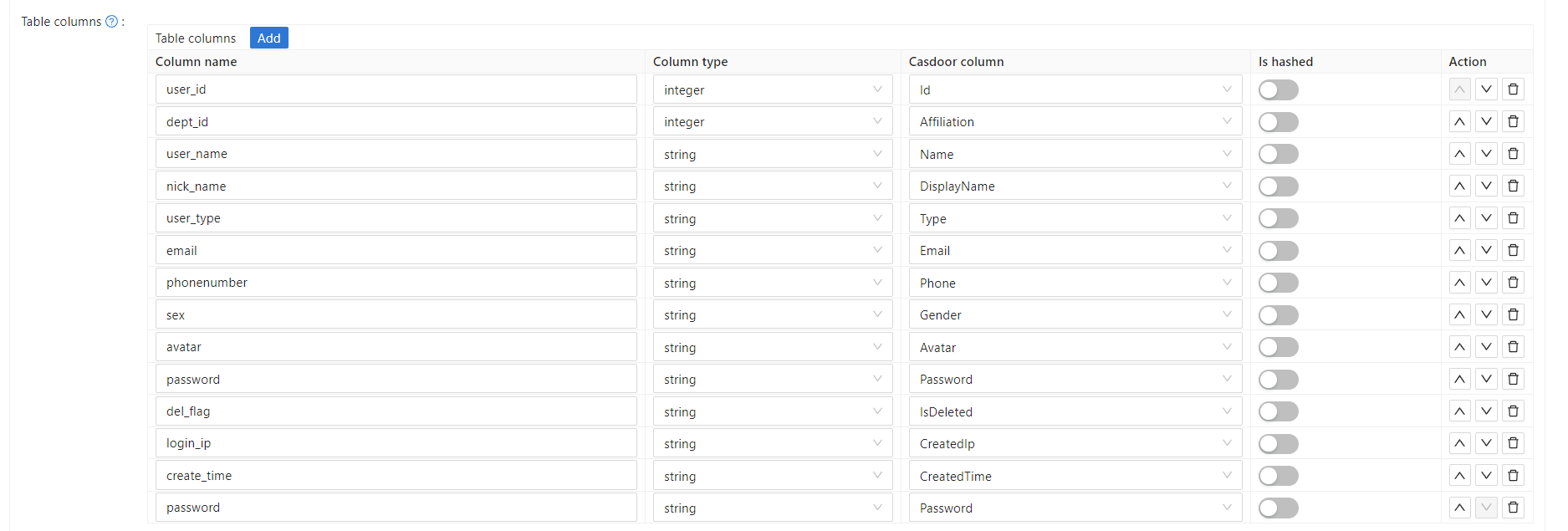

  1. The table columns in edit syncer: table colums

  2. The password type in edit organization: passwordType

  3. You also should open soft deletion.

Step3. Reform your front-end

3.1 jump to casdoor's login page

We can use front-end sdk, take vue-sdk as a exmaple here. After you init vue-sdk, you can get casdoor login page url by getSigninUrl().

You can link it with the way you like and you can delete some ruoyi-cloud original code which you have no further use such as original account and password el-input.

3.2 Accept the code and state which return by casdoor

After we login in by casdoor successful,casdoor send cade and state to the page which we set up. We can get code and state with function create.

created() {
let url = window.document.location.href//get url
let u = new URL(url);
this.loginForm.code = u.searchParams.get('code')//get code and state
this.loginForm.state = u.searchParams.get('state')
if(this.loginForm.code!=null&&this.loginForm.state!=null){//if code and state is null, execute handleLogin
this.handleLogin()
}
}

For RuoYi-Cloud, we just change its original method which send account and password to send code and state. So it relative to original login, it just change the thing which will send to back-end.

Step4. Reform your back-end

4.1 Accept the code and state which return by front-end

@PostMapping("login")
public R<?> callback(@RequestBody CodeBody code) {//we should define a CodeBody entity which have code and state
String token = casdoorAuthService.getOAuthToken(code.getCode(), code.getState());
CasdoorUser casdoorUser = casdoorAuthService.parseJwtToken(token);
if(casdoorUser.getName()!=null){
String casdoorUserName = casdoorUser.getName();
if(sysLoginService.getUserByCasdoorName(casdoorUserName)==null){//if database haven't this user
// add this user into database
sysLoginService.casdoorRegister(casdoorUserName);
}
}
LoginUser userInfo = sysLoginService.casdoorLogin(casdoorUser.getName());//get this user's information by database
return R.ok(tokenService.createToken(userInfo));
}

In this method, we use casdoor-SpringBoot-sdk method and slightly modified RuoYi-Cloud Method.

For exmaple RuoYi-Cloud original register with account and password, i change the register with account like casdoorRegister.

I also add a method to execute whether this account exists like getUserByCasdoorName and change execute userinfo with account and password to with account.

It's eazy, because we only need delete the part of checking password.

Step5. Summary

5.1 front-end

  • We need delete original login and register.
  • We also need accept code and state and send them to back-end.

5.2 back-end

RuoYi back-end have perfect login and register function. We just need change a little, so it is very convenient.

Step6. Detailed steps

  1. Deploy and configure casdoor.We must take care of organization's password type which should choose bcrypt because RuoYi-Cloud's password type is bcrypt.

  2. We should use casdoor syncers to copy database user to your casdoor organization. This step can make the original account import to casdoor.

  3. After we deployed casdoor, we should change front-end. We should close RuoYi check code checkcode Switch

    Note that RuoYi-Cloud checkcode needs close in nacos again. Note that RuoYi-Cloud open register function need change sys.account.registerUser to true.

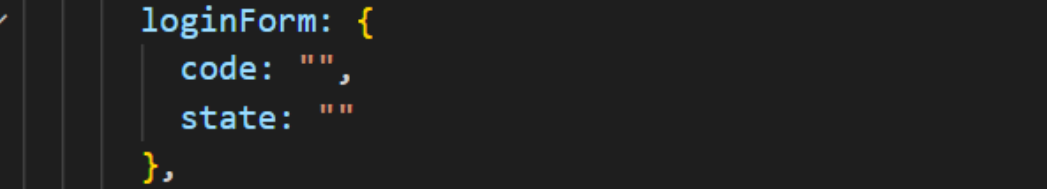

  4. We should add button jump to casdoor and change data's loginForm login button data loginForm Here i write url, you can get url by casdoor-vue-sdk or casdoor-SpringBoot-sdk.

  5. Because we don't use original login, we should delete the method about cookie and checkcode method.

    So the new create function:

created() {
let url = window.document.location.href//get url
let u = new URL(url);
this.loginForm.code = u.searchParams.get('code')//get code and state
this.loginForm.state = u.searchParams.get('state')
if(this.loginForm.code!=null&&this.loginForm.state!=null){//if code and state is null, execute handleLogin
this.handleLogin()
}
}

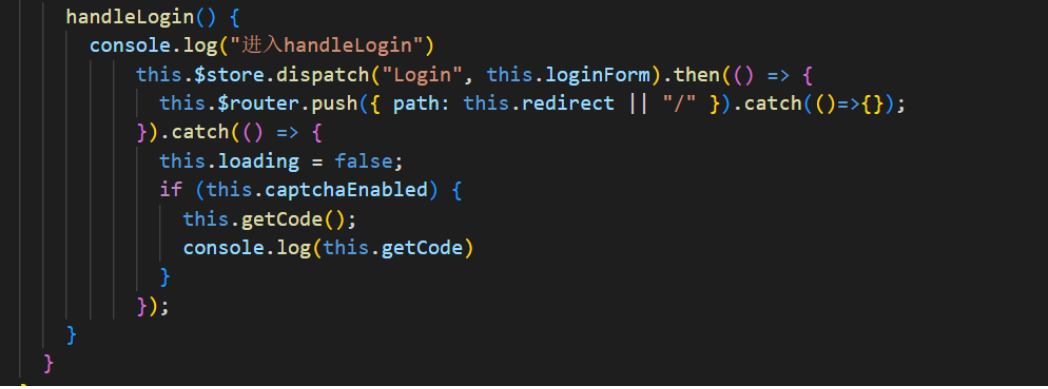

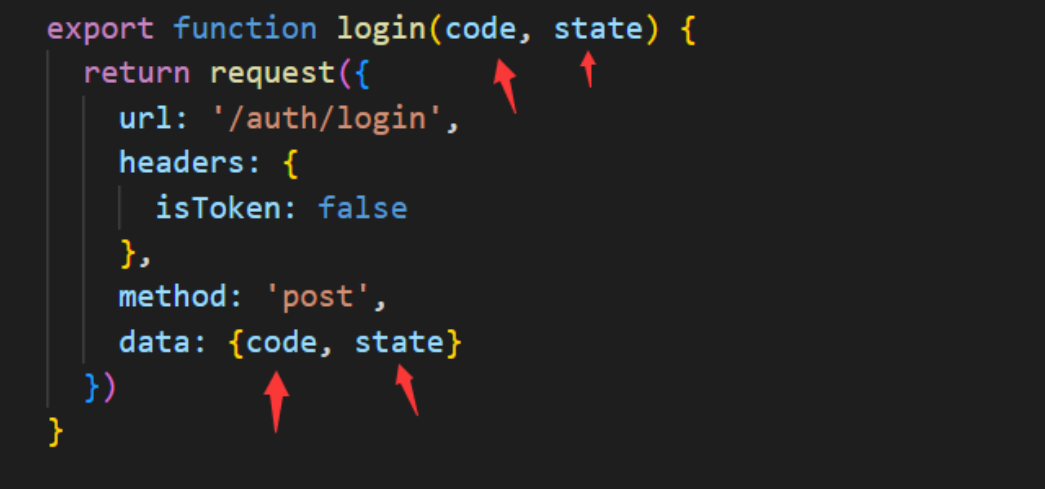

  1. In fact we just need change the parameter we send to back-end and delete the function we don't need, we don't change else. handleLoginLoginlogin
  2. Import dependency in back-end.
pom.xml
<dependency>
<groupId>org.casbin</groupId>
<artifactId>casdoor-spring-boot-starter</artifactId>
<version>1.2.0</version>
</dependency>

You also need configure casdoor in resource. 8. Callback function is defined as redirect function. I change some method in sysLoginService a little. I delete the check password step because we don't need it.

@PostMapping("login")
public R<?> callback(@RequestBody CodeBody code) {//we should define a CodeBody entity which have code and state
String token = casdoorAuthService.getOAuthToken(code.getCode(), code.getState());
CasdoorUser casdoorUser = casdoorAuthService.parseJwtToken(token);
if(casdoorUser.getName()!=null){
String casdoorUserName = casdoorUser.getName();
if(sysLoginService.getUserByCasdoorName(casdoorUserName)==null){//if database haven't this user
// add this user into database
sysLoginService.casdoorRegister(casdoorUserName);
}
}
LoginUser userInfo = sysLoginService.casdoorLogin(casdoorUser.getName());//get this user's information by database
return R.ok(tokenService.createToken(userInfo));
}
  1. SysLoginService's new method
public LoginUser casdoorLogin(String username){
// execute user
R<LoginUser> userResult = remoteUserService.getUserInfo(username, SecurityConstants.INNER);
if (R.FAIL == userResult.getCode())
{
throw new ServiceException(userResult.getMsg());
}

if (StringUtils.isNull(userResult) || StringUtils.isNull(userResult.getData()))
{
recordLogService.recordLogininfor(username, Constants.LOGIN_FAIL, "this user is not exist");
throw new ServiceException("user:" + username + " is not exist");
}
LoginUser userInfo = userResult.getData();
SysUser user = userResult.getData().getSysUser();
if (UserStatus.DELETED.getCode().equals(user.getDelFlag()))
{
recordLogService.recordLogininfor(username, Constants.LOGIN_FAIL, "sorry, your account was deleted");
throw new ServiceException("sorry, your account:" + username + " was deleted");
}
if (UserStatus.DISABLE.getCode().equals(user.getStatus()))
{
recordLogService.recordLogininfor(username, Constants.LOGIN_FAIL, "your account is disabled, you can contact admin ");
throw new ServiceException(sorry, your account:" + username + " is disabled");
}
recordLogService.recordLogininfor(username, Constants.LOGIN_SUCCESS, "login successfully");
return userInfo;
}
public String getUserByCasdoorName(String casdoorUsername){
R<LoginUser> userResult = remoteUserService.getUserInfo(casdoorUsername, SecurityConstants.INNER);
if (StringUtils.isNull(userResult) || StringUtils.isNull(userResult.getData()))
{
//if this user is not in RuoYi-Cloud database and casdoor have this user, we should create this user in database
return null;
}
String username = userResult.getData().getSysUser().getUserName();
return username;
}
public void casdoorRegister(String username){
if (StringUtils.isAnyBlank(username))
{
throw new ServiceException("User must fill in");
}
SysUser sysUser = new SysUser();
sysUser.setUserName(username);
sysUser.setNickName(username);
R<?> registerResult = remoteUserService.registerUserInfo(sysUser, SecurityConstants.INNER);
System.out.println(registerResult);
if (R.FAIL == registerResult.getCode())
{
throw new ServiceException(registerResult.getMsg());
}
recordLogService.recordLogininfor(username, Constants.REGISTER, "register successfully");
}
