Cloud Foundry

Before the integration, we need to deploy Casdoor locally.

Then, we can quickly implement a Casdoor-based login page in our own app with the following steps.

Step 1: Configure Casdoor application​

  1. Create or use an existing Casdoor application.

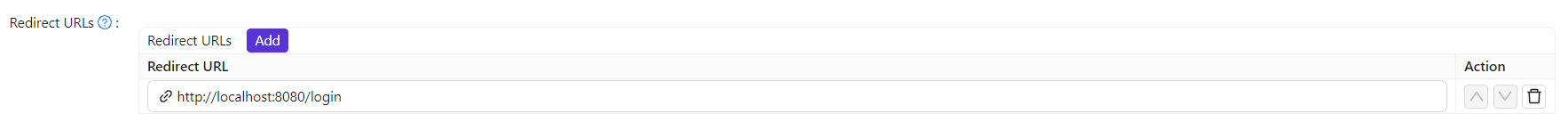

  2. Add a redirect URL: http://CASDOOR_HOSTNAME/loginCasdoor Application Setting
  3. Copy the client ID; we will need it in the following steps.

Step 2: Add a user in Casdoor​

Now that you have the application, but not a user, you need to create a user and assign the role.

Go to the "Users" page and click on "Add user" in the top-right corner. This opens a new page where you can add the new user.

Save the user after adding a username and the organization "Cloud Foundry" (other details are optional).

Now, you need to set up a password for your user, which you can do by clicking on "Manage your password".

Choose a password for your user and confirm it.

Step 3: Build the Cloud Foundry App​

Start the Cloud Foundry by following these steps.

  • $ git clone git://github.com/cloudfoundry/uaa.git
  • $ cd uaa
  • $ ./gradlew run Casdoor Application Setting

Step 4: Integrate Casdoor​

Now open another command line and input:

curl '<http://localhost/oauth/authorize?response_type=token&client_id=app&scope=openid&redirect_uri=http%3A%2F%2Flocalhost%3A8080%2Fapp%2F>' -i -X GET \
  -H 'Accept: application/x-www-form-urlencoded'

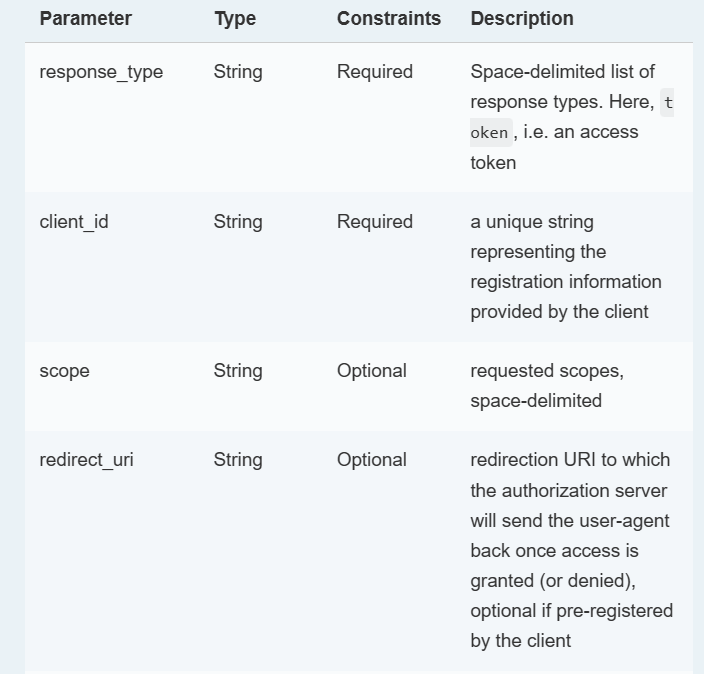

We have already obtained the client ID and redirect URI before; we input these parameters. Casdoor Application Setting

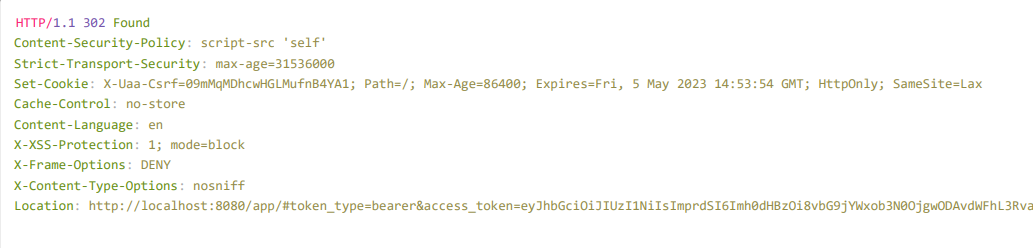

Execute the command, and we can get the result below, which means that we have successfully integrated Casdoor with Cloud Foundry. Casdoor Application Setting

Casdoor Application Setting
