shardingsphere-elasticjob-ui has integrated Casdoor. You can use it after configuring it.

Step 1: Deploy Casdoor

Firstly, Casdoor should be deployed.

You can refer to the Casdoor official documentation for the Server Installation.

After a successful deployment, make sure:

  • The Casdoor server is successfully running on http://localhost:8000.
  • Open your favorite browser and visit http://localhost:7001. You will see the login page of Casdoor.
  • Input admin and 123 to test if the login functionality is working fine.

Then, you can quickly implement a Casdoor-based login page in your own app with the following steps.

Step 2: Configure Casdoor application and configure application in ShardingSphere

  1. Create or use an existing Casdoor application img The RedirectURLs depend on the URL you need to redirect to. The selected data will be used in the next step.

  2. On the certificate editing page, you can see your Certificate


  3. Configure the application in ShardingSphere

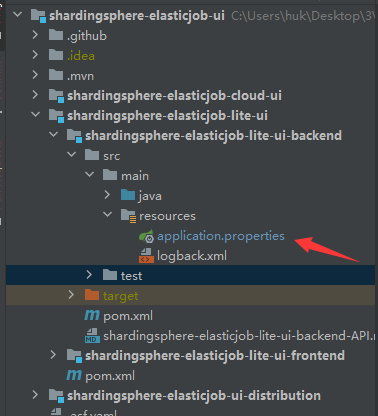

    First, we need to find the application.properties that we need to configure.

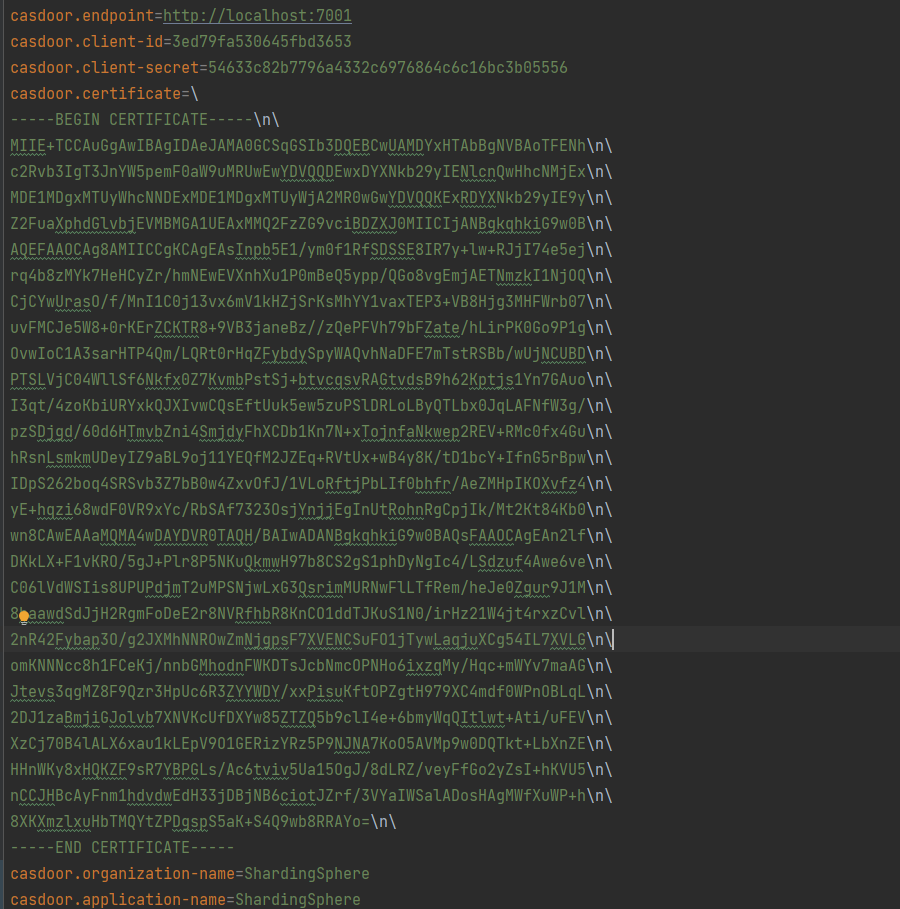

    Next, we need to copy the data from the Casdoor application and paste it into the application.


  4. Test it
